Press Up Desktop Socket (JS-220V)

Name: Press Up Desktop Socket (JS-220V)
Brand: china-manufacturer-directory.com
SKU: 666990515
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 47/Piece
Trade Terms:	FOB
Min Order:	60/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	JS-220V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Table Thickness:	60mm, 125mm With Extensive Bar
Model:	Js-220V
Cutout:	148*122mm, R=12
Operation Degree:	0~50 C Degree
Size:	157*131mm, R=16
Type:	Without Switch
Style:	Multiple Socket-outlet
Installation:	Table Socket

Product Description

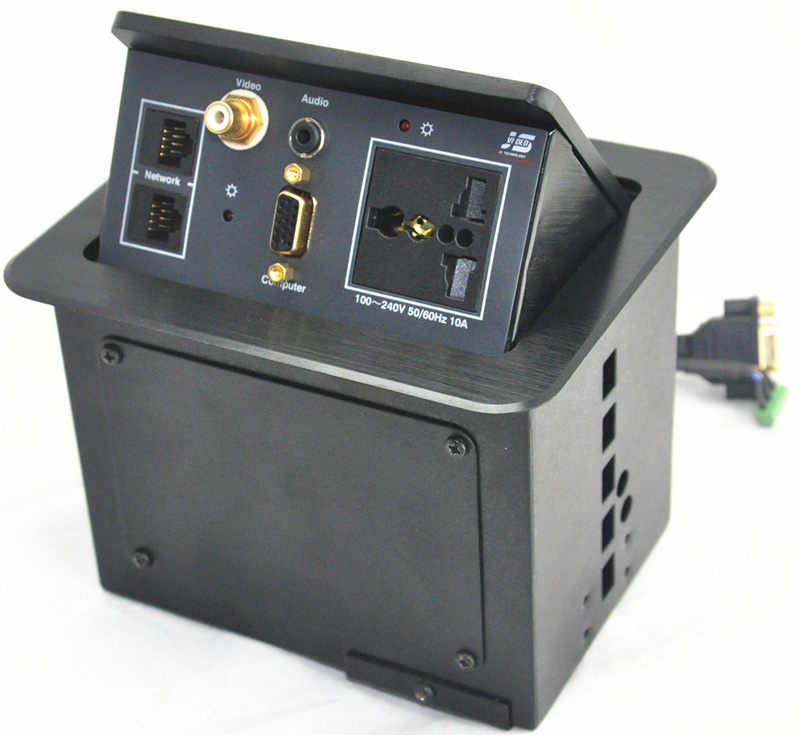

Press up desktop socket (JS-220V)

Ports detail:
1 gang universal power socket 100~240V, 50/60 Hz, 10A VAC power
1 gang 15 pin VGA computer socket
1 gang video socket
1 gang 3.5 F/M earphone socket
2 gang RJ45 (CAT. 5E) Network/phone/data socket

Interface Feature:
1. Connector into the direction of inclined.
2. Interface can be used in network/data/telephone connectors
3. It adopts pneumatic and mechanical locking mechanism design and it is durable.
4. The normal work environmental temperature is 0- 50 c degree
5. The panel adopts oxidation wiredrawing processing and it is high-grade and generous.
6. With power indicator and shockprove appliance.
7. Press up and tilt' 45 degree for easy connection.
8. With 1.7m cable and fix parts for easy assemble
9. UK, EU, SA, US, FR, AU standard power available

Other JS-2 serie's models pls check the following table:

Model	Interface
JS-220	2 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A
JS-220S	2 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A; 1 gang shift botton for switch
JS-220V	2 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A; 1 gang RCA Video socket
JS-220H	2 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A; 1 gang High-Definition Multimedia Interface (HDMI)
JS-221	1 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A; 1 gang USB socket 1 gang Shift botton for switch
JS-221-1	1 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A; 1 gang USB socket
JS-221V	1 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A; 1 gang USB socket 1 gang RCA for Vedio connection
JS-222	2 gang RJ45(CAT. 5E) Network/phone/data socket; 2 gang 100~240V universal AC power, 50/60 Hz, 10A;
JS-223	1 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A; 1 gang 3-core Micphone 1 gang Shift botton for switch
JS-224	1 gang RJ45(CAT. 5E) Network/phone/data socket; 1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 1 gang 100~240V universal AC power, 50/60 Hz, 10A; 1 gang DIN socket 1 gang Shift botton for switch
JS-225	1 gang 3.5 FM earphone socket; 1 gang 15 pin VGA computer socket; 2 gang 100~240V universal AC power, 50/60 Hz, 10A

Beijing JS Technology is professional producer of table socket and wall socket.

Originally established in 2005, base on a dream of supply best AV solution, with only 7 people working in a 90m2 office, JS start its way of search and development.

By now, JS become one of the outstanding producer supply data and power solution products, with about 60 employees, occupy 2000 m2, year output 10millon and established office in Guangzhou and Shanghai.

Now our products mainly covered 3 fields, power and data socket for conference and office, hotel and luxury resident use. Supply solution of tabletop, tableside and under table outlet solution, wall outlet solution, floor AV outlet solution.

From 2008, we start to export. In the past 3 years, we've exported to about 30 countries, such as India, Africa, England, Korea, and Saudi Arabia, and establish agent in South Africa.

On the growth road, user experience, R&D, quality play most important role. We dedicate to supply our customer best products for permanent solution.
