Product Specifications
| Prod Model: |
PY803 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
Digital |
| Application: |
Industrial |
| Structure: |
Bellows Pressure Gauge |
| Function: |
Electric Signal-controlled |
| Measuring Range: |
Optional |
| Accuracy: |
0.025%Fs,0.05%Fs,0.10%Fs and 0.20%Fs Optional |
| Connection Type: |
Optional |
| Indicating Pressure Reference: |
Gp,Cp,Ap or Dp Selectable |
Product Description

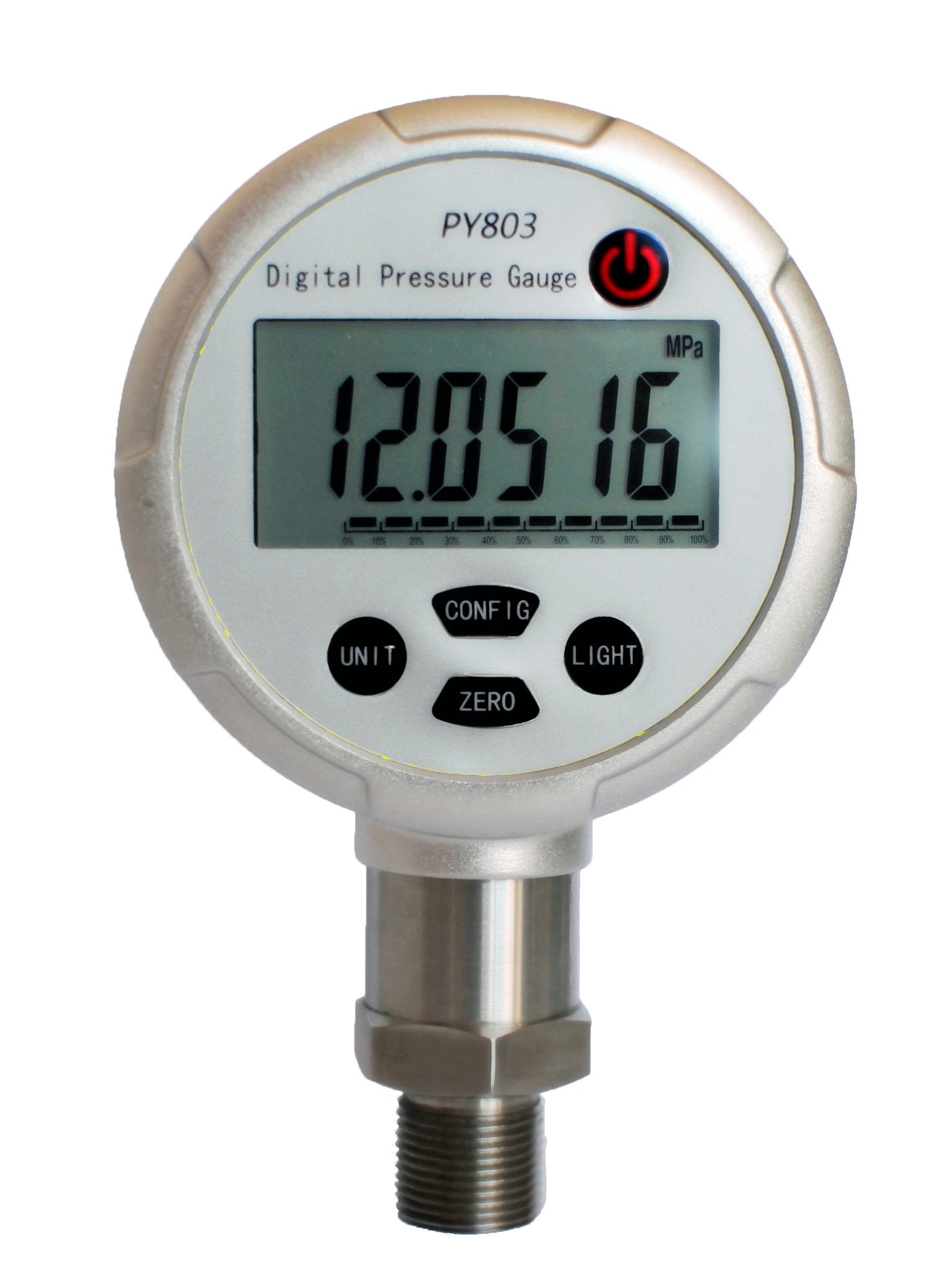

PY803 precision digital pressure gauge is suitable for field and laboratory pplication. It can be used for precision pressure measurement and field gauge calibration etc. PY803 is an ideal substitution for precision pointer pressure gauge.
Application:
Precision Pressure Measurement;
Field Gauge Calibration;
Blood-pressure meter Calibration;
Other Pressure Instrument Calibration;
Features:
High Accuracy, 0~50° C Temp Compensation;
Auto-zeroing;
Low Power Consumption, continuous working time up to 10000 hours
Under non-sleep mode;
Auto Peak Recording;
MmH2O\mmHg\inH2O\PA\ kPa\MPa\psi\bar\mbar engineering units
Available.
Measurement Speed:
Max: 3 readings per second (Default), lowest: 1 reading/10 seconds,
Speed adjustable.
Environmental:
Operating Range: (-20~70) ° C
Temp. Compensation: (0~50) ° C
Humidity: < 95%
Atmosphere Pressure: (86~106) kPa
Storage Temp.: (-40~85) ° C
Display:
5 Digit Backlit Display
Power Supply:
Built-in 3.6V lithium battery (or three AA alkaline batteries)
Working Time:
Measurement Speed 1reading/2seconds
Working Time 1 Year
Other Parameters:
Dimension: Head Ø 100mm× 37mm, Overall Height 132mm
Weight: Approx. 0.45KG
Pressure Connection: M20× 1.5
Communication: RS232
Gauge pressure
-100KPa to 0
0 to 40KPa
0 to 60KPa
0 to 100KPa
0 to 160KPa
0 to 250KPa
0 to 400KPa
0 to 600KPa
0 to 1MPa
0 to 1.6MPa
0 to 2.5MPa
0 to 4MPa
0 to 6MPa
0 to 10MPa
0 to 16MPa
0 to 25MPa
0 to 40MPa
0 to 60MPa
0 to 100MPa
0 to 160MPa
0 to 250MPa
Compound pressure
0.05%FS ± 40KPa
0.05%FS ± 60KPa
0.05%FS ± 100KPa
0.05%FS (-100 to 160)KPa (-1 to 1.6)bar (-750 to 1200)mmHg
0.05%FS (-100 to 250)KPa (-1 to 2.5)bar (-750 to 1875)mmHg
Burst pressure:
Vacuum pressure burst pressure is 3 X, < 100bar
0~60bar burst pressure is 3 X, < 100bar
0~100ba^0~700bar burst pressure is 3 X, < 1000bar
