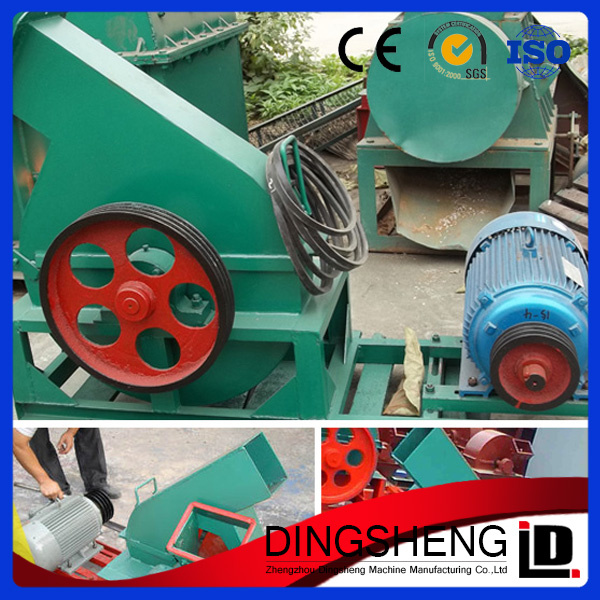

Disk-type wood chipper machine
Company information
Zhengzhou Dingsheng Machine Manufacturing Co., Ltd was established in 2002, the main business of which is engaged in wood shaving machine R&D, equipment manufacturing, installation commission and training services. We have our own manufacturing factory.With the innovation and optimization of the industry, we are marketing our products into international market, and the export business is expanding rapidly.
Product Description
Introduction of disk wood chipper machine :
wood chipper machine consists of disc and drun type. Disk wood chipper can be used to chip a lot of materials , like logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed and other non wood besides wood. you can adjust thethe length of the stalk according to your need. The machine is really an ideal choice for paper industry and plank industry.
Features of disk wood chipper machine:
1. To adjust the wood chipper machine to get different length wood chipper, according to different length requirments
2.Small land-using: Wood chipper machine has a compact and scientific design, it can save the working site.
Main parts of disk wood chipper machine:
The stand, feed port, cutter, casing, chipping blade and electronic component, the machine can to adjust the peel and cut blade according to your need, the production of different specifications and thickness of the chip.
Parameters of disk wood chipper machine
Model | Blades | Entrance dimension (mm) | Cutter diameter (mm) | Blades dimension (mm) | Capacity (t/h) | Speed of spindle(r/min) | Power (kw) | Dimension (mm) |
420 | 3 | 150*150 | 420 | 150*70*8 | 0.6-1.5 | 600 | 7.5 | 1200*500*800 |
600 | 3 | 180*150 | 600 | 200*100*10 | 1.5-3 | 600 | 15 | 1500*570*1050 |
700 | 3 | 190*200 | 650 | 230*120*12 | 2-6 | 600 | 18.5 | 1500*680*1100 |
800 | 4 | 200*200 | 735 | 230*120*12 | 3-8 | 550 | 30 | 1850*730*1240 |
950 | 4 | 230*250 | 830 | 250*120*12 | 5-10 | 550 | 37 | 1900*820*1500 |
1150 | 4-6 | 300*330 | 1150 | 340*150*14 | 8-13 | 600 | 75 | 2560*1150*1800 |
1410 | 4 | 400*400 | 1410 | 480*170*18 | 10-16 | 600 | 110 | 2900*1400*2350 |
