Price: | Negotiable/Set |
---|---|
Trade Terms: | FOB,EXW,CIF |
Min Order: | 150/Set |
Pay Type: | L/C,T/T,Western Union,Paypal |
1.UHF Band, Four Channel designed
2.Adopt the PLL Synthesized control technic, preset 200 non-interfered channels. 20 Mics. (5 Sets System) can be used simultaneously without interference
3.Transfer datas to transmitter by infrared. CPU control with LCD display makes operation easy and performance outstanding .
4. Audio compressing-expanding technology ,the machine can reduce the noises and increase the dynamic range.
5. Backsound restrain function can avoid backsound scream.
6.The receiver adopt multi-level high frequency enlargement .so and has the high sensitivity .
7.Multi-level noise supervisory circuit .Special with the tone locked system make the machine have a strong anti-jamming characteristics
8.Using high gain antenna, the space availability is more than 100 meters at the clearing.9.EIA standard 1U dual channel rack-mountable receiver with metal classics.

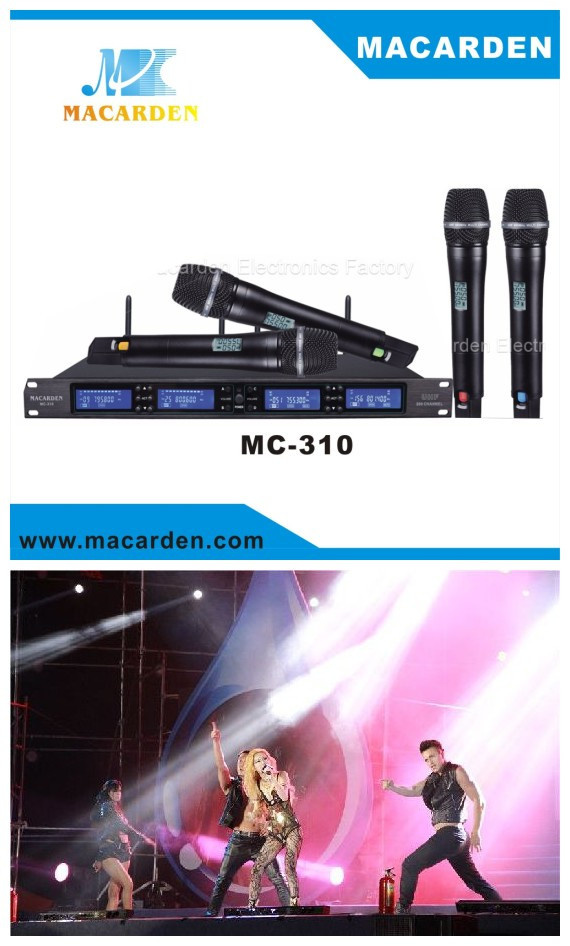

MC-310 RECEIVER
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
DC Power Supply: 1A 12~15V DC
Working Range: Up to 100m
Dimensions: 48X22X4.4cm
MC-310H HANDHELD TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Dynamic Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:27.5X5.2 cm
MC-310B BODYPACK TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions: 11X6.7 cm
Remarks:Refer to actual product in the event of product discrepancy,Frequency range and peak deviation comply with the regulations of different countries.
Prod Model: | MC-310 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Oscillation Mode: | Pll Synthesized |
Channels By Automatic Channels Targeting: | Multi Channels 200 |
Handheld Mic Color: | Black |
Working Range: | up to 100m |
Style: | Handheld Microphone |
Application: | Karaoke |
Sound Channel: | Mono |
Signal Transmission: | Wireless |
Wireless Technology: | UHF |
Directivity: | Uni-direction |
Transducer Principle: | Electrodynamic Microphone |
Output Impedance: | 50-1000Ω |
Sound Field Force: | Pressure Type |
Connector(',s): | XLR Mini |
