Product Specifications
| Prod Model: |
650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X Axis Travel: |
600 Mm |
| Y Axis Travel: |
500 Mm |
| Z Axis Travel: |
250 Mm |
| Spindle Taper: |
ISO025(Bt-30) |
| Spindle Speed: |
24000(30000) |
| Spindle Drive: |
Build in |
| Spindle Motor: |
4.5 (7.5) |
| Spindle Cooling: |
Oil Cooler |
| Floor Space(Lxwxh): |
1750 X2300 X 2450 |
| Machine Weight: |
2800 |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Open-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Processing Precision: |
0.001mm |
Product Description
Professional precision 24000/30000 rpm cnc machine tools

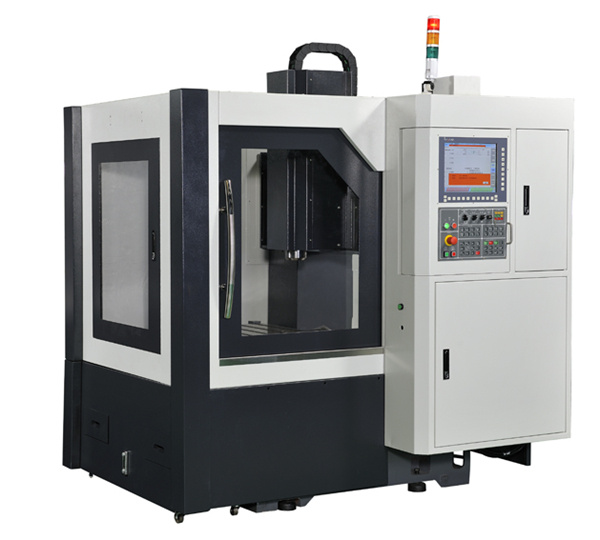

Unit Features of Engraving Machine/Graphite Milling Machine series:
1. The major structures are manufactured from Meehanite cast iron, stress relieved and combined with scientific rib reinforcement to ensure deformation-free operations.
2. Increase width on the column bottom with box-type structure provides maximum stability especially when performing high speed cutting.
3. Linear ways on three axes assure high feed rates and extremely smooth motion.
4. Extra wide span between linear ways greatly increases machine stability.
5. The structural parts are analyzed and designed by the advanced Finite Element Analysis. It provides a detailed analysis for structural stress/strain
Conditions, and ensures excellent machine rigidity and lifetime stability.
6. Linear guide ways:
The machine employs 45mm wide ball-type linear guide ways. (Optional)
7. Precision ball screw:
Three axes are transmitted by high precision C3 grade ball screws, preloaded, hardened and ground-assuring dependable feed accuracy.
8. Choice of 30, 000 rpm high speed spindles are designed for high speed machining requirement.
9. Extra wide column bottom and base ensure simplified machine structure for space saving.
10. The three axes ball screws are directly coupled to servos through backlash-free couplings. This ensures dependable positioning accuracy. High precision class C3 ball screws are preloaded to eliminate thermal strain.
| Model |
| CEM-650 |
| TRAVEL |
| LINEAR GUIDE WAY |
| X axis travel | mm | 600 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 250 |
| Distance from table surface to spindle nose | mm | 120-370 |
| TABLE |
|
|
| table area | mm | 600 x 500 |
| Max. load of table | kgs | 200 |
| T-slot | mm | 5 x 16 x 85 |
| SPINDLE |
| 24000 RPM Standard |
| Spindle taper |
| ISO025(BT-30) |
| Spindle speed | rpm | 24000(30000) |
| Spindle drive | type | Build in |
| Spindle motor | kw | 4.5 (7.5) |
| Spindle cooling |
| Oil cooler |
| FEED RATE |
|
|
| Rapid traverse(X, Y) | m/min | 24 |
| Rapid traverse(Z) | m/min | 24 |
| Cutting feed rate | mm/min | 1-7500 |
| 3 Axes motor output(X, Y, Z) | kw | 0.8kw |
| A. T. C. |
|
|
| Tool magazine capacity | pcs | 8 |
| Max. tool diameter | mm | 40 |
| Max. tool length | mm | 120 |
| Max. tool weight | mm | 3 |
| Tool selection | kgs | Fixed type |
| OTHER |
|
|
| Power consumption | KVA | 15 |
| Floor space(LxWxH) | mm | 1750 x2300 x 2450 |
| Machine weight | kgs | 2800
|
