Product Specifications
| Prod Model: |
QZYK137C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Cutting Positions: |
Over 10000 |
| Data Resolution: |
0.01mm |
| Classification: |
Single-blade Cutter |
| Driven Type: |
Hydraulic |
| Blade Material: |
Stainless Steel |
| Computerized: |
Computerized |
Product Description

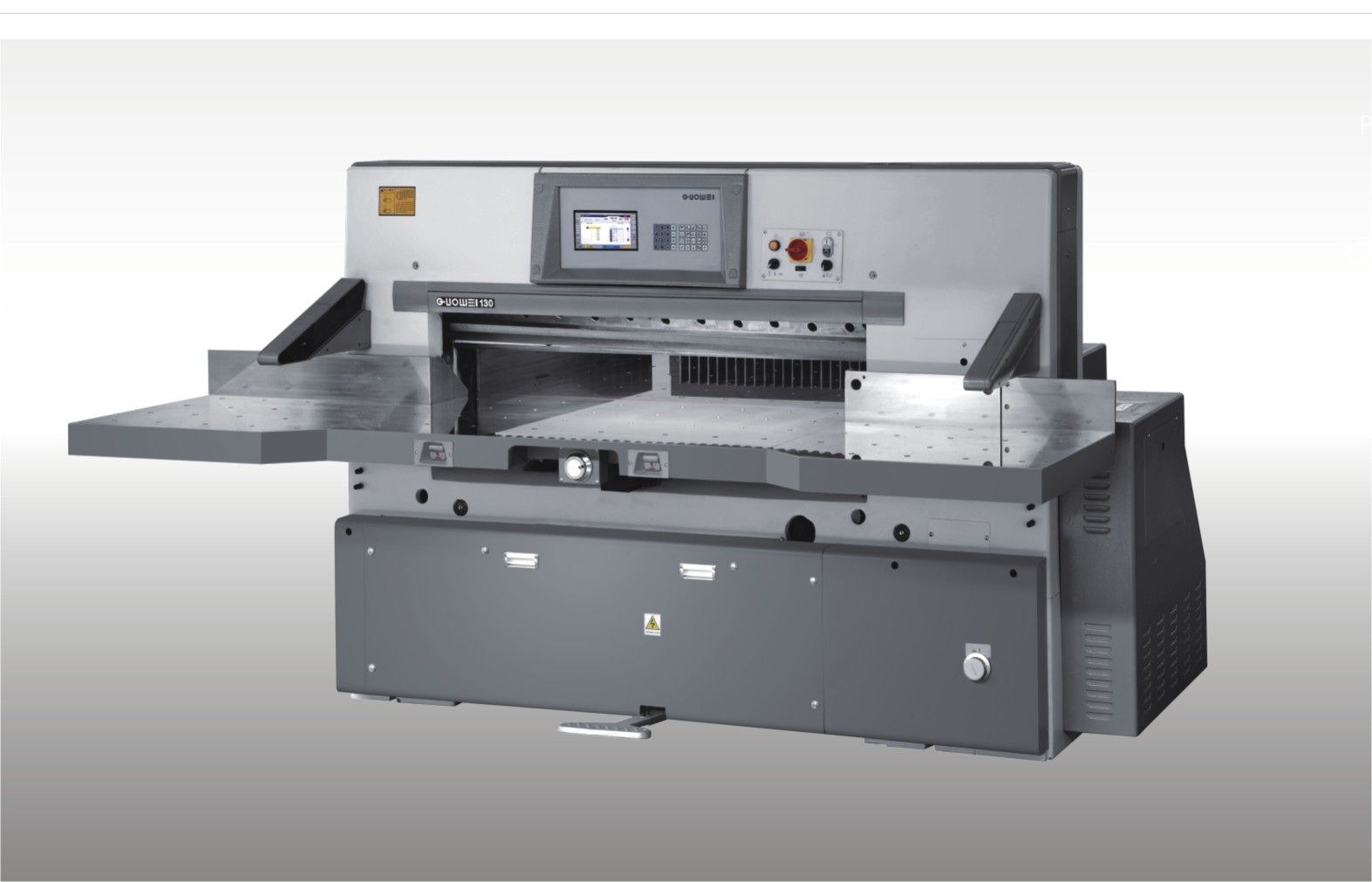

Program Control Paper Cutter
QZYK137C
Self-diagnostic function of troubles
Displaying the operating pattern
7 inches colorful touching screen
0.01mm data resolution rate
100 program units
max paper-pushing speed of 5-15m/min
Japanese hydraulic components
Electric components from France, Japan and Korea
Taiwan ball lead screw and linear guide rail
PLC control system for electric configuration
Imported bearing of loe maintenance
IR ray protective device
Button operated by two hands
Single circulation cutting device
|
|
| 92SG | 78 | 92 | 115 | 130 | 137 | 155 | 166 | 186 |
| Cutting width | L | in | 36.2″ | 30.7″ | 36.2″ | 45.3″ | 51.2″ | 54″ | 61″ | 65.4″ | 73.2″ |
| Max cutting height without assistance pressing plate | K | in | 4.3″ | 5.1″ | 5.1″ | 6.5″ | 5.1″ | 6.5″ | 6.5″ | 6.5″ | 6.5″ |
| Max cutting depth | D | in | 36.5″ | 30.7″ | 36.5″ | 45.3″ | 51.2″ | 57″ | 61″ | 65.4″ | 76.8″ |
| Min cutting depth without assistance pressing plate |
| in | 1″ | 1″ | 1″ | 1.2″ | 1.2″ | 1.2″ | 1.2″ | 1.2″ | 1.2″ |
| Extended length of working table | J | in | 25.6″ | 25.2″ | 25.6″ | 28.7″ | 28.7″ | 29.1″ | 29.5″ | 29.5″ | 29.5″ |
| Height of working table | G | in | 33.9″ | 34″ | 34″ | 35″ | 34″ | 35.5″ | 35.5″ | 35.5″ | 35.5″ |
| Machine width including side working table | A | in | 75.6″ | 84.6″ | 91.7″ | 104.7″ | 104.7″ | 113″ | 123.6″ | 126.8″ | 147.6″ |
| Total length of working table | F | in | 78″ | 70″ | 78″ | 89″ | 95″ | 102″ | 110.2″ | 111.7″ | 139.7″ |
| Cutting speed |
| r/min | 30 | 45 | 45 | 45 | 45 | 45 | 42 | 42 | 40 |
| Max paper pressure |
| N | 30000 | 30000 | 35000 | 40000 | 40000 | 45000 | 55000 | 60000 | 65000 |
| Power of main motor |
| Kw | 2.2 | 3 | 3 | 4 | 4 | 4 | 5.5 | 5.5 | 7.5 |
| Motor for paper feeding |
| Kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1 | 1 | 1 | 1 |
| Air pump |
| Kw | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 0.75*2 | 0.75*2 | 0.75*2 | 0.75*2 |
| Machine weight |
| Kg | 2200 | 2500 | 2700 | 4000 | 3900 | 4500 | 5200 | 5500 | 6800 |
| Overall dimension(L*W*H) |
| in | 90″*56″*73″ | 83″*56″*77″ | 89″*56″*77″ | 101″*63″*85″ | 101″*61″*77″ | 111″*63″*85″ | 117″*65″*85″ | 124″*63″*85″ | 134″*72″*91″ |
| Blade specifications(L*W*H) |
| in | 43.3″*5″*0.5″ | 37.8″*5″*0.5″ | 43.3″*5″*0.5″ | 54.7″*6.3″*0.54″ | 59.8″*5″*0.5″ | 63.2″*6.3″*0.54″ | 70.3″*6.3″*0.54″ | 75″*6.3″*0.54″ | 83.5″*6.3″*0.54″ |
We are sorry for not offering instant information about changes in technical parameters due to the improvements of machine.
We, Zhejiang Guowei Printing Machinery Co., Ltd., professionally manufacture "Guowei"brand micro-computer program-control paper cutter, Computer program-control paper cutter, hydraulic digital display paper cutter, well sell in Europe, North America, South America, Africa, Middle-East, South-East, Asia etc. And we have established long-terms business relationship with many printing trading companies and obtained good evaluation.
Our company cooperates with printing machinery department of Research College in Xi' An University of technology and sets up computer net administration of research, design, production, marketing and service, introduces advanced
International CNC vertical dingital-contmiller, CNC digital-control process equipments and advanced digital-control technology which makes us develop quickly. We completely have been certified by ISO9001: 2000 international quality system, and our products have been certified CE European committee safety standard. "Guowei" brand paper cutters are regarded as "Zhejiang quality credit products".
We stick to "quality for trust, trust for basis, administration for efficiency, and efficiency for development"as our company tenet, and further devote ourselves to product development, quality promotion and service perfection to provide better service for customers in domestic and from abroad. Zhejiang Guowei Company cordially would like to cooperate with all the customers to create a success together!
