Product Specifications
| Prod Model: |
TMV1580 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Performance Classification: |
Economical CNC Machine Tools |
| Numerical Control: |
CNC/MNC |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
Product Description
Programmed Machine Tools
？
I. Model

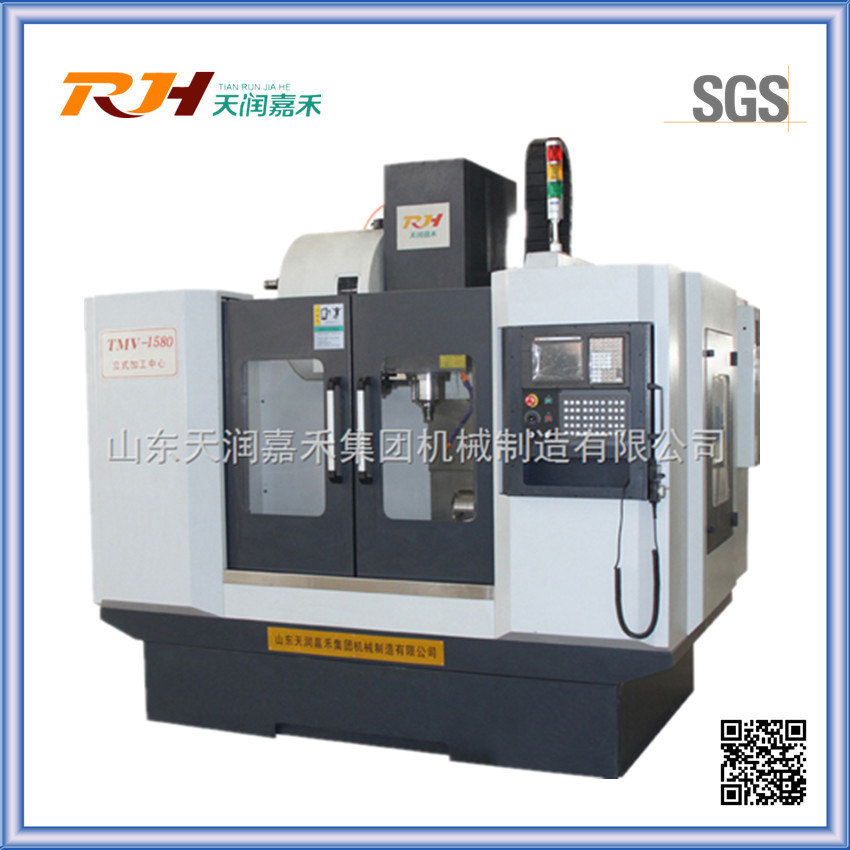

TMV1580
？
II. Type
Vertical Machining Center/CNC Machine/CNC Lathe
？
III. Application
The cnc machine could be applied for aerospace, automobile parts, mechanical working and mould making. The cnc machine could meet the demand from rough machining to fine machining, including various process such as milling, drilling, expanding, boring, cutting and rigid tapping etc which is suitable for mass production of small-size and middle-size parts. The cnc machine could be assembled with the 4th rotation axis to process special parts.
？
IV. Technical Parameters
As below Table
？
V. Main Structural Features
Single Column, Movable Table.
Composed of bed, column, horizontal slider, table, spindle, ball screw, lubricating system, cooling system, cnc operating board and electrical control system, etc
？
VI. Standard Configuration
1.？Control System: KND CNC System;？？？？？？？？？？？？？
2.？Spindle Motor: KND servo spindle motor
3.？Three-axis X/Y/Z driving motor: KND;？？？？？？？？？？？
4.？Three-axis X/Y/Z servo driver: KND (Z with band brakers)
5.？Spindle: Taiwan 8000rpm belt spindle;？？？？？？？？？？
6.？Ball Screw: Taiwan Hiwin precise ball screw, C3 level
7.？Taiwan disk-type tool magazine;？？？？？？？？？？？？？？？？？？
8.？Japanese NSK, P4 level
9. Heat Exchange Thermostatic System;？？？？？？？？
10.？Hand Held Type Electronic Vein
？
Optional Configuration
Taiwan Systec System,
Taiwan LNC System,
Japanese Mitsubishi System, Siemens,
Bamboo Hat Type Tool Magazine, 4th Axis, 5th Axis, OEM
？
VII. Certification
ISO9000/SGS (report available)
CE/FCC, etc acceptable based on customers' request
？
VIII. Main Markets
In 2013,
70% for domestic, abt. 300 sets/year,
30% for oversea, abt. 120 sets/year,
To Southeast Asia, South America, Middle East and Africa
？
IX. After-sales Service
24/7 be ready
？
X. Group Keywords
A group with 12 subsidiaries separately in 9 places
Thousands of members in all
Respect the spirit of unity, creativity and execution
Headquarter in Tengzhou City (cnc machine center) and Sales office in Qingdao City
Major in Real Estate and also engage in below business
1- Production and Sales of CNC Machine (most important)/WPC/Fertilizer
2- Import and Trading of Coal/Starch
？
XI. Plant/Office Show
？
XII. Package Show
1- Fixed inside with irons to guarantee the position of every component;
2- Covered by layers of plastic films
3- Fastened on the pallet
？
？
XIII. Customer Visit
？(Selected, copy or spread forbidden to protect our friends' right)
？
|
Main Technical Parameter of CNC Machine |
|
Item |
Unit |
TMV1580 |
|
Table size |
mm |
1700*800 |
|
Max. Table Loading-bearing Weight |
kg |
1500 |
|
X/Y/Z Travel |
mm |
1500x800x700 |
|
T Slot |
|
5-22x135 |
|
Distance from Spindle Nose to Table Surface |
mm |
170-870 |
|
Distance from Spindle Center to Column Guideways |
mm |
800 |
|
Quick Move Speed(X/Y) |
mm/min |
10000 |
|
Quick Move Speed(Z) |
mm/min |
8000 |
|
Cutting Feed Speed |
mm/min |
1-4000 |
|
Max. Spindle speed |
r/min |
8000 |
|
Spindle Servo Motor Power |
kw |
15/18 |
|
Spindle Taper |
|
BT50 |
|
Spindle Diameter |
mm |
155 |
|
Positioning Accuracy |
mm |
±0.01 |
|
Repeat Positioning accuracy |
mm |
±0.005 |
|
Overall Dimension(L*W*H) |
mm |
3760/2800/3350 |
