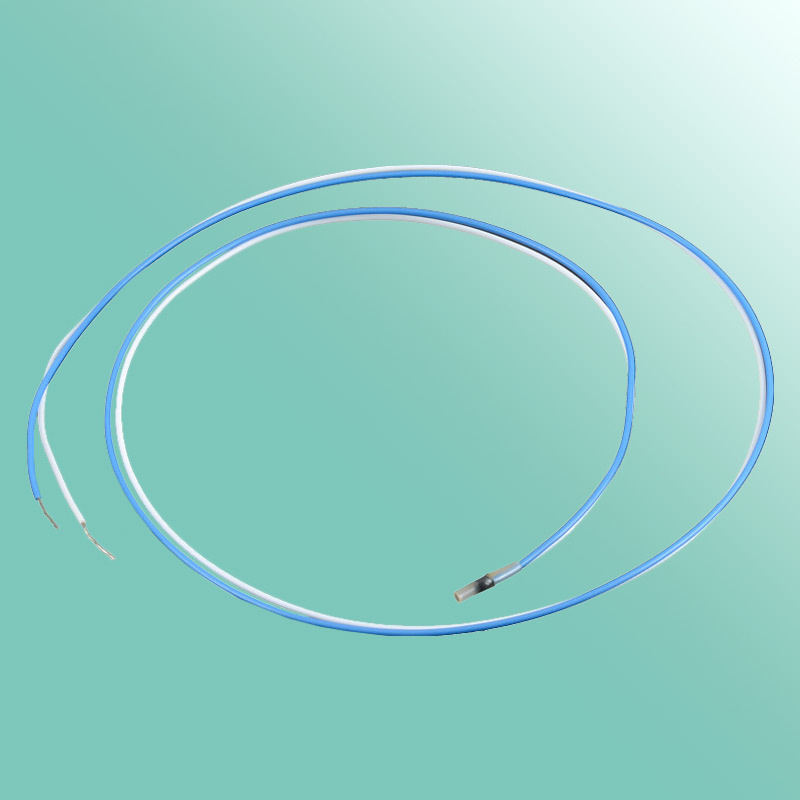

PTC Thermistor Temperature Sensor for Control Overheating Product

Name: PTC Thermistor Temperature Sensor for Control Overheating Product
Brand: china-manufacturer-directory.com
SKU: 678980781
Availability: InStock
Rating: 4.3 (46 reviews)

Price:	Negotiable/Piece
Trade Terms:	EXW
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Markets:	North America,South America,Eastern Europe,Africa,Mid East,Western Europe
Control Temperature:	60~180c

Product Description

Application:
The sensors can be widely used at those work sites which need overheat protection. When the sensors are fixed in those facilities that need overheat protection, they are able to keep the facilities from accidents and damages caused by overheating.

Features
The sensors are the special ones used for overheat alarm and protection. They are made from the advanced technology introduced from abroad. PTC temperature-controlled sensors are made of mini heat-variable resistors. They are of small size, endurance strength, good stability and excellent sensitiveness. All the technical criteria have reached the level of the same products in the world.

Usage
In operation, you may use one piece or several pieces connected in series, which can control the temperatures at different points and are good to reduce the cost.

Technical data
The controlled temperatures of the sensors range from TK60ºC to TK180ºCore. There is a 5ºC interval between the controlled-temperature TK according to the specification. We are able to make such sensors between one and six cores according to customers' requirements.

Size:

PTC Technical data		Single core PTC	Three Cores PTC in series	Unit
Max working voltage	Umax	25	25	V
Rated control temp.	Tk	60~180	60~180	ºC
Tk tolerance		±5	±5	ºC
Tk repetition	T	±0.5	±0.5	ºC
Normal Temp.resistance T=25ºC (U≤2.5V)	R25	≤100	≤300	Ω
PTC resistance (U≤2.5V)	Tk-5ºC	≤550	≤1650	Ω
PTC resistance (U≤2.5V)	Tk+5ºC	≥1330	≥4000	Ω
PTC resistance (U≤2.5V)	Tk+15ºC	≥4	≥12	KΩ
Tk control time	TD	<5	<5	S
Strength of electrical insulation	UIs	2.5	2.5	KV
Max. permissible storage temp.	TLmax	160	160	ºC
Min. permissible storage temp.	TLmin	-25	-25	ºC
Colour of lead wire	Reference the colour code
Weight	W+	2	3.5	g

Control temp & Colour code

Control Temp. Tk	60	70	80	90	100	105	110	115	120	125
Colour of lead wire	White	White	White	Green	Red	Orchid	Brown	Orchid	Gray	Red
Colour of lead wire	Gray	Brown	White	Green	Red	Gray	Brown	Green	Gray	Green
Control Temp. Tk	130	135	140	145	150	155	160	165	170	180
Colour of lead wire	Orchid	Red	White	White	Black	Orchid	Orchid	Orchid	White	White
Colour of lead wire	Orchid	Black	Orchid	Black	Black	Black	Red	Brown	Green	Red

Indication of type
MZ6 120 D S 500 200 200 500
MZ6 M Sensitive component Z Positive temperature coefficient 6 Temperature-controlled type
120 Temperature of the temperature-controlled point (TK)
D D 3-core Z 2-core E 1-core V 4-core S 6-core
S K The length of customers' special lead-out wire S Standard length of lead-out wire
500 200 200 500 Standard length of lead-out wire
Note: The above examples of type are for the sensors which have 3 cores, the standard length of lead-out wire and the controlled-point of temperature is 120ºC

Hengxin Precision Electrical Equipment Co., Ltd., is a manufacturer of thermal protectors, air discharge temperature controllers, automatic electrical controls for household and simmilar use.

Located in the city of Foshan, our manufacturing facility covers 5, 000 square meters, where we employ an experienced team of over 200 staff members. Moreover, we utilize advanced production machinery including state-of-the-art bimetal pressed technology and high precision thermal treatment equipment. Accordingly, our annual revenue reaches USD4, 200, 000.

With strong experience and a strict quality control system, our thermal protectors are some of the best in the industry. As such, we can provide a wide range of product specifications and gladly accept custom orders.

Accordingly, we have received several quality system and safety certifications including UL, C-UL, VDE and CQC certifications. As a result, our products have gained a strong reputation for reliability throughout many international markets.
