PTFE Solid Communication Coaxial Cable
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
3000/Meter |
Pay Type: |
L/C,T/T,Western Union |
Product Specifications
Prod Model: |
SFF-50-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Submarine Cable |
Type: |
Cat 1 |
Certification: |
VDE |
Conductor Material: |
Sc(Silverplated Copper) |
Cover Material: |
PTFE |
Product Description

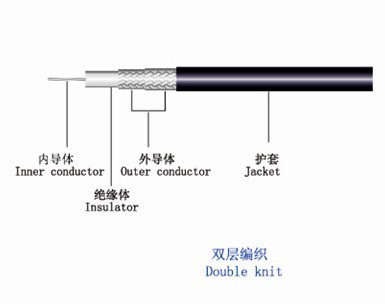

SFF-50-2 PTFE Solid communication coaxial cable
Technical Data:
1. Ambient temperature: -55° C~200° C (including temperature rise of cable work)
2. Relative humidity: At 40° C and up to 98%
3. Ratio: 0.7
4. Inner conductor: Silver-plated copper or Silver-plated copper clad steel wire
5. Outer conductor: Silver-plated copper
6. Insulation: PTFE
7. Jacket: FEP
8. Application and features: This is a for fixed or mobile radio equipment cables, with small, light weight, good flexibility, heat resistance, moisture resistance, corrosion resistance and non-flammable and so on.
9. Executive Standard: SJ1563-80Specification:Type | SFF-50-2-1 |
Inner conductor number/diameter (mm) | 1/0.73 |
Nominal insulation OD (mm) | 2.20 |
Outer conductor | Single-layer weave |
Nominal jacket OD (mm) | 3.30 |
Nominal Feature Impedance (Ω) | 50 |
Attenuation constant ≤ dB/m | 30MHz | 0.12 |
200MHz | 0.31 |
3000MHz | 1.27 |
Test voltage | 3.0 |
SFF-50-2-2
Type | SFF-50-2-2 |
Inner conductor number/diameter (mm) | 1/0.73 |
Nominal insulation OD (mm) | 2.20 |
Outer conductor | Double knit |
Nominal jacket OD (mm) | 4.00 |
Nominal Feature Impedance (Ω) | 50 |
Attenuation constant ≤ dB/m | 30MHz | 0.12 |
200MHz | 0.31 |
3000MHz | 1.27 |
Test voltage | 3.0 |
Our main products are as follows:Automotive cable that meet the national standard, Japanese standard, American standard, German standard, France and other countries' standards, etc.. Coaxial cables that are widely used in various fields of communication systems. Cables that suitable for motor, railway, urban rail and rolling stock. Electronic cable and sleeves that widely used in electronics, electrical appliances, household appliances instruments etc.. Cables used in special fields like photovoltaic, nuclear power, aviation and ships. Our products involved in cross-industry, many fields. Our main customers are as follows:Shanghai Sanzhi, Delphi, Lear-stec and Continental-corporation that matching Ashkenazi vehicle; THB Group and Ingersoll Rand eytc. ewire harness corporation that matching European and American vehicle; as well as Dell, Lenovo, Huawei and other matching communication cable customers and Panasonic, Siemens, Midea, Gree and other electronic cable customers.If you are interested in our products, please contact with us!
Wuxi Yuanda Electrical Material Co., Ltd. (Jiangyin Yuanda Electric Material Co., Ltd) is a Chinese manufacturer of various kinds of cables including car cables, coaxial cables for communications, high-temperature cables applicable to household appliances, electric machines, transformers and lightings, silicon rubber cables, teflon insulated cables, PE and PVC cables, high-temperature tubes/sleeves as well as other silicon rubber items.
