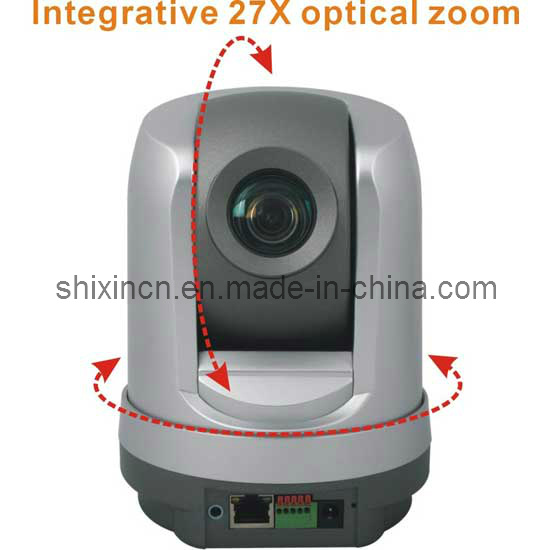

PTZ IP Camera with H. 264 27X Optical Zoom Poe Function High Speed Dome Camera (IP-109HP)

Name: PTZ IP Camera with H. 264 27X Optical Zoom Poe Function High Speed Dome Camera (IP-109HP)
Brand: china-manufacturer-directory.com
SKU: 702770705
Availability: InStock
Rating: 4.9 (71 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

PTZ IP Camera with H. 264 27X Optical Zoom Poe Function high speed dome camera (IP-109HP)
Zoom: F=3.2- 86.4mm, 27X Optical Zoom
Pan: 355° , Tilt: 100°
1/4" Sony CCD 420TVL H. 264 compression
DI: 720x576 half-D1(576*354) CIF: 352x288 QCIF: 176x144
Built-in POE function(Power Over Ethernet)
Two channel audio: Built-in microphone and you can also connect to pickup
1CH alarm input, 1CH output Alarm
10/100M BPS high-speed Ethernet automatic detection
Motion detection, can be set to the e-mail notify or transmit images to FTP
No need to install this camera near a power source, power and data are received through a single Ethernet Cable

Serial no.	type	specification
27X all-in-one camera	Image Sensor	1/3 SONY CCD, 420TVL
	focus	3.2 - 86.4mm
	Min. illumination	0.1LUX / F1.2
Video	Compressed format	H.264
	Resolution	D1(720×576) Half-D1(576×354) CIF(352×288) QCIF(176×144)
	Max frames per second	30fps@D1(NTSC) 25fps@D1(PAL)
Audio	Audio encoding format	G.711 ADPCM
Audio	Microphone	Built-in microphone,and you can also connect to pickup
Software	WEB IE Browser	IE 6.0 or higher
Software	Security	Password protection, 3 levels visitors
Hardware	CPU	32 Bit ARM9 RISC Core
	Operate System	Embedded eCos system
	DDR	256M
	Flash memory	32M
Internet	Net port	10/100M Ethernet Port (RJ45)
Internet	Net protocol	TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP.UPNP.DDNS.SMTP.NTP.TFTP
Outside port	GPIO port	1ch input alarm, 1ch output alarm
	RS-485	Yes
	SD Card	Support
	Video port	1ch output video(Multiple video format NTSC/PAL)
	Audio port	1ch input audio
PTZ	Visual angle	Pan: 355° , Tilt: 100°
	Rotation speed	12°/s
	Settings	Built-in decoder board and protocol, no need to dial code again which means you can use directly
Function	OSD	support
	DDNS	Have professional Viewipcam.net and many other international famous server for your choosing
	User management	Administrator, common user, anonymous user.(Max. viewer: 10)
	video adjustment	brightness, contrast and saturation
	Bandwidth	By adjusting the compression, frame and resolution, it can be used to different bandwidth
	Motion detection	Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like
General	Power supply	Input AC 100-240 V 50/60Hz Output DC 12V/1.5A
	Work Environment	Temperature: -10ºC~55ºC Humidity: 0%~80%RHG
	Power	8.5W
	Dimension	166mm(L) X142mm(W) X170mm(H)
	Weight	1.0Kg

Prod Model:	IP-109HP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Special Technology:	Poe
Type:	IP Camera
Sensor:	CCD
Speed:	Medium-speed Dome
Technology:	Pan / Tilt / Zoom
Feature:	Auto BLC
Effective Distance:	≧30m
Focal Length:	Zoom Lens
