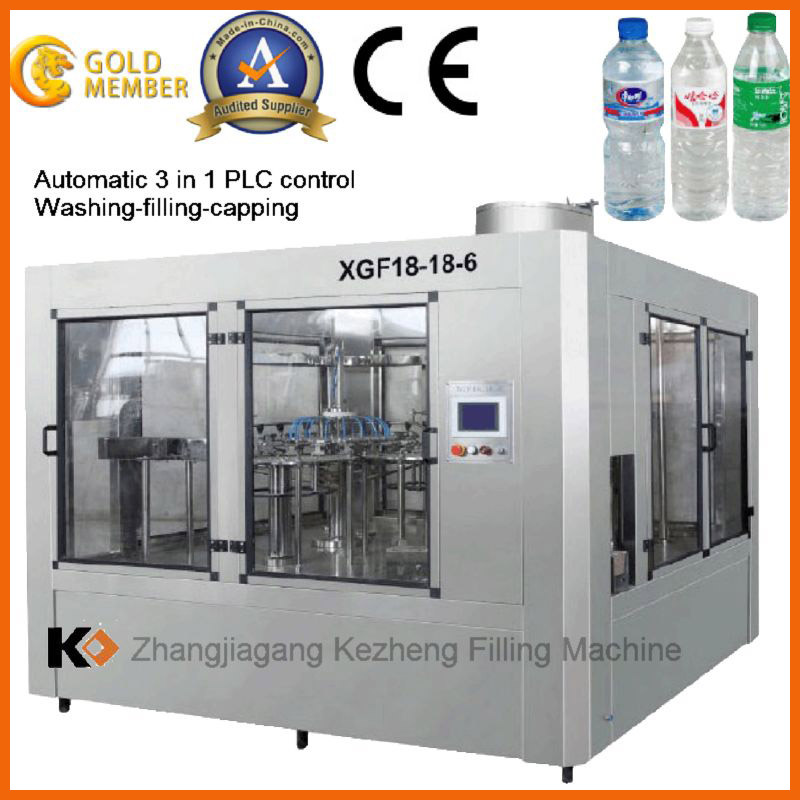

Pure/Mineral Processing Machine for Pet Bottles
Price: |
US $ 19800-100000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
Product Specifications
Prod Model: |
XGF18-18-6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Machine Structures: |
3-in-1 |
Capacity: |
4000bottles/Hour-34000bottles/Hour |
Bottle Height: |
150mm-320mm |
Bottle Neck Diamater: |
20mm-30mm |
Operation Panel: |
PLC Control |
Automatic: |
Full Autoatic |
Auxiliary Machines: |
Air Compressor,Bottle Unscrambler,Cap Loader etc |
Filling Temperature: |
Normal Temperature |
Materials: |
Enough Thickness Stainless Steel |
Important Parts: |
World's Famous Brands |
Automatic Grade: |
Automatic |
Filling Principle: |
Atmospheric Pressure |
Structure: |
Rotary |
Feed Cylinder Structure: |
Multi-Room Feeding |
Material Type: |
Liquid |
Type: |
Volumetric Filling Machine |
Filling Valve Head: |
Multi-Head |
Packaging Container Lifting Structure: |
Pneumatic Lifting |
Packaging Type: |
Bottle |
Dosing Device: |
Surface Type |
Packaging Material: |
Plastic |
Product Description
Main Introductions:XGF Series Washing-Filling-Capping (Three-in-One) Unit made by our company is a new product which is researched and developed on the base of importing ,assimilating and absorbing the advanced technology of the same kind of domestic and foreign products,Combining several-year-production experience of the company. The unit collects washing, filling and capping together. It is driven by a transmission motor.
Advantages:
1. high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. It is an ideal no-gas liquid filling production equipment in the country.
Main Usage:
It is mainly suitable for filling and capping of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user's demands.
Main Technological Parameters:
1.Production Capacity & Head Quantity:
Production Capacity: 6000~7000bottles/h;
Washing Head Quantity: 18;
Filling Valve Quantity: 18;
Capping Head Quantity: 6- Filling Condition:
Filling Temperature: Normal temperature;
Filling Type: Constant Pressure Filling;- Consumption:
Power: Main Motor: 3KW
Ordering-Cap Motor: 0.09KW
Cap Elevating Motor: 0.34KW
Washing Pump: 0.37KW
Liquid Inlet Pump:0.55KW
Air Convey Motor: 1.1KW
Reflux Pump: 0.37KW
Water: 1.2T/h ( Un-including drink water)- Main Size:
Central Diameter of Filling Valve: ¢720mm;
Central Diameter of Capping Machine:¢240mm;
Central Diameter of Washing Machine:¢720mm- Outside Size & Weight of Main Machine
Whole Length: 2540mm;
Whole Width: 1970mm;
Whole Height: 2300mm;
Net Weight: 3500kg
Important Parts for 3-in-1 Unit: S/N | PARTS | BRANDS |
1 | Transducer | Mitsubishi |
2 | Main electric appliances | Siemens (China) company |
3 | PLC | Mitsubishi |
4 | Contactor | Siemens (China) company |
5 | Sensor | Korean AUTONICS |
6 | Approaching switch | Korean AUTONICS |
7 | Fiber switch | Korean AUTONICS |
8 | Pneumatic component | AIRTAC in Taiwan
|
9 | Touch Screen | Xinjie in Taiwan |
10 | Decelerating machine | TianYu in Hangzhou |
11 | Main Motor | Liduo in Suzhou |

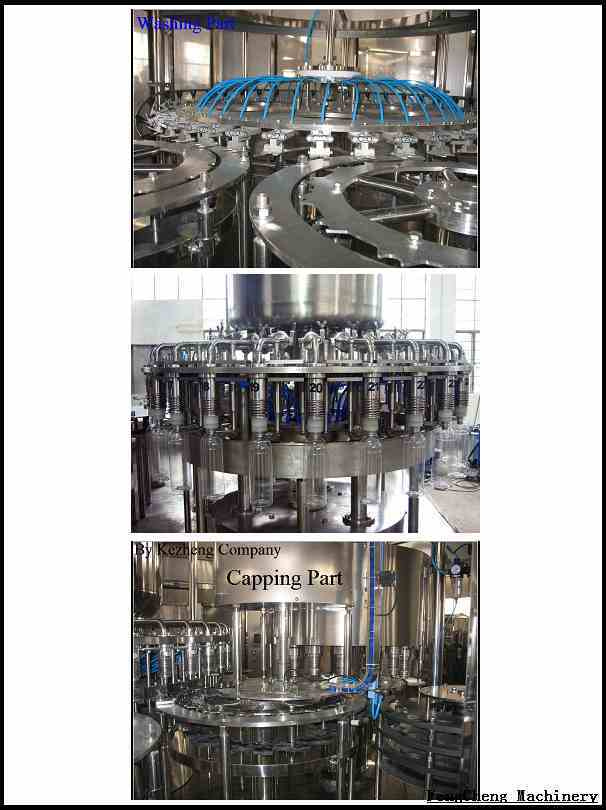

Photos for details and Packages:
Zhangjiagang Fengcheng Machinery Manufacturing Co., Ltd. Deals in importing and exporting Machinery. Our company is located in the famous economy booming, culture rich and cleanest city - Zhangjiagang, eastern littoral of China, which links to Shanghai in the east, Suzhou, Wuxi and Changzhou in the west and south. It is convenient in water and road transportation.
We have the first class developing and design system and richly experienced technicians. We mainly manufacture Single/Double plastic extruders, the whole production lines for HDPE silicon core pipes, PPR pipes, lacunars pipes and multiunit tubes, Double plastic extrusion pipes, tubes production lines, prilling production lines, thermostat cooling and dry lines, loading materials machines, grinder and breakers lines, compounding mixing lines, water temperature controlling systems for forming plants, dehumidifying and dry lines and other auxiliary devices. We also domestic and overseas the turnkey projects for various plastic machines.
We are sincerely providing customers automatic washing, filling and sealing assembly production lines for purified water, spring water, fruit juice drink, lactic acid drink, gas containing drink, wine, flavoring and strong tea drink. We also provide the while set water treatment production lines for automatic washing, filling, and sealing for barrel drinking water. We can meet customers' special needs to make beverage machinery within their different production conditions and capability. With excellent performance, good service and advanced technology of the world, our products are delivered to every part at home and abroad. They are fully trusted by customers.
The main objective of our company is to supply first class quality goods. We will apply ourselves to produce suitable machine matched with different requirements for customers, with our rich technology and advanced processing techniques.
During development, our company insists on the management principle of people oriented, market competition is people competition and focusing on training employees' skill and strengthening their principle of service. We are adhering to the tenet of setting up a good working condition for employees who can develop our company.
We seriously promise to provide high quality goods, professional service and advanced technology to all of our customers. Our company would like to establish windowing cooperative relationship and get bright future with worldwide friends on the basis of mutual benefits.
As we have different series machines, we export all machines under Zhangjiagang Kezehng Trading Co., Ltd company ahead. We are the same company, please kindly note.
