Price: | US $ 0.1-2.23/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal,Money Gram,Western Union |
Prod Model: | HBGQ16F-10D/J/N, HBGQ16F-10D/J/S |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item No.: | Hbgq16f-10d/J/N,Hbgq16f-10d/J/S |
Switch Rating: | 2A/36VDC |
Contact Configuration: | 1no(1nc Can Be Custom Made) |
Operation Type: | Momentary |
The Front Shape: | Flat Round |
The Crust Meterial: | Nickel-Plated Brass,Stainless Steel |
Protection Degree: | IP65,Ik08 |
Manufacturer: | Yes |
Original: | Zhejiang,China |
Usage: | Check Button |
Kind: | Single-pole on-off Switch |
Type: | Normal Open |
Brand: | Hban |
Certification: | ISO90001,CE,RoHS,CCC |
Contact Type: | Type X |

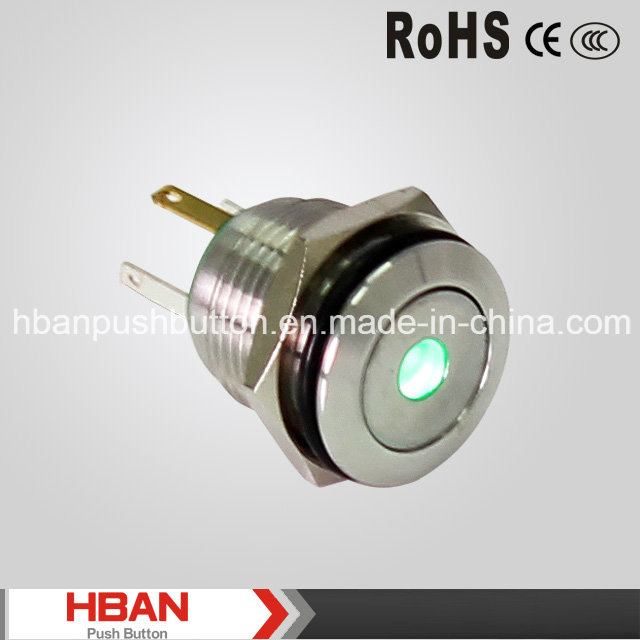

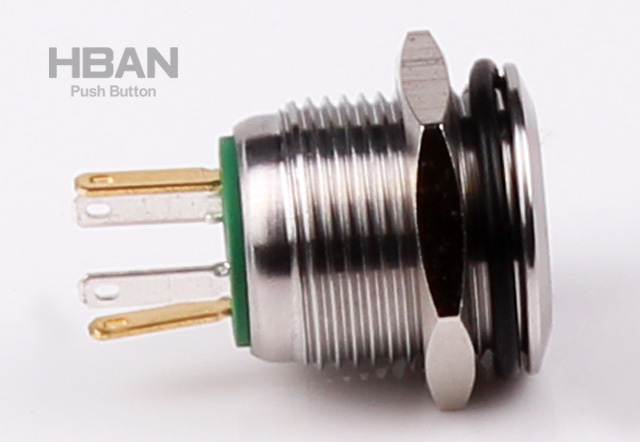

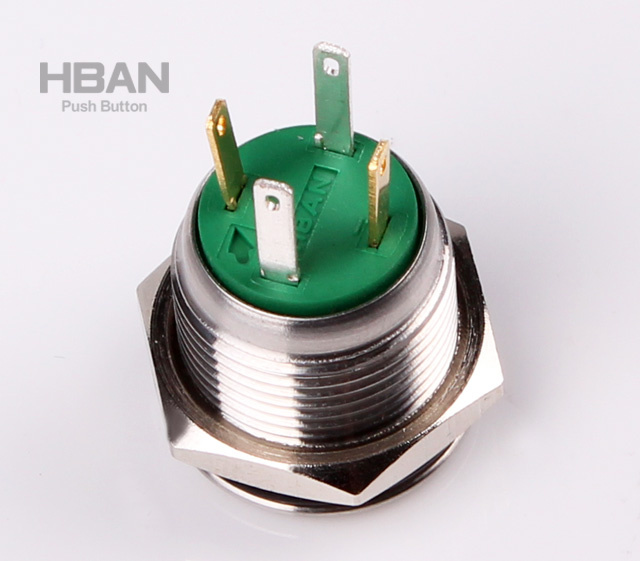

Push button switch with dot light
Item No.:HBGQ16F-10D/J/N,HBGQ16F-10D/J/S
Mounting Hole Size:Φ16mm
Switch Rating:2A/36VDC
Contact Configuration: 1NO (1NC can be customized)
Operation Type: Momentary
The Front Shape: Flat Round
The Crust Material: Nickel-plated Brass / Stainless Steel
Protection Degree:IP65,IK08
CE ROHS ISO9001 certificates
Packging Details:
Item No. | HBGQ16F-10D/J/N | HBGQ16F-10D/J/S | |||||
Specification | 1NO Momentary | 1NO Momentary | |||||
Front Head Shape | Flat Round | ||||||
Terminal Type | Pin Terminal | ||||||
Switch Type | X(Two terminal breakpoints slow moving contact) | ||||||
Switch Specification | 2A/36VDC | ||||||
Contact Resistance | ≤50m Ω | ||||||
Insulation Resistance | ≥1000MΩ | ||||||
Dielectric Strength | 2000V AC | ||||||
Operating Temperature | -20degree~+55degree | ||||||
Machanical Life | >1,000,000 times | ||||||
Electrical Life | >200,000 times | ||||||
Panel Thickness | 1~10mm | ||||||
Torque | 5~14Nm | ||||||
Operating Pressure | About 4N | ||||||
Operating Stroke | About 1.5mm | ||||||
Protection Degree | IP65,IK08 | ||||||
Material | Contact | Sliver Alloy | |||||
Button | CD Pattem | Mirror Surface | |||||
Case | Nickel-plated Brass | Stainless Steel | |||||
Base | PBT | ||||||
Lamp Specification | Type | LED Dot Illumination | |||||
LED Voltage | 2V/6V/12V/24V/36V | ||||||
LED Color | Red /Green/Yellow/Orange/Blue/White | ||||||
LED Lifetime | 50000 Hours | ||||||
Current Limiting Resistor Configuration Table ( Recommended Value) | Rated Voltage U | 6V | 12V | 24V | 36V | Formula R= (U-Ue) / Ie | |
Current Limiting Resistor R | Red /Yellow/Orange | 210Ω ,1/4 W | 510Ω ,1/2 W | 1.2KΩ ,3/4 W | 2KΩ ,1 W | ||
Green/Blue/White | 160Ω ,1/4 W | 460Ω ,1/2 W | 1.2KΩ ,3/4 W | 2KΩ ,1 W |
