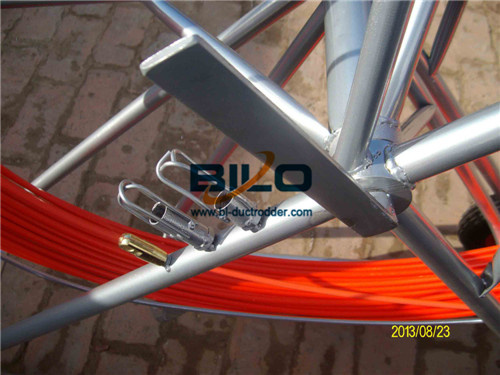

Push Pull Rod
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Duct rodder, Conduit rodder, Cable puller, Fiberglass duct rodder, Fish tape, Duct rod, Push pull rod, FRP duct rodderHebei BILO Duct rodder Co., Ltd., established in 2003, is a specialzied manufactuer of Fiberglass duct rodder in Hebei, China. With 130,000m2working shop, 12 years manufacturing and export experience, advanced technology, facilities, inspection and management system, "BILO" brand Fiberglass duct rodder win the whole word reputation! OEM and ODM service are welcome!!| Duct rodder Rod Diameter: |
| 4.5mm, 6mm, 8mm, 9mm,10mm,11mm,12mm,13mm,14mm,16mm,18mm |
| Rod Length: |
| 10-500mtrs |
| Most popular Size: |
| 4.5x80m, 6*80m, 6*120m, 8*150m, 10*150m, 10*200m,12*250m, 14*300m,16*300m, etc. |
| Frame size: |
| H48*45*20cm, H65*50*20cm, H98*90*40cm, H100*100*45cm, H122*118*45cm, 150*155*45cm |
| Duct rodder Material : |
| Rod inner: | Fiber glass and unsaturated polyester resin |
| Exterior coating: | Medium density ABS resin |
| Steel Frame: | Spray coating |
| Wheel: | Natrual Rubber |
| Drawing Head: | Coopper |
| Brake: | Yes |
| Optional: | Copper wire inside for tracing easily. |
| Physical Property: |
| Linear density(g/m): | 55g/m |
| Bending Radius: | 295mm |
| Pulling break tension: | Max.4500kgs |
| Working environment | From -40ºC to +80 ºC |
| Technology: | Pultrusion |
Duct rodder Feature:1. Great rigidity and strength2. Light & easy to use3. Excellent flexibility force4. Quickly delivery5. Safe, non conductive and no kink6. Anticorrosion, good elasticity, long working lifeDuct rodder Structure:7. Fiber glass rod inner: Extruded by fiber glass and unsaturated polyester resin at high temperature.8. Fiber glass rod outer: Medium density ABS resin for the insulating and jacketing of cables.9. Assembly: metal frame sprayed paint; rubber wheels assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.10. Copper wire inside is optional which is for tracing easily.11. Rolling bearing cage (wheel transport) for mobility will be light and easy to use in the field.12. Feed device allows rod to feed out or be back with easy push or pull of rod13. Rustproof bull-nose pulling eye and accessories.Duct rodder are packed into strong carton which is suitable for long distance transport,color label is available as per request on the carton.Business term: Ex factory, FOB, C&F, CIF, DDU,DDP are acceptable.We accept Western Union, T/T, L/C,Paypal etc term of payment.
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
BILO Import & Export is specialized in power and cable equipments and construction tools. Our main products are FRP duct rodder, cable rollers, cable pulling winch, cable drum jack, cable pulling sock, etc.
With varieties of products and specifications, we focus on the development and innovation of new products to meet the markets. For keeping the first level in this field, we cooperate with some colleges to improve the materials and technology.
With mature technology, advanced equipments, experienced workers, good management and continuous orders, the quality and cost advantages are fully guaranteed.
We take the technology as the basement, quality as the foremost. Our products have been exporting to more than 40 countries and getting good reputation domestic and abroad. We are responsible and reliable. BILO welcome you!
