Welded Wire Mesh / Safety Roof Mesh / Concrete Reinforcing Mesh / Aviary Mesh / Malla Soldada Cuadrada / Malla Alambre Soldado / Malla Cuadrada Galvanizada
1. Material:
Low carbon steel wire, stainless steel wire.
2. Characteristics:
It has the characteristics of corrosion-resisting and oxidation-resisting.
3. Uses:
widely used in industry, agriculture, construction, transportation, mining, golf course, lawn, aquaculture and other sectors of the fence, decoration, machine protection, and so on.
4. We can produce all kinds of welded wire mesh.
a. Electro galvanized before welded
b. Electro galvanized after welded
c. Hot dipped galvanized before welded
d. Hot dipped galvanized after welded
e. PVC coated welded wire mesh
f.Stainless steel wire mesh
g. welded wire mesh panel
Other Size:
| Welded wire mesh |
| Opening | Wire diameter(BWG) |
| In inch | In metric Unit(mm) |
|
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
We manufacture and exporter galvanized welded wire mesh
Type of welded wire mesh: Galvanized welded wire mesh(include galvanized before welding and galvanized after welding), hot-dipped galvanized welded wire mesh, electro galvanized welded wire mesh, PVC-coated welded wire mesh, stainless steel wire mesh
Hole size of welded wire mesh: 1/4" to 200mm
Wire diameter of welded wire mesh from 0.5mm to 6.0mm
Width and length of welded wire mesh according to your requirement
Packing of welded wire mesh: In roll, in sheet
Specification List of Welded Wire Mesh
| Opening
| Wire Diameter
| In inch
| In metric unit(mm)
| 1/4" x 1/4"
| 6.4mm x 6.4mm
| 22,23,24
| 3/8" x 3/8"
| 10.6mm x 10.6mm
| 19,20,21,22
| 1/2" x 1/2"
| 12.7mm x 12.7mm
| 16,17,18,19,20,21,22,23
| 5/8" x 5/8"
| 16mm x 16mm
| 18,19,20,21,
| 3/4" x 3/4"
| 19.1mm x 19.1mm
| 16,17,18,19,20,21
| 1" x 1/2"
| 25.4mm x 12.7mm
| 16,17,18,19,20,21
| 1-1/2" x 1-1/2"
| 38mm x 38mm
| 14,15,16,17,18,19
| 1" x 2"
| 25.4mm x 50.8mm
| 14,15,16
| 2" x 2"
| 50.8mm x 50.8mm
| 12,13,14,15,16
| Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
|
Galvanized Fencing Mesh
| Opening
| Wire Diameter
| In inch
| In metric unit(mm)
| 2" x 3"
| 50mm x 75mm
| 2.0mm,2.5mm,1.65mm
| 3" x 3"
| 75mm x 75mm
| 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
| 2" x 4"
| 50mm x 100mm
| 2.11mm,2.5mm
| 4" x 4"
| 100mm x 100mm
| 2.0mm,2.5mm
| Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
|

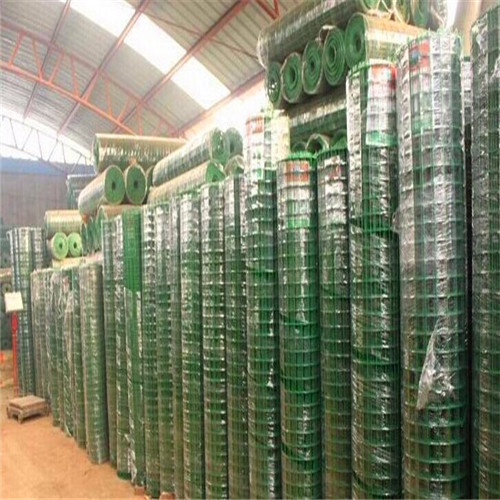

PVC Coated Welded Mesh
| Opening
| Wire Diameter
| In inch
| In metric unit(mm)
| 1/2" x 1/2"
| 12.7mm x 12.7mm
| 16,17,18,19,20,21
| 3/4" x 3/4"
| 19mm x 19mm
| 16,17,18,19,20,21
| 1" x 1"
| 25.4mm x 25.4mm
| 15,16,17,18,19,20
| Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
|
