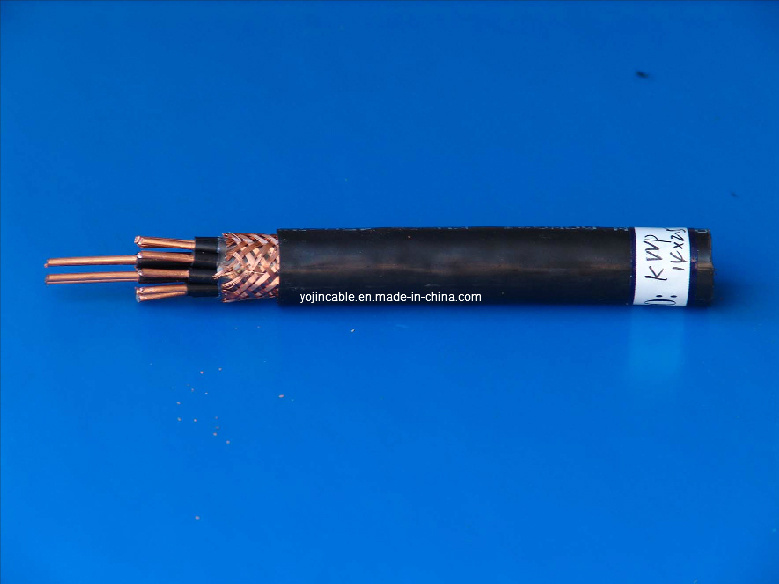

PVC Control Cable, Computer Cable

PVC Control Cable, Computer Cable
Price: Negotiable/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 200/Meter
Pay Type: L/C,T/T,Western Union
PVC control cable
1. Standard
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(1) The temperature for laying the cables can not be lower than 0oC. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D
Type Name Section Area(mm2) No. of Core Application Site
KVV Copper Conductor,PVC Insulated and Sheathed Control Cable 0.75 1.0 1.5 2.5 2-16 Permanent installation indoors,in cable ditches or pipes
4 6 2-14
10 2-10
KVVP Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded  Control Cable 0.75 1.0 1.5 2.5 2-61 Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6 2-14
10 2-10
KVVP2 Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable 0.75 1.0 1.5 2.5 4-10 Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6 7-61
10 4-10
KVV22 Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable 0.75 1.0 1.5 2.5 7-61 Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
4 6 4-14
10 4-14
KVVR Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable 0.5-2.5 4-61 Installation indoors where flexibility and movability are required
KVVRP Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable 0.5 0.75 1.0 4-61 Installation indoors where flexibility shielding and movability are required
1.5 2.5 4-48
KYJV Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable 0.75 1.0 1.5 2.5 2-16 Permanent installation indoors,in cable ditches or pipes
4 6 2-14
10 2-10
KYJVP Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable 0.75 1.0 1.5 2.5 2-61 Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6 2-14
10 2-10

KYJV22
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable 0.75 1.0 1.5 2.5 7-61 Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
4 6 4-14
10 4-10
KYJVP2 Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable 0.75 1.0 1.5 2.5 7-61 Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6 4-14
10 4-10
KYJVR Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable 0.5-2.5 4-61 Installation indoors where flexibility and movability are required
KYJVRP Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable 0.5 0.75 1.0 4-61
    1.5 2.5 4-48 Installation indoors where flexibility shielding and movability are required

Prod Model: Control Cable power cable wires
Markets: Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shanghai Yongjin Cable Group Co., Ltd. is headquartered in No. 388, Jinju Highway, Jinhui Town, Fengxian District, Shanghai, about 30 minutes away from Shanghai Hongqiao Airport, Shanghai Pudong International Airport, and People's Square. Through its efforts in the past years, the company has made tremendous contributions to the construction of national major projects and the development of the national power industry.

The company has set up a multiplicity of wholly owned subsidiaries engaging in the smelting business and the production of special cables, prefabricated branch cables, plastic products, and copper products. Moreover, the company has established partnership with more than 20 suppliers. The company covers a land area of 120, 000 square meters and a building area of 80, 000 square meters, and employs more than 600 people, including 21 engineers and senior engineers and 80 technicians. The company now has grown into a professional producer of cables, who owns advanced equipment and strong technical force, and has a history of seventeen years.

The company has passed the certification of ISO9001: 2000 Quality Management System and all products conform to the national GE standard as well as the international IEC standard. All the products have obtained the Industrial Products Production License and the China Compulsory Certification. Moreover, the company is among the recommended enterprises for upgrading of "Two Networks" approved by the State Economic and Trade Commission (Directory No. 1615 and 1750). The product quality is underwritten by the People's Insurance Company of China.

The company mainly supplies a variety of special cables, prefabricated branch cables, computer cables, automotive cables, civil electric wires, and plastic products, including high and low voltage power cables, rubber sheathed cables, mine cables, aluminum wires, ACSR, overhead insulated cables, silicon rubber, low smoke low halogen cables and low smoke zero halogen cables, which fall into over 50 species in more than 3000 specifications. The company has an annual output of more than 800 million yuan, and the products are sold well throughout the country and exported to more than 10 countries and regions, for example, Russia, Mongolia, North Korea, Vietnam, Europe and Africa. Some of the products are used in a number of national major projects, and in particular, the product quality and customer service have been unanimously recognized by customers. In 2007, the company was rated as "User Satisfaction Enterprises in Three Aspects" by the Shanghai Quality Association, the "Advanced Group" and "Civilized Unit" by the Fengxian District government, the "Advanced Unit of China Credit Enterprises", "China Credit Enterprises", and "Top Ten National Recognized Brands in Wire & Cable Quality" by the relevant government organizations.

In face of a new trend in market competition and the pattern of global economic integration, the company eyes on the future and realizes that the company has a long way to go. The company looks forward to building the company's century-prosperity and drafting an ambitious blueprint jointly with friends from all walks of life. The company will persistently seek to develop itself into an expert in the field of power transmission in China and the nation's world-renowned brand of wires and cables. To this end, the company is striving for a brilliant and prosperous tomorrow!
