Pz-5 Rotor Shotcrete Machine with Diesel Engine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

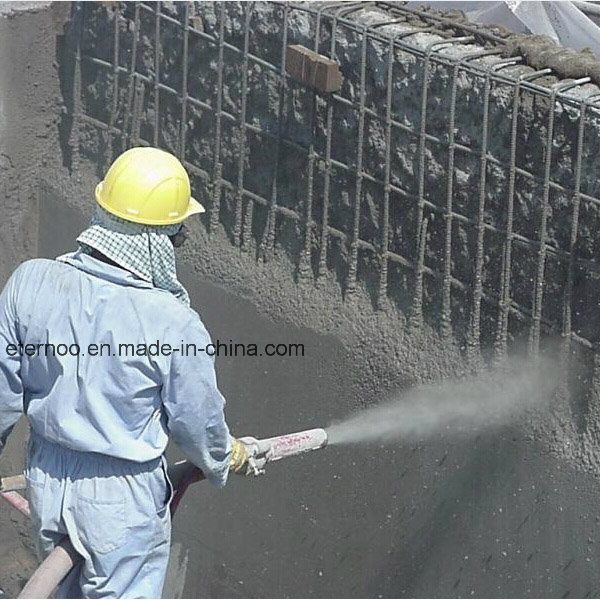

APPLICATION:Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns' inner liner.

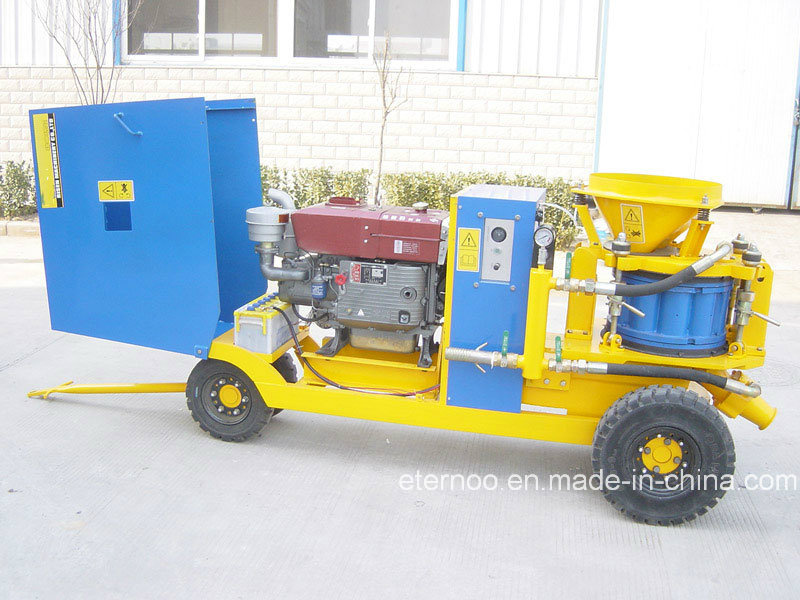

PZ-5 middle size shotcrete machine with diesel engine is used for dry mix and damp mix shotcreting in the places without electric power source. It is dependable, easy to maintain, robust, and is long lasting.TECHNICAL DATA:Output Capacity: 5 cubic meter/hourMaximum Conveying Distance: horizontal,200 m (660 ft); vertical,70 metersDesired Shotcrete Ingredient Ratio: Cement/sand and gravel < 0.4Maximum Aggregate Size: 15 mmInner Diameter of Conveying Hose: 51 mm (2")Working Compressed Air Pressure: 0.2 ~ 0.6 MPaConveying Air Consumption: 7 ~ 8 cubic meter / min)Diesel Engine: 7.7kW (10 HP)Dimensions: 2255 x 750 x 1250 mmNet Weight: 950 KgFEATURES:1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.2. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.4. Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.5. Three drive models: By Electric motor, air motor or diesel engine.6. CE safety standard.
| Prod Model: |
PZ-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Original: |
China |
| Delivery Time: |
in Stock or 10 Days |
| Voltage: |
220V, 380V, 400V,440V, 50/60Hz |
| Type: |
Shotcrete |
| Certification: |
CE |
| Condition: |
New |
| Machining Process: |
Spraying Concrete |
| Productivity: |
5m3/H |
