Price: | US $ 8-10/Piece |
---|---|
Trade Terms: | FOB,CIF |
Min Order: | 300/Set |
Pay Type: | L/C,T/T,D/P |

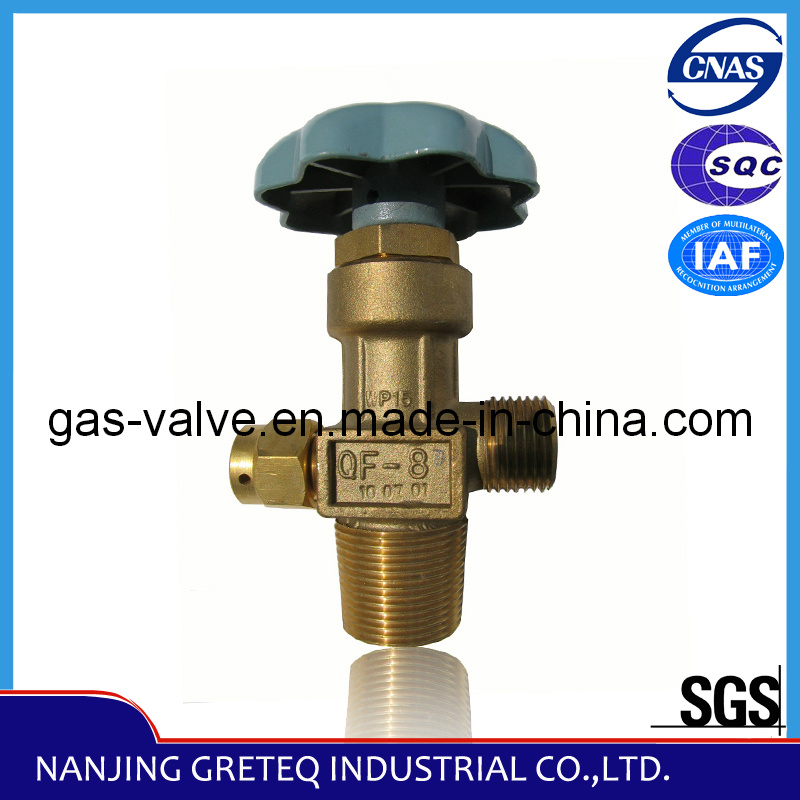

Prod Model: | OF-8D |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Standard Or Nonstandard: | Standard |
Structure: | Shutoff |
Pressure: | High Pressure |
Power: | Manual |
Material: | Brass, Hpb59-1 |
Temperature Of Media: | Normal Temperature |
Port Size: | Nletgb8335 Pz27.8, Outlet W21.8*1/14 |
Suitable Medium: | O2.Air N2 |
Loading Port: | Shanghai |
Delivery Time: | Within 10 Days |
NO. | Type No. | Product Name |
Suitable medium |
PN (Mpa) |
DN (mm) |
Outlet thread(mm) |
Jiont thread to cylinder (mm) |
Temp/pressure of safety device ( Mpa) |
1 | QF-7 | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
2 | QF-7A | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
3 | QF-7A1 | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8-14-LH | GB8335 PZ27.8 | |
4 | QF-7B | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
5 | QF-7C | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | 21±1.5 |
6 | QF-7D | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
7 | QF-7D1 | Brass Shaft coupling Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
8 | QF-7D2 | Brass Shaft coupling Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
9 | QF-7D3 | Brass Shaft coupling Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8-LH | GB8335 PZ27.8 | |
10 | QF-7F | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
11 | QF-7G | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead W22.5 X 1/14 | GB8335 PZ27.8 | |
12 | QF-7H | Brass Shaft coupling Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 |
JIS B 8246 V1 Ø28 |
