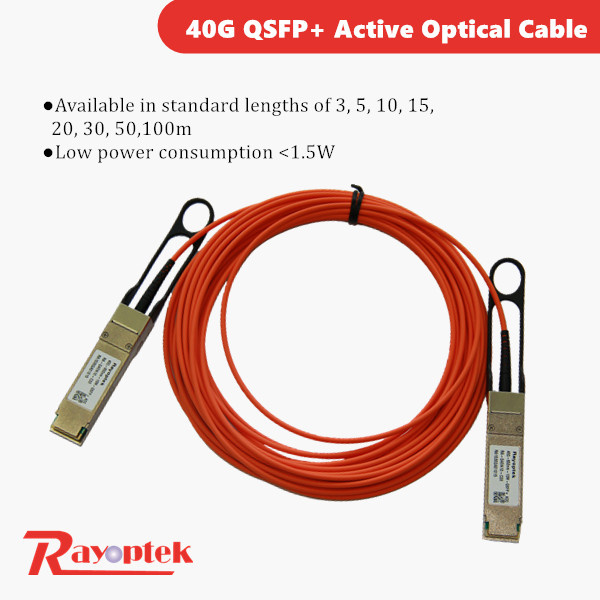

Qsfp+ Aoc Fibre Optical Transceiver

Name: Qsfp+ Aoc Fibre Optical Transceiver
Brand: china-manufacturer-directory.com
SKU: 704209482
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Specifications
l 40G QSFP+ AOC,QSFP+ Cable
l Condition: New Original
l Manufacturer: RayOptek
l OEM and ODM,Buyer Label Offered
l RoHS Compliant

Features
Four-channel full-duplex active optical cable
Transmission data rate up to 11.3Gbit/s per channel
Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor

Applications
Infiniband QDR/DDR/SDR
Datacenter
40G Ethernet
4G/8G/10G Fibre Channel

Description
The RayOptek QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber
channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.RayOptek QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.RayOptek QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

Order Information

Part Number	Product Description
RA-Q40NXXC-00	40Gb/s QSFP+ Active Optical Cable

Notes:
where "xx" denotes cable length in meters. Examples are as follows:
xx = 03 for 3m, xx = 10 for 10m, xx = 50 for 50m, xx = A0 for 100m

Prod Model:	RA-Q40NXX-C00
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	40g Qsfp+ 10m Optic Cable
Application:	40g Ethernet
Data Rate:	40g
Distance:	10m
Fiber Type:	Optic Cable
Media:	Om3
Length:	10m
Transceiver Type:	Qsfp+
Connector:	Aoc
Operating Temperature:	0 to +70 Degree
Type:	Fiber Transceiver
Wiring Devices:	ODF
Condition:	New

RayOptek Product Overview

1.40G QSFP+ Transceiver: 40G-QSFP-SR4, 40G-QSFP-LR4, 40G-QSFP-PSM

2. Active Optic Cable: QSFP+ to SFP+ AOC, 40G QSFP+ AOC, 10G SFP+ AOC

3.10G SFP+ Transceiver: SFP+SR, SFP+ LR, SFP+ LTE, SFP+ ER, SFP+ZR, SFP+ BIDI LR

RayOptek Overview

Wuhan RayOptek Co., Ltd. Concentrates on the research, design, production and marketing of high speed optoelectronic integrated device and optical transceivers at the working speed of 10GB/s. 40GB/s and 100GB/s, since the foundation of the company. Relying on the technology accumulation in silicon photonics integration and optoelectronic integrated component, RayOptek constantly focus on the design and development of optical communication transceiver with small size, low power consumption and low cost.

The Strength Of RayOptek

1. R&D Team. RayOptek pay great attention to the research and design, Over 50% margin was devoted into the research. All engineers has been in the area for over 6 years, some of which has been in the area for over 15 years with rich experience.

2. Production: Two Factories, one in Suzhou, one in Wuhan. The factory in Suzhou is mainly responsible for the production of optical components. And the factory in Wuhan is in charge of the completion of all optic modules.

3. Point: Experienced engineer, mature technique, several patents for invention. OEM and ODM services are available.
