Price: | US $ 1/Piece |
---|---|
Trade Terms: | FOB,EXW |
Min Order: | 20/Set |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | YML-1810 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Consumption: 272W: | Light Source LED 4in1 Chips |
18*10W: | 100-240V |
Channel: 11/17/21/25: | DMX512, Rdm, Stand-Alone Mode, Voice Control Mode |
Dimension : 322*242*336mm: | Gross Weight: 8.5/11.2kg |
Light Source: | LED |
Material: | Aluminum Alloy |
Emitting Color: | RGB |
Control Channel: | 11CH |
Strobe: | Electronic Strobe |
Control Mode: | Master Slave Mode |
IP Rating: | IP65 |
Certification: | GB7000.217-2008 |
Voltage: | 110V |
TECHNICAL PARAMETERS | |||

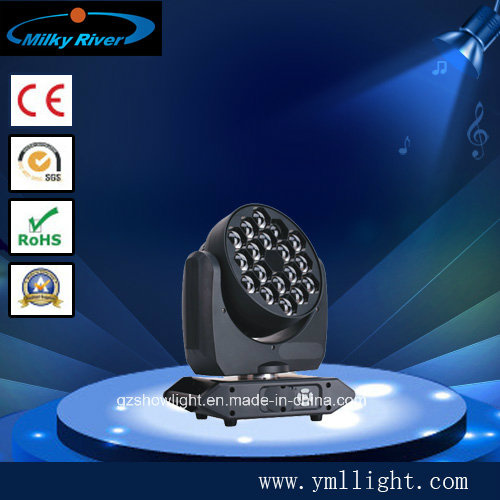

Model | Mini Bee Entertaiment Series : 18pcs*10w Wash | Control Mode | DMX512, RDM, Stand-alone mode ,Voice Control mode , Mater-Slave mode , Wireless DMX512. |
Voltage | AC100V~240V/50~60Hz | Channel | standard: 17CH, simple : 11CH Extend 1: 21 CH Extend 2 : 23 CH |
Power | 272W | Display Menu | 1 , 2.4 inches TFT touch screen , English version language. |
LED chip | 18pcs *10W , RGBW 4 in 1 LED chip | 2 ,display board can record device's using time , show device's temperature, channel data and software version . | |
LED life span | 50000 hours | 3 , Edit the procedure | |
Lens degree | Aspheric lens, angle 1.5° | Other feature | 1 , Extend IP address function , each IP address maximum can set 64 ID |
Facula angle | 6 °-60° Beam; zoom : 7°-55° | 2 , Support DMX signal priority identification, when lose the signal it would be turn into Black , default scene , Automatic function etc according to setting | |
Color system | RGBW marco color system | 3 , Remote control function: control the procedure, speed etc function by the remote controller when the product under the condition without signal . 4, software upgrade : upgrade software by XRL cable | |
Strobe | 1 -30 times/ second electronic strobe and random strobe | apperance | adopt ABS anti-fire plastic |
Dimmer | 65536 class dimmer | Light size | 322×242X336(mm) |
Pan/Tilt | Pan: 540°/2 seconds, Tilt : 180°/1.2 seconds | Carton Size | 412×287X525mm |
ch | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
function | dimmer | dimmer fine | shutter | Red(1) | Green(1) | blue(1) | white(1) | Macro colour | Pan |
10 | 11 | 12 | 13 | 14 | 15 |
Pan fine | Tilt | Tilt fine | Rota. lens | Rota speed | fixture control |
16 | 17 |
Calibration | Slave ID |
