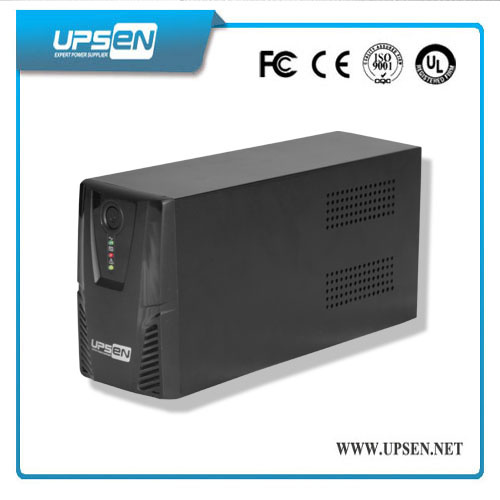

Quality Off Line UPS with computer management system1: UPS with Boost and Buck AVR to stabilize input voltage
2: UPS with Single Phase 220V/230/240Vac
3: UPS with LED/LCD Display for option
4: UPS with RS232 Port and Short-circuit protection
UPS ApplicationUPSEN Future Star Offline AVR UPS mainly used for computer, POS, Computer Peripherals.
UPS Key Features1: LED/LCD Display Optional, smart design
2: Equipped with Boost and Buck AVR to stabilize input voltage. Wide input voltage range, AVR function
3: Intelligent battery management
4: Overload/ Over charge/ Short-circuit protection
5: Low battery alarm
6: Auto restart while AC recover
7: Built in DC start function enables UPS to be started up without AC power supply.
8: Smart RS-232 or USB communication port with free download software from Internet
9: Modem/Line Surge Protection: RJ11/RJ12/RJ45
| Model | F400 | F500/650 | F700 | F800 | F1000 | F1200 | F1500 | F2000 | F3000 |
| Power factor | 0.6 |
| Load type | Personal computer and other PC peripheral devices |
| Mains voltage range | (140~290) ±5Vac |
| Mains frequency range | (40~70)±1Hz |
| Output voltage range(Line mode) | 220Vac/230Vac±10%(Sine wave) |
| Output frequency range (Line mode) | Synch with mains input |
| Output voltage range (battery mode) | 220Vac/230Vac±5%(Square wave) |
| Output frequency range (battery mode) | (50/60)±1Hz(frequency self-adapt system) |
| Battery No-load protection | Auto protection. The UPS auto shutdown after 2min no load detected |
| Transfer time | ≤ 8ms |
| Battery backup time* | >6Min(half load) |
| Battery protection | Auto protection. The UPS auto shutdown when battery voltage is low or high. |
| Battery charging time | 8 hours to 90% |
| Short circuit protection | Auto protection. Output shuts off and the buzzer beeps continuously |
| Overload protection | 110%≤ 120%, buzzer beeps; load percentage >120%, output shuts off, buzzer beeps continuously. |
| Operating temperature | 0 ~40 o C |
| Storage temperature | -15 ~45 o C |
| Relative humidity | 0%~90%(No condensation water) |
| Noise | ≤ 35dB(1m from front panel) |
| Communication interface | Intelligent RS-232/USB(Optional) |
| Network protection | RJ45/11 surge protector (Optional) |
| Size/L×W×H(mm) | 230*90*145 | 291*90*145 | 330*90*145 | 340x122x190 | 525*248*355 |
| Net weight | 4 | 4.5 | 5 | 5.2 | 8.4 | 9.4 | 10 | - | - |
|
| *Specifications change without further notice |
