Product Specifications
Prod Model: |
QX1290D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Qx1290-D |
Working Area: |
1200*900mm |
Application Materials: |
Acrylic, Wood, Leather, Cloth, Plastic |
Laser Power: |
60W, 80W, 100W, 150W |
Laser Tube's Using Life: |
Ordinary One 2000-3000 Hours |
Rotary Clamp: |
Used for Process Round Materials |
CO2 Laser Engraver: |
Double Heads Laser Engraving/Cutting Machine |
Wood Laser Engraving Machine: |
Acrylic Laser Engraver |
Leather Laser Engraving Equipment: |
Glass Laser Engraver |
Acrylic CO2 Laser Engraving Machine: |
Plastic Laser Cutting Machine |
Type For Cutting Machine: |
Laser Cutting Machine |
Product Description

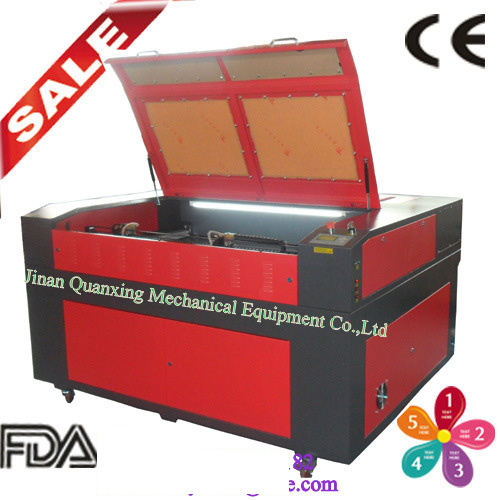

Product name: Laser Machinery with Dual Laser Heads
Double head laser machine
Advantage Features:
1. Two laser tubes working together or alternatively
2. Save programming time and tube cost
3. Equiped with a low power, high precision engraving laser tube and a high power cutting laser tube, the operation of engraving and cutting can be completed in one machine
4. Unique design: The space between two heads can be freely adjusted
5. Strong structure enables the machine moving steady and speedy with high precision, maintaining high carving precision long time unchanged. Run-through boby design suitable for infinite length work piece processing
A: Main application:
Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline, marble, leather, cloth, double-color board, etc. Nonmetal materials
B: Product Features:
@ Double Red Pointer, which makes laser focus more easier, accurate and more personalized, no need any focusing tools.
@ Wast collect box
@ with front and back feature for super-long materials processing
@ limit switch for safe processing
@ Separate control system box
@ It adopts the international standard linear guide rail, which makes machine running more smoothly and accurately.
C: Trade Terms:
@ Delivery time:
It is 5-10 working days after your order.
@ Favorable Policy:
We'd like to give you some discount or send you some spare parts free of charge according to quantity of your order, especially for distributors.
@ Warranty:
12 month warranty for every part of machine, 3 months for laser tube
@ After-sales service:
CD, Video, User Manual to guide you how to install, operate, maintain machine step by step.
Product model |
QX1290 |
Maxi working area |
1200*900mm |
Laser power (standard configuration) |
80W |
Options: long life time laser tube 80W, 100W, 150W, 180W |
Laser Types |
Hermetic And Detached CO2 Laser Tube |
Engraving speed |
0-75, 000mm/min |
Cutting speed |
0-40, 000mm/min |
Location precision |
≤ 0.01mm |
Resetting positioning accuracy |
≤ 0.01mm |
Power supply |
AC 220V/50Hz |
Gross power |
< 1, 000W |
Operating temperature |
0 - 45° |
Operating humidity |
5 - 95% |
Minimum shaping character |
English 1× 1mm |
360° slope engrave |
Yes |
Driving system |
stepper |
Cooling mode |
Water-cooling and protection system |
Auxiliary Devices |
Exhauster And Exhaust Pipe |
Software |
Lasercut 5.3 |
Graphic format supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
Optional |
Up& Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, Filtrator |
Optional water cooling system |
water pump, water chiller, air cooler |
We are a serious supplier, and supply very good quality to our customers to keep ahead in the same filed. Just only one sample machine, you will find more surprised pleasure with own eyes. We guarantee everything under our inspection and control, including the selection of raw material, the research of the new technology and crafts, the inspection of production process, the packaging of the machines, the accurate and fast tech support.
QX Laser established long stable relationships with many famous universities and science and technology institutes in Shanghai and Beijing. Under the guidance of the scientific research team, QX Laser accomplished the whole processes from software exploitation, hardware design, and system detecting to technical supporting
