Product Specifications
| Prod Model: |
S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Control Button |
| Type: |
Normal Close |
| Brand: |
Tianyi |
Product Description

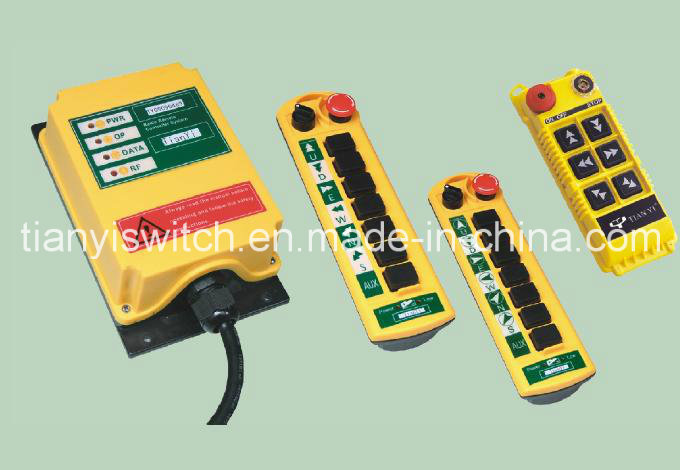

Radio remote control
Features
1. Advance program design, qukck & good performance on movements.
2. PA transmitter housing, water/shock/dust proof
3. Single-raw button transmitter, compact and lighter design, ensure safe&convenient operation.
4. Random security code up to 4.2 billions sets. Each transmitter has own unique ID code.
5. Receiver with 4-LED, quick, simple judgement for operation status & after service.
Transmitter
Technical date:
Operation distance:
100MFrequency:
FM 433MHz(20CH); FM 868MHz(20CH)Out put power: <10mW
Antenna: Internal type
Temparature:
0C~+70C(no battery inside)Power supply: 1.5V(AA)*4PCS
Enclosure: IP64
Consumption: <17mA(stand by: <20mA)
Address code: 4.2billions sets
Weight: 235g(excluding batteries)
Receiver
Technical data
Sensitivity of RF: -110dBm100M
Frequency: FM433MHz(20CH); FM868MHz(20CH)
Antenna: Internal type
Temparature: -10C~+70C
Source Voltage: AC48V/AC110V/AC220V/AC380V/AC415V, 50/6Hz
Enclosure: IP65
Consumption: <12W
Security Code: 4.2 billions sets
Weight: 700g(excluding batteries)
Power-On steps:
1. Power-on receiver
2. Switch the power switch to ON, and turn on the mushroom.
3. Press any button and release, now is ready to operate(now receiver powder LED light is green)
Power-Off steps:
1. Push down the mushroom.
2. Switch off transmitter power to cut off the power.
Yueqing Tianyi Electric Co., Ltd. Was set up in 1988 and is a professional manufacture that mainly deal in producing and selling push button, signal lamps, LED lamps and semi-products.
Our company locates in the greatest low-voltage appliance market Liushi, in Wenzhou.
The transportation around here is very convenient. Our company possesses strong technology and can design products all by ourselves. With an abundance of technical strength we brought in some advanced facilities to develop new items. As a result, our products maintains a steady market share, and the sales' Volume grows year by year.
Tianyi switch has been awarded CE and CCC certification and approval by ISO9001 systems. To guarantee the products' Quality, we forms a strict QC system, our products have been selling well in domestic market and have been exported to the Middle East, Southeast Asia, Africa, Europe, South and North America.
Adhering to the principle of building long-term relationship with customers, we always insist on providing first-class products and best service to customers.
If you are interested in any of our products please don' T hesitate to contact us.
