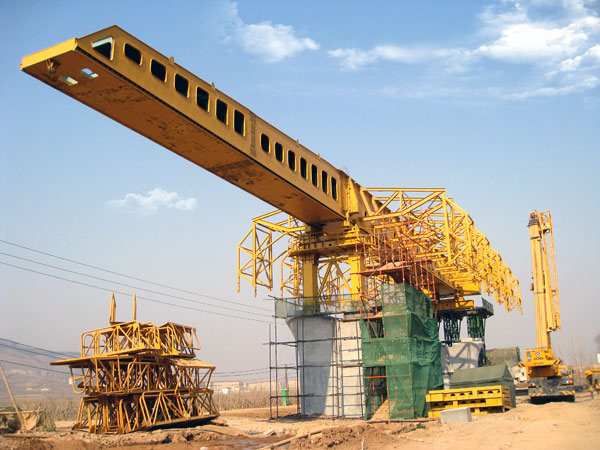

Railroad Bridge Girder Erection Machine
Product Description
The honeycomb girder made by our company welded by triangle section beam. And the whole beam is low gavity and reliable. The hole in the girder can reduce the wind impact to the crane.Different section is connected by six steel pins, which is very convenient to in stall.
the weight of honeycomb is between box girder and frame girder ,high rigid and low deflection.this bridge girder launcher can erect the girder between 30 and 50 with capacity from 80t to 200t for different bridge construction.
According to user's requirements,we recently develop the new type of bridge girder launcher intergrate
with erecting and carring.Railroad Bridge Girder Erection Machine(Patent No.02228146.0)
Main feature
1.Railroad Bridge Girder Erection Machine: The control system adopts mechanical-electrical-hhydraulic integration control,safe and reliable.And the circuits equip over current,overvoltage and under-voltage
protection, and activation position equip limit switches.
2.Light self weight,easy to assemble ,especially for curve bridge.
3.Span-shift can be finished from 32m to 24m by moving the support legs,very conveniently.
Railroad Bridge Girder Erection Machine technical date:
| Item |
HZQ50-160B |
HZQ40-100B |
HZQ35-80B |
HZQ30-60B |
Max Span |
50m |
40m |
35m |
30m |
Lifting Capacity |
160t |
100t |
80t |
60t |
Lifting Speed of Trolley |
0.8m/min |
0.8m/min |
0.8m/min |
0.8m/min |
Moving Speed of Trolley |
4.5m/min |
4.5m/min |
4.5m/min |
4.5m/min |
Moving Speed of Gantry |
2.7m/min |
2.7m/min |
2.7m/min |
2.7m/min |
Loading Capacity fo rConcrete Girder |
80t×2 |
50t×2 |
40t×2 |
30t×2 |
Speed of Heavy Load |
4-8M/min |
4-8M/min |
4-8M/min |
4-8M/min |
Speed of Empty Load |
18M/min |
18M/min |
18M/min |
18M/min |
Max Angle of Inclined Bridge |
45° |
45° |
45° |
45° |
Min Allowed Radius for Curved Bridge |
R350 |
R300 |
R300 |
R300 |
Our Company
Zhengzhou Odifei Machinery Equipment is a leading manufacturer in the crane andmaterial handing
industry.The company located in Crane hometown of china,which covers more than 2/3 crane market
in china.
We could supply all kinds of crane from 2M-30M to you,and can design every parts of the crane
according to your requirement.We pass GB/T I9001-2000,ISO 9001:2000 CE,SGS and so on,and
We have exported our cranes to Saudi Arabia, Pakistan,Australia,Dubai......
Railroad Bridge Girder Erection Machine,I want to know:
Q1. Do you offer customized service?
A: Yes. according to your demands of various working condition, capacity, lifting height and span as
well as your special requirements for gantry cranes.
Q2.How long for your crane with working life?
A: Our product design life is about 30 years under the common use.
Q3. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.Moreover, our best sales can visit your country.
