Established in 2004, Ningbo Keke Magnet Technology Co., Ltd is a professional Neodymium magnet manufacturer with 2'000 metric tons annually. The products are widely used in
1) Servomotor, step motor, DC motor and linear motor
2) Loudspeaker, headphone, earphone and microphones
3) Holding system equipment
4) Medical facility
5) Sound device
6) Wind power
7) VCM, MRI
8) Mobile accessory
9) Research and development, as well as many other applications

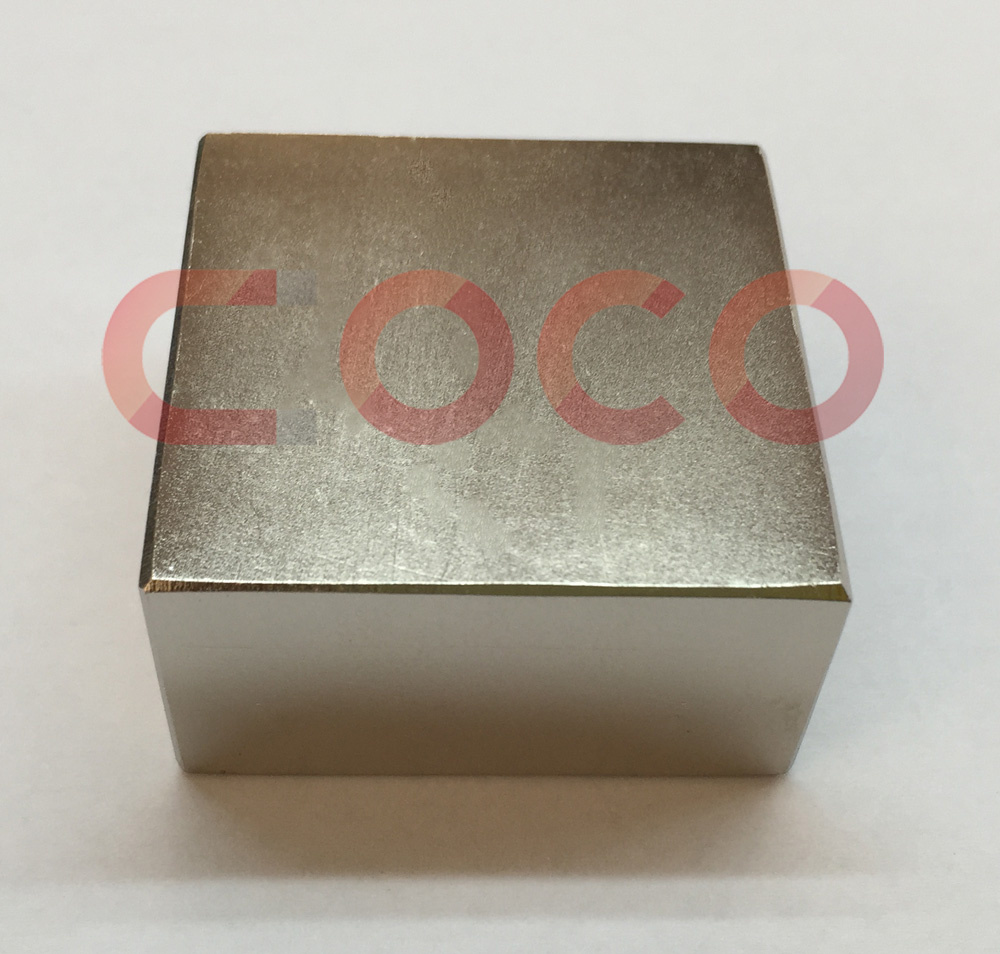

Block Permanent Magnet Product Description:
1. Materials: Ne-Fe-B
2. Shape: Various as you wish
3. Certificate: ISO/TSI6949: 2009
4. Powerful: Neodymium magnets (sintered NdFeB magnets) are more powerful than any other permanent magnet material in the market today.
5. Wide product range: N35-N54, 35M-52M, 33H-50H, 33SH-45SH, 30UH-42UH, 30EH-38EH, and 28AH-33AHB.
6. High performance: High intrinsic coercive force (up to 35KOe) and energy product (up to 55MGOe), the maximum working temperature of 230 degrees Celsius.
7. Competitive price: Very competitive price (lower than market average) due to mass production.
8. Coating: All the neodymium magnets oxidize rapidly when exposed, so an anti-corrosive coating (usually electroplating) is used to extend their working life. Such as Ni, Zn, gold, copper, epoxy, chemical, parylene and so on;
9. Applications: Magnet Separators, Sensors, Motors, Rotors, Wind turbines, Wind generators, Loudspeakers, Magnetic hooks, Magnetic holder, Filters Automobiles Magnetic jewelries, toys, magnetic buttons, Magnetic therapy and so on;
10. Quality: As to give good service, quality of each piece is guaranteed. Every piece of magnets is tested by ISO/TS 16949: 2009.
11. Caution: You should be extremely careful when install neodymium magnet, as they can easily pinch fingers.
12. No for Kids: NdFeB magnets are not suitable for children.
Block Permanent Magnet Production process:
Raw Materials-->Mixture--->Vacuum Melting--- > Powder Production--- >Molding ---> Vacuum Sintering--- > Testing--- >Mechanical Processing--- > Surface Coating--- >Magnetized--- > Inspecting--- > Packing and Shipping.
Block Permanent Magnet Directions of Magnetization:
A. Thickness Magnetized
B. Axially Magnetized
C. Diametrally Magnetized
D. Multi-poles magnetized
E. Radial Magnetized
F. Customized specific requirements magnetized
And we can produse the customed magnet size and shapes as customers' Request.
MARK:
(01) Block Permanent Magnet Samples and small quantity are available.
(02) All the inquiries, questions and emails will be replied within 1 hour.
(03) We have stock material for standard product.
In addition, if you customized Strong Permanent Block Neodymium Magnet, please send the specifications or your drawing to the.
Contact Person: Candy Sun
MB: 0086-13957886507
High Performance Sinterated NdFeB Magnet Item | Grade | Remanence;Br | Coercive Force;bHc | Intrisic Coercive Force;iHc | Max Energy Product;(BH)max | Working Temp. |
kGs | T | kOe | KA/m | kOe | KA/m | MGOe | KJ/m3 |
Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. |
N | N54 | 15.1 | 14.5 | 1.51 | 1.45 | ≥10.5 | ≥836 | ≥11 | ≥876 | 55 | 51 | 438 | 406 | ≤80 |
N52 | 14.8 | 14.2 | 1.48 | 1.42 | ≥10.5 | ≥836 | ≥11 | ≥876 | 53 | 49 | 422 | 390 | ≤80 |
N50 | 14.5 | 14.0 | 1.45 | 1.40 | ≥11.0 | ≥876 | ≥12 | ≥955 | 51 | 47 | 406 | 374 | ≤80 |
N48 | 14.3 | 13.7 | 1.43 | 1.37 | ≥11.0 | ≥876 | ≥12 | ≥955 | 49 | 45 | 390 | 358 | ≤80 |
N45 | 13.8 | 13.2 | 1.38 | 1.32 | ≥11.0 | ≥876 | ≥12 | ≥955 | 46 | 42 | 366 | 334 | ≤80 |
N42 | 13.5 | 12.9 | 1.35 | 1.29 | ≥11.0 | ≥876 | ≥12 | ≥955 | 44 | 40 | 350 | 318 | ≤80 |
N40 | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.0 | ≥876 | ≥12 | ≥955 | 41 | 38 | 334 | 302 | ≤80 |
N38 | 13.0 | 12.2 | 1.30 | 1.22 | ≥11.0 | ≥876 | ≥12 | ≥955 | 40 | 36 | 318 | 287 | ≤80 |
N35 | 12.2 | 11.7 | 1.22 | 1.17 | ≥10.9 | ≥868 | ≥12 | ≥955 | 36 | 33 | 287 | 263 | ≤80 |
M | N52M | 14.8 | 14.2 | 1.48 | 1.42 | ≥13.3 | ≥1059 | ≥14 | ≥1114 | 43 | 49 | 422 | 390 | ≤100 |
N50M | 14.5 | 14.0 | 1.45 | 1.40 | ≥13.1 | ≥1043 | ≥14 | ≥1114 | 41 | 47 | 406 | 374 | ≤100 |
N48M | 14.3 | 13.7 | 1.43 | 1.37 | ≥12.8 | ≥1019 | ≥14 | ≥1114 | 49 | 45 | 390 | 358 | ≤100 |
N45M | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.4 | ≥987 | ≥14 | ≥1114 | 46 | 42 | 366 | 334 | ≤100 |
N42M | 13.5 | 12.9 | 1.35 | 1.29 | ≥12.1 | ≥963 | ≥14 | ≥1114 | 44 | 40 | 350 | 318 | ≤100 |
N40M | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | ≥939 | ≥14 | ≥1114 | 41 | 38 | 334 | 302 | ≤100 |
N38M | 13.0 | 12.2 | 1.30 | 1.22 | ≥11.7 | ≥915 | ≥14 | ≥1114 | 40 | 36 | 318 | 287 | ≤100 |
N35M | 12.2 | 11.7 | 1.22 | 1.17 | ≥10.9 | ≥868 | ≥14 | ≥1114 | 36 | 33 | 287 | 263 | ≤100 |
H | N50H | 14.5 | 14.0 | 1.45 | 1.40 | ≥12.9 | ≥1027 | ≥16 | ≥1274 | 51 | 47 | 406 | 374 | ≤120 |
N48H | 14.3 | 13.7 | 1.43 | 1.37 | ≥12.7 | ≥1011 | ≥16 | ≥1274 | 49 | 45 | 390 | 358 | ≤120 |
N46H | 14.0 | 13.4 | 1.40 | 1.34 | ≥12.5 | ≥995 | ≥17 | ≥1353 | 47 | 43 | 374 | 342 | ≤120 |
N44H | 13.7 | 13.1 | 1.37 | 1.31 | ≥12.3 | ≥979 | ≥17 | ≥1353 | 45 | 41 | 358 | 326 | ≤120 |
N42H | 13.5 | 12.9 | 1.35 | 1.29 | ≥12.1 | ≥963 | ≥17 | ≥1353 | 44 | 40 | 350 | 318 | ≤120 |
N40H | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | ≥939 | ≥17 | ≥1353 | 42 | 38 | 334 | 302 | ≤120 |
N38H | 13.0 | 12.2 | 1.30 | 1.22 | ≥11.5 | ≥915 | ≥17 | ≥1353 | 40 | 36 | 318 | 287 | ≤120 |
N35H | 12.4 | 11.7 | 1.24 | 1.17 | ≥11.0 | ≥876 | ≥17 | ≥1353 | 37 | 33 | 295 | 263 | ≤120 |
N33H | 11.7 | 11.3 | 1.17 | 1.13 | ≥10.5 | ≥836 | ≥17 | ≥1353 | 34 | 31 | 271 | 247 | ≤120 |
SH | N45SH | 14.0 | 13.4 | 1.40 | 1.34 | ≥12.5 | ≥995 | ≥20 | ≥1592 | 47 | 43 | 374 | 342 | ≤150 |
N44SH | 13.7 | 13.1 | 1.37 | 1.31 | ≥12.3 | ≥979 | ≥20 | ≥1592 | 45 | 41 | 358 | 326 | ≤150 |
N42SH | 13.5 | 12.9 | 1.35 | 1.29 | ≥12.1 | ≥963 | ≥20 | ≥1592 | 44 | 40 | 350 | 318 | ≤150 |
N40SH | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | ≥939 | ≥20 | ≥1592 | 42 | 38 | 334 | 302 | ≤150 |
N38SH | 12.9 | 12.2 | 1.29 | 1.22 | ≥11.5 | ≥915 | ≥20 | ≥1592 | 40 | 36 | 318 | 287 | ≤150 |
N35SH | 12.4 | 11.7 | 1.24 | 1.17 | ≥11.0 | ≥876 | ≥20 | ≥1592 | 37 | 33 | 295 | 263 | ≤150 |
N33SH | 12.1 | 11.4 | 1.21 | 1.14 | ≥10.7 | ≥852 | ≥20 | ≥1592 | 35 | 31 | 279 | 247 | ≤150 |
UH | N42UH | 13.5 | 12.9 | 1.35 | 1.29 | ≥12.1 | ≥963 | ≥25 | ≥1990 | 44 | 40 | 350 | 318 | ≤180 |
N40UH | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | ≥939 | ≥25 | ≥1990 | 42 | 38 | 334 | 302 | ≤180 |
N38UH | 12.9 | 12.2 | 1.29 | 1.22 | ≥11.5 | ≥915 | ≥25 | ≥1990 | 40 | 36 | 318 | 287 | ≤180 |
N35UH | 12.4 | 11.7 | 1.24 | 1.17 | ≥11.0 | ≥876 | ≥25 | ≥1990 | 37 | 33 | 295 | 263 | ≤180 |
N33UH | 12.1 | 11.4 | 1.21 | 1.14 | ≥10.7 | ≥852 | ≥25 | ≥1990 | 35 | 31 | 279 | 247 | ≤180 |
N30UH | 11.6 | 10.8 | 1.16 | 1.08 | ≥10.2 | ≥812 | ≥25 | ≥1990 | 32 | 28 | 255 | 223 | ≤180 |
EH | N38EH | 12.9 | 12.2 | 1.29 | 1.22 | ≥11.5 | ≥915 | ≥30 | ≥2388 | 40 | 36 | 318 | 287 | ≤200 |
N35EH | 12.4 | 11.7 | 1.24 | 1.17 | ≥11.0 | ≥876 | ≥30 | ≥2388 | 37 | 33 | 295 | 263 | ≤200 |
N33EH | 12.1 | 11.4 | 1.21 | 1.14 | ≥10.7 | ≥851 | ≥30 | ≥2388 | 35 | 31 | 279 | 247 | ≤200 |
N30EH | 11.5 | 10.8 | 1.15 | 1.08 | ≥10.2 | ≥812 | ≥30 | ≥2388 | 32 | 28 | 255 | 223 | ≤200 |
AH | N33AH | 12.1 | 11.4 | 1.21 | 1.14 | ≥10.7 | ≥852 | ≥35 | ≥2786 | 35 | 31 | 279 | 247 | ≤230 |
N30AH | 11.5 | 10.8 | 1.15 | 1.08 | ≥10.2 | ≥812 | ≥35 | ≥2786 | 32 | 28 | 255 | 223 | ≤230 |
N28AH | 11.2 | 10.4 | 1.12 | 1.04 | ≥9.70 | ≥772 | ≥35 | ≥2786 | 30 | 26 | 239 | 207 | ≤230 |
