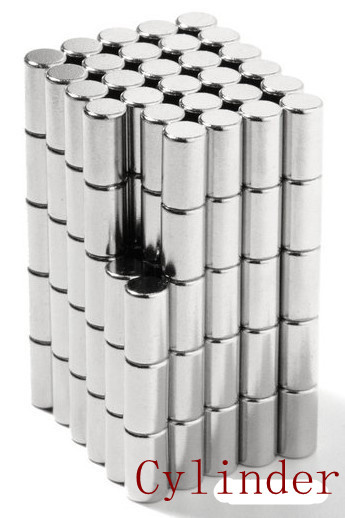

Rare Earth N35 Cylinder Neodymium Magnet

Name: Rare Earth N35 Cylinder Neodymium Magnet
Brand: china-manufacturer-directory.com
SKU: 747594895
Availability: InStock
Rating: 4.5 (21 reviews)

Price:	US $ 0.01-0.5/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Rare Earth N35 Cylinder Neodymium Magnet

NdFeB Neodymium Magnets
Block permanent NdFeB magnet
Disc: Max: Diameter 202mm*45mm thickness---Min: Diameter 1.5mm*0.5mm thickness
Ring: Max: Od202mm*ID182mm*thickness 45mm---Min: Od 3mm*ID1mm*3mm thickness
Block: Max: L200mm*W200mm*T45mm---Min: L0.5mm*W0.5mm*T0.5mm
Segment and other irregular shapes can be manufacture according to customers' sample or drawing.

1, How rare earth magnets are made:
Mining => Melting => Milling => Aligning&Pressing => Sintering => Inspecting => Machining => Plating/Coating => Inspecting => Magnetization => Packing&Shipping

2, Shape and Size

Block: Length x Width x Thickness

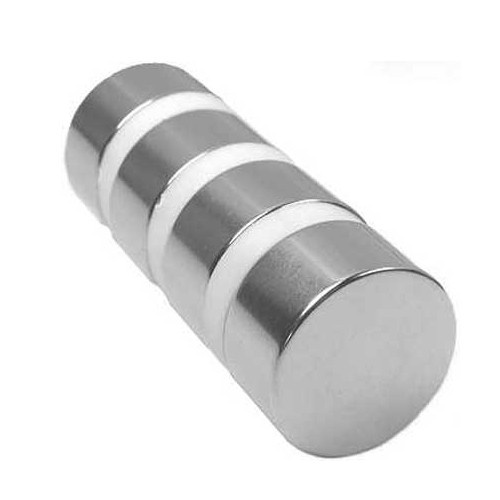

Disc / Cylinder: Diamter x Thickness

Ring: External Diamter x Internal Diameter x Thickness

Segment: According to the drawing

Irregular: According to the drawing
.

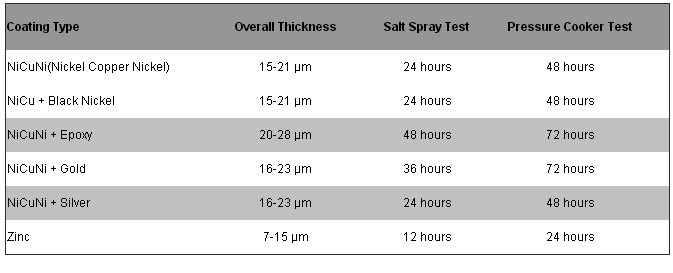

3, Coating:

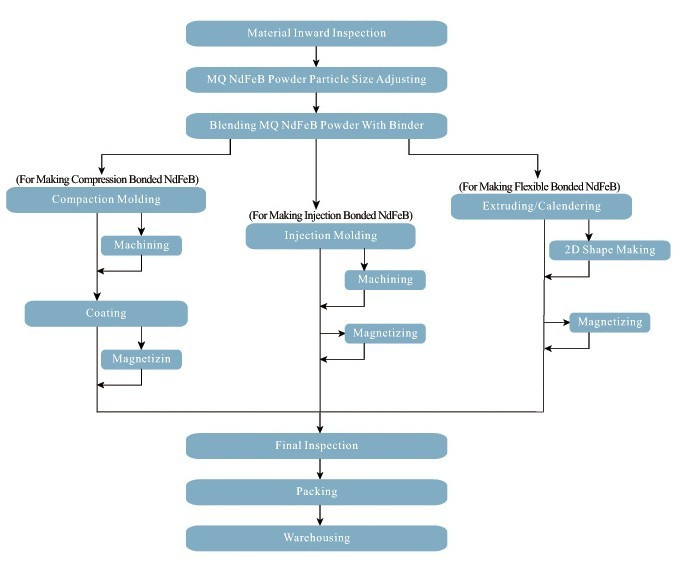

4, Process:
5, Applacation:
Sintered NdFeB Neodymium Magnets are widely used in areas of computer science,meters,sensors, motors,rotors,wind turbines,wind generators, speakers and so on.

You are welcome to visit our factory.
Welcome contact:
Tel: 86 18267013317

GRADE	(Br)		(bHc)		(iHc)		(BH)max		Tw
GRADE	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m3	MGOe	Tw
N35	1.18-1.23	11.8-12.3	≥ 868	≥ 10.9	≥ 955	≥ 12	263-287	33-36	≤ 80
N38	1.22-1.28	12.2-12.8	≥ 899	≥ 11.3	≥ 955	≥ 12	287-310	36-39	≤ 80
N40	1.26-1.31	12.6-13.1	≥ 923	≥ 11.6	≥ 955	≥ 12	302-326	38-41	≤ 80
N42	1.28-1.34	12.8-13.4	≥ 923	≥ 11.6	≥ 955	≥ 12	318-342	40-43	≤ 80
N45	1.32-1.37	13.2-13.7	≥ 876	≥ 11.0	≥ 955	≥ 12	342-366	43-46	≤ 80
N48	1.36-1.42	13.6-14.2	≥ 836	≥ 10.5	≥ 876	≥ 11	358-390	45-48	≤ 80
N50	1.39-1.45	13.9-14.5	≥ 836	≥ 10.5	≥ 876	≥ 11	374-406	47-51	≤ 80
N52	1.42-1.48	14.2-14.8	≥ 796	≥ 10.0	≥ 876	≥ 11	390-422	49-53	≤ 80
N35M	1.18-1.23	11.8-12.3	≥ 868	≥ 10.9	≥ 1114	≥ 14	263-287	33-36	≤ 100
N38M	1.22-1.28	12.2-12.8	≥ 899	≥ 11.3	≥ 1114	≥ 14	287-310	36-39	≤ 100
N40M	1.26-1.31	12.6-13.1	≥ 923	≥ 11.6	≥ 1114	≥ 14	302-326	38-41	≤ 100
N42M	1.28-1.34	12.8-13.4	≥ 923	≥ 11.6	≥ 1114	≥ 14	318-342	40-43	≤ 100
N45M	1.34-1.39	13.4-13.9	≥ 876	≥ 11.0	≥ 1114	≥ 14	342-366	43-46	≤ 100
N48M	1.36-1.42	13.6-14.2	≥ 876	≥ 11.0	≥ 1114	≥ 14	366-390	46-49	≤ 100
N35H	1.18-1.23	11.8-12.3	≥ 868	≥ 10.9	≥ 1353	≥ 17	263-287	33-36	≤ 120
N38H	1.22-1.28	12.2-12.8	≥ 899	≥ 11.3	≥ 1353	≥ 17	287-310	36-39	≤ 120
N40H	1.26-1.31	12.6-13.1	≥ 923	≥ 11.6	≥ 1353	≥ 17	302-326	38-41	≤ 120
N42H	1.28-1.34	12.8-13.4	≥ 923	≥ 11.6	≥ 1353	≥ 17	318-342	40-43	≤ 120
N45H	1.33-1.39	13.3-13.9	≥ 923	≥ 11.6	≥ 1353	≥ 17	342-366	43-46	≤ 120
N48H	1.36-1.42	13.6-14.2	≥ 923	≥ 11.6	≥ 1274	≥ 16	366-390	46-49	≤ 120
N33SH	1.14-1.19	11.4-11.9	≥ 836	≥ 10.5	≥ 1592	≥ 20	247-270	31-34	≤ 150
N35SH	1.18-1.23	11.8-12.3	≥ 868	≥ 10.9	≥ 1592	≥ 20	263-287	33-36	≤ 150
N38SH	1.22-1.28	12.2-12.8	≥ 899	≥ 11.3	≥ 1592	≥ 20	287-310	36-39	≤ 150
N40SH	1.26-1.31	12.6-13.1	≥ 923	≥ 11.6	≥ 1592	≥ 20	302-326	38-41	≤ 150
N42SH	1.28-1.34	12.8-13.4	≥ 923	≥ 11.6	≥ 1592	≥ 20	318-342	40-43	≤ 150
N45SH	1.33-1.39	13.3-13.9	≥ 923	≥ 11.6	≥ 1592	≥ 20	342-366	43-46	≤ 150
N28UH	1.03-1.09	10.3-10.9	≥ 780	≥ 9.80	≥ 1990	≥ 25	207-231	26-29	≤ 180
N30UH	1.09-1.14	10.9-11.4	≥ 812	≥ 10.2	≥ 1990	≥ 25	223-247	28-31	≤ 180
N33UH	1.13-1.17	11.3-11.7	≥ 852	≥ 10.7	≥ 1990	≥ 25	247-263	31-33	≤ 180
N35UH	1.18-1.22	11.8-12.2	≥ 868	≥ 10.9	≥ 1990	≥ 25	263-287	33-36	≤ 180
N38UH	1.22-1.27	12.2-12.7	≥ 899	≥ 11.3	≥ 1990	≥ 25	287-310	36-39	≤ 180
N28EH	1.03-1.09	10.3-10.9	≥ 780	≥ 9.80	≥ 2388	≥ 30	207-231	26-29	≤ 200
N30EH	1.08-1.13	10.8-11.3	≥ 812	≥ 10.2	≥ 2388	≥ 30	223-247	28-31	≤ 200
N33EH	1.13-1.17	11.3-11.7	≥ 852	≥ 10.7	≥ 2388	≥ 30	247-263	31-33	≤ 200
N35EH	1.18-1.22	11.8-12.2	≥ 868	≥ 10.9	≥ 2388	≥ 30	263-287	33-36	≤ 200
N28AH	1.03-1.09	10.3-10.9	≥ 780	≥ 9.80	≥ 2786	≥ 35	207-231	26-29	≤ 220
N30AH	1.08-1.13	10.8-11.3	≥ 812	≥ 10.2	≥ 2786	≥ 35	223-247	28-31	≤ 220

Prod Model:	N4021217
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Permanent
Composition:	Neodymium Iron Boron
Size/Shape:	Can Be Customized
Process Techinic:	Sintering
Package:	Export Carton Packing
Port:	Ningbo or Shanghai
Application:	Motor Magnet
Coating:	Nickel, Zinc, Ni-Cu-Ni
Shape:	Block, Disc, Ring, Cylinder, Arc
Grade:	N35, N38, N40, N42, N50, N52
