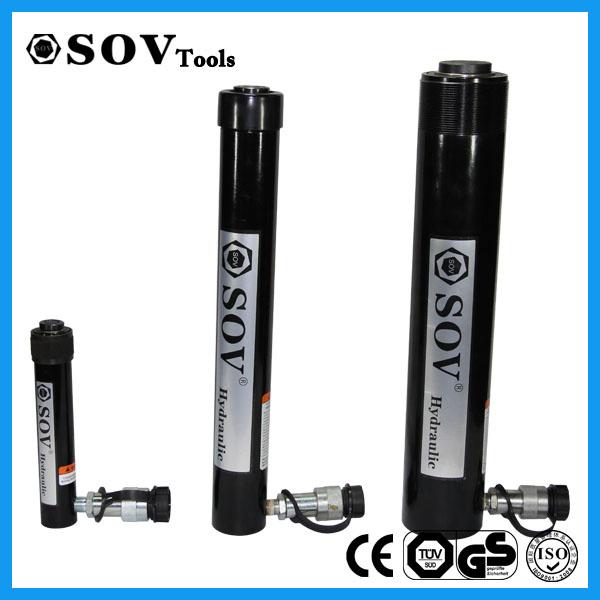

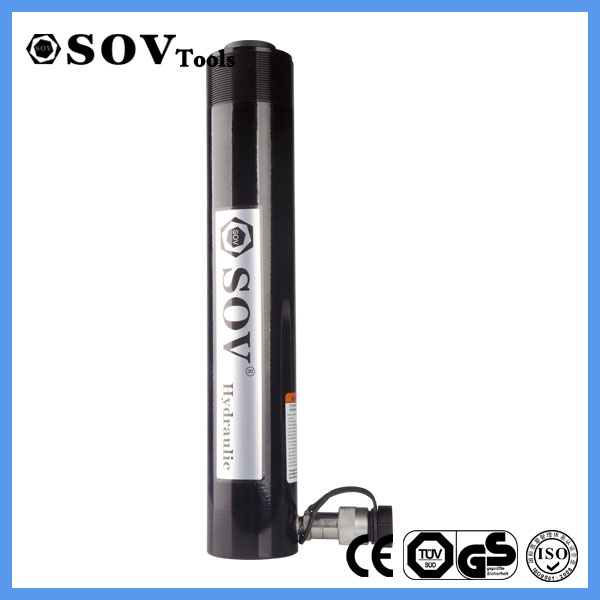

RC-Series Single Acting Cylinders (SV19Y)

Name: RC-Series Single Acting Cylinders (SV19Y)
Brand: china-manufacturer-directory.com
SKU: 724541205
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SV19Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	RC-Series Single Acting Cylinders(Sv19y)
Capacity:	5-100 Ton
Stroke:	26-338 Mm
Coll.Height:	88-490 Mm
Working Pressure:	700 Bar
Weight:	2.3-72 Kg
Payment:	T/T
Stock:	Yes
OEM:	Yes
Color:	Can Customize
Material:	Steel
Structure:	Piston Cylinder
Power:	Hydraulic
Standard:	Nonstandard
Pressure Direction:	Single-acting Cylinder

Product Description

Product Featrues

1 Single-acting,spring return
2 Fitted with a dust ring, extending cylinder life
3 Surface of the cylinder treated special,resistance corrosion stronger

4 Cylinder equipped with a NPT3 / 8 quick connector, easy to use
5 50 ton or more cylinders are equipped with aluminum handle or lifting lugs for easy handling
6 Cylinder design for ues in all positions

Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.
Company Information

SOV is a professional manufacturing in hydraulic tools and products,we have been in the industry for more than 20 years.Since the establishment in 1995,we successfully transformed from OEM manufacturer to create our own brand SOV,and our factory has been approved by CE,ISO9001:2008 consecutively.Our products have been widely used in petrochemical,cement,shipbuilding,steel plant,and heavy constructions areas,etc.

Our main product category includes:

Hydraulic cylinders and jacks
Hydraulic bolting tools such as hydraulic torque wrench
Hydraulic bolt tensioners,nut splitters.

FAQ

Q1: How can contact sales ?
A1: Please call: 0086 21 685 61366 for pre-sales or click the contact find our website and email address.

Q2: How can I buy SOV products in my country?
A2: Please send us an inquiry or email , we will reply to your if there is distributor in your country.

Q3: Can I have SOV products catalog and price list ?
A3: Please visit our English website:www.sovhydraulic.com to download our E-catalog, and send us an email for price list

Q4: How long does it take to get the product If I place an order?
A4: If products stock available, after confirmation of your payment or advance payment , we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.

Q5: How to make payment ?
A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.

Q6: Manufacturing time?
Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.
Why Choose SOV ?
Quality --- SOV has been in the industry for than 20 years. We have been trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.

Service --- SOV promised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.

Model	Capacity (ton)	Stroke (mm)	Closed Height (mm)	Cylinder O.D (mm)	Piston Diameter (mm)	Working Pressure (Bar)	Weight (kg)
SV19Y526	5	26	110	38	25	700	1
SV19Y575	5	75	165	38	25		1.4
SV19Y5128	5	128	210	38	25		1.8
SV19Y5178	5	178	270	38	25		2.3
SV19Y5235	5	235	320	38	25		2.6
SV19Y1028	10	28	88	55	37		1.7
SV19Y1054	10	54	129	55	37		2.3
SV19Y10105	10	105	179	55	37		3
SV19Y10155	10	155	250	55	37		4
SV19Y10205	10	205	298	55	37		5.2
SV19Y10255	10	255	350	55	37		5.6
SV19Y10305	10	305	400	55	37		6.6
SV19Y10355	10	355	450	55	37		8
SV19Y1525	15	25	125	68	42		3.2
SV19Y1550	15	50	148	68	42		4
SV19Y15105	15	105	200	68	42		5
SV19Y15155	15	155	270	68	42		6.7
SV19Y15205	15	205	320	68	42		8
SV19Y15255	15	255	370	68	42		9.5
SV19Y15305	15	305	420	68	42		10.5
SV19Y15358	15	358	474	68	42		11.8
SV19Y2527	25	27	138	85	58		5.8
SV19Y2555	25	55	165	85	58		6.5
SV1Y25105	25	105	215	85	58		8
SV19Y25158	25	158	270	85	58		10
SV19Y25211	25	211	322	85	58		12
SV19Y25260	25	260	375	85	58		14
SV19Y25315	25	315	425	85	58		16.5
SV19Y25365	25	365	475	85	58		17.5
SV19Y5055	50	55	175	127	95		15.5
SV19Y50105	50	105	225	127	95		19
SV19Y50159	50	159	280	127	95		23
SV19Y50338	50	338	460	127	95		37
SV19Y75158	75	158	285	146	95		29
SV19Y75335	75	335	490	146	95		58
SV19Y100170	100	170	358	177	105		59
SV19Y100260	100	260	445	177	105		72

About SOV Hydraulic Technology Co., Ltd.

Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut

Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose

Hydraulic pipe cutting and beveling machine

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
