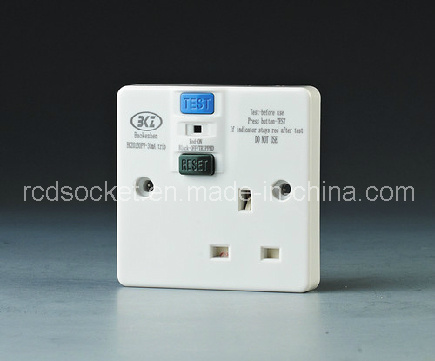

0130PW electrical socket
1. Single RCD plastic socket, unswitched
2. PC material, Passive RCD
3. Dimension: 86*86mm
4. RoHS, CE, BS
Specification
Model 0130PW electrical socket
RCD electrical socket, single RCD electrical socket
Rated Voltage 240VAC
Rated Current 13A max
Frequency 50Hz
Trip current 10mA or 30mA
Break Time 40mS max
Voltage Surge 4K (100kHz Ring Wave)
Endurance 3000 Cycles min
Hit-Pot 2000V min
Approval CE BS7288; BS1363
Cable capacit 3X2.5 mm
Minimum back box depth: 35mm
IP Rating IP4X
Application Equipment, Household appliances, etc.
With test and Reset buttons, the test button is for safety checks, and manual resetProvides residual circuit protection
P. S.: Following package info for you reference:
P/N single package outer carton dimension QTY / CTN
BKZ0130PW sealed blister card 435*380*226MM 80 PCS
White box
Dongguan Baokezhen Electric Technology Co., Ltd.Was established in July, 1987, locating at the side of high express way, covering 20, 000 square meters area, with about 500 employees, including more than 50 technical engineers, R&D engineers, mould engineers.Our main products are switches & sockets, especially including RCD protected safety socket, RCD fuse spur unit, blender keyboard switch, cooker hood keyboard switch, fans piano switch and so on...We have got CE, BS, EMC, UL, cUL, ETL, VDE, CQC and SEMKO certificates for the above products, as well as ISO9001:2000 certificate in 2003.Meanwhile, in Baokezhen, there is a full set of integrative facilities (including tooling, molding, stamping and assembling machines), a high precision testing instrument and a standard international lab with complete testing instruments.We also establish Baokezhen Hong Kong Branch engaged in development, production, export and import.
Today, Baokezhen has been one of the largest socket & switch manufacturers in China.We have more than 10 production lines and produce 200k PCS switches, 30k PCS wall sockets&30k GFCI plugs every day.Our mission is to provide one-stop solution from design to manufacture.We have excellent management, engineering and production teams.We will always do our best to meet customers' needs, following our principle of "high quality, the best service, enjoying good prestige, managing perpetually".
