Product Specifications
| Prod Model: |
WSSP-2 (13A) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

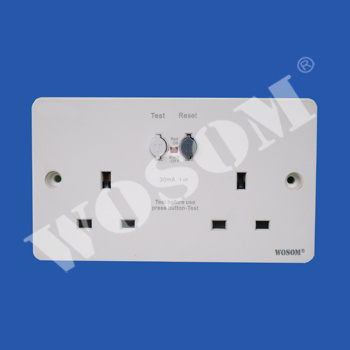

An easily fitted Socket incorporating a Residual Current Device, give much greater safety in the use of electrical appliances against a rick of electrocution.
WSP plastic type can be fitted to a standard box with minimum depth of 25mm.
Designed to be USD in the fixed position only and not mounted outdoors. Press green reset(r)button the indicator flag turns red and indicator light turns on.
Press white/yellow test(t)button the indicator flag turns black and indicator light turns off means the RCD has tripped successfully.
Designed and manufactured in accordance with the relevant clauses fo BS7288, and used with BS1363 plugs fitted with a BS1362 fuse only.
|
Rated voltage |
230V(50Hz) |
|
Maximum operating current |
13A |
|
Tated trip current |
30mA |
|
Trip speed |
40ms |
|
RCD contact break |
Double pole |
|
Cable capacity |
6mm'' |
Yueqing Wosom Electrical Co., Ltd.Is located at Liushi, Wenzhou-"the capital of electric products in China".
Our company is a professional manufacturer of manufacturing all series plastic and metal distribution box, circiut breaker and fuses.We have all the necessary inspection instruments and the advanced testing techniques, and have the certification of ISO9001, CE certificate and CCC certificate.Because of the constantly promoted consciousness of product quality and brand, and the continuously updated market need, we paid great attention to spending capital on production facilities and technical reform.In addition, we brought in senior technicians with rich professional experience to manufacture, research and develop high and low voltage fuse of high level strictly in accordance with IEC(IEC269, IEC282), China(GB15359, GB15166), German(VDE0636, DIN43625), UK(BS2692)and USA(ANSI C37.42) standards and so on.
Due to our products have the characteristics of beautiful appearance, reliable performance, small volume, light weight and the advantages of high breaking capability, good current limiting characteristics, small tolerance of time-circuit protection, they are well sold not only in national but also in Europe, Middle East, South America, southeastern Asia, and so on.
