Electrical Features
Type (wave form of the earth leakage sensed):AC,A,AC~S,A~S
Rated current In :25, 40, 50, 63A
Poles:2P, 4P
Rated voltage Ue : 240/415V
Rated sensitivity In :0.03, 0.1, 0.3A
Insulation voltage Ui:500V
Rated residual making and breaking capacity
Im:500A(In=25A/40A) 630A(In=50/63A)
Short-circuit current Inc=Ic:4500/6000A
SCPD fuse:
Break time under In :≤0.1s
Rated frequency:50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp:4000V
Dielectric TEST voltage at ind. Freq. for 1min:2.5kV
Pollution degree:2
Mechanical Features
Electrical life:2,000
Mechanical life:2,000
Fault current indicator: Yes
Protection degree: I P20
Ambient temperature (with daily average≤35ºC):-5ºC...+40ºC
Storage temperation: -25ºC...+70ºC
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.5 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Dimensions (mm)

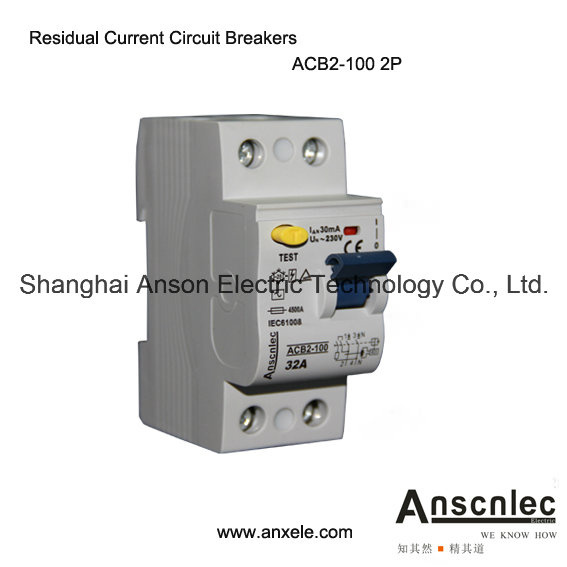

RCCB ACB2-100 |
|
|
|
|
In | Code | QTY/CTN |
0.03A | 0.1A | 0.3A |
2P AC |
25A | 1L61N25003 | 1L61N2501 | 1L61N2503 | 90 |
40A | 1L61N40003 | 1L61N4001 | 1L61N4003 | 90 |
50A | 1L61N50003 | 1L61N5001 | 1L61N5003 | 90 |
63A | 1L61N63003 | 1L61N6301 | 1L61N6303 | 90 |
4P AC |
25A | 1L63N25003 | 1L63N2501 | 1L63N2503 | 45 |
40A | 1L63N40003 | 1L63N4001 | 1L63N4003 | 45 |
50A | 1L63N50003 | 1L63N5001 | 1L63N5003 | 45 |
63A | 1L63N63003 | 1L63N6301 | 1L63N6303 | 45 |
|
|
|
|
|
2P A |
25A | 1L61N25003A | 1L61N2501A | 1L61N2503A | 90 |
40A | 1L61N40003A | 1L61N4001A | 1L61N4003A | 90 |
50A | 1L61N50003A | 1L61N5001A | 1L61N5003A | 90 |
63A | 1L61N63003A | 1L61N6301A | 1L61N6303A | 90 |
4P A |
25A | 1L63N25003A | 1L63N2501A | 1L63N2503A | 45 |
40A | 1L63N40003A | 1L63N4001A | 1L63N4003A | 45 |
50A | 1L63N50003A | 1L63N5001A | 1L63N5003A | 45 |
63A | 1L63N63003A | 1L63N6301A | 1L63N6303A | 45 |
2P AC S |
25A | 1L61N25003S | 1L61N2501S | 1L61N2503S | 90 |
40A | 1L61N40003S | 1L61N4001S | 1L61N4003S | 90 |
50A | 1L61N50003S | 1L61N5001S | 1L61N5003S | 90 |
63A | 1L61N63003S | 1L61N6301S | 1L61N6303S | 90 |
4P AC S |
25A | 1L63N25003S | 1L63N2501S | 1L63N2503S | 45 |
40A | 1L63N40003S | 1L63N4001S | 1L63N4003S | 45 |
50A | 1L63N50003S | 1L63N5001S | 1L63N5003S | 45 |
63A | 1L63N63003S | 1L63N6301S | 1L63N6303S | 45 |
2P A S |
25A | 1L61N25003AS | 1L61N2501AS | 1L61N2503AS | 90 |
40A | 1L61N40003AS | 1L61N4001AS | 1L61N4003AS | 90 |
50A | 1L61N50003AS | 1L61N5001AS | 1L61N5003AS | 90 |
63A | 1L61N63003AS | 1L61N6301AS | 1L61N6303AS | 90 |
4P A S |
25A | 1L63N25003AS | 1L63N2501AS | 1L63N2503AS | 45 |
40A | 1L63N40003AS | 1L63N4001AS | 1L63N4003AS | 45 |
50A | 1L63N50003AS | 1L63N5001AS | 1L63N5003AS | 45 |
63A | 1L63N63003AS | 1L63N6301AS | 1L63N6303AS |
|
