Sharpvision Co., Ltd. >> Rear View System with 7 inches Digital Quad waterproof Monitor (MO-140D, CW-655,CS-406,CW-644,CW-655)

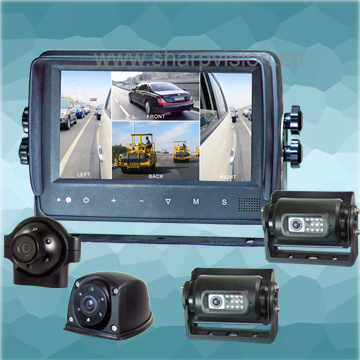

Rear View System with 7 inches Digital Quad waterproof Monitor (MO-140D, CW-655,CS-406,CW-644,CW-655)

Rear View System with 7 inches Digital Quad waterproof Monitor (MO-140D, CW-655,CS-406,CW-644,CW-655)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Product Specifications

Prod Model: MO-140D, CW-655,CS-406,CW-644,CW-655
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 7 inches
Type: Monitoring System
Feature: Waterproof / Weatherproof

Product Description

Car Rear View Monitor System
Touch button monitor features-MO-140D:

7 inches Digital Quad waterproof Monitor, waterproof capacity equal to IP69K standard

Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing; Characters of the menu will not
Inverse when set to mirror image.

Single, dual, triplex, quad, trefoil, Y-split image and PIP functions available.

System format: NTSC/PAL

Four trigger lines; Once a trigger line is activated, image automatically switches to its corresponding camera. Trigger
Priority is available

Auto scan, scan channel and time can be set according to the users' demand.

Reverse warning yardstick, can be adjusted up and down, left and right

Touch screen available, can recognize down, left, right side "swipe"; Support two-point touch to realize channel
Switching.

Support Level 5 LCD backlight adjustment

Easy installation and convenient operation, with innovative functions.

Applicable to indoor / outdoor security systems, vehicle and ship surveillance.

22-Pin: 4 AV inputs, 1 video output, and 1 audio output
Features CW-655:

Three working positions: Protection, Reverse, Rear view

Waterproof capacity equal to IP69K standard

Super wide viewing angle (150° )

Optional: Auto-heating when operation temperature is below 6º C

Working temperature: -20º C~70º C

Mirror / Normal image switch (available to some chips)

Grid line can be turned on and off (available to some chips)

Night-vision function: 11 IR lights

IR distance: 10M

CS-406 features:

Flexible installation: Can be mounted on rear, front, or either side of vehicles

Convenient angle adjustment

Waterproof, shatterproof protection level equals to IP69K.

Super wide viewing angle(150° )

Performs in rugged conditions. Operating temperature: -20º C +70º C

Mirror / Normal image Adjustment (depending on the chips)

Distance label selectable to be open or closed

Night vision available

IR distance: 5m

Audio available

CW-644 Features:

Compact profile

Waterproof and vandalproof

Convenient angle adjustment

Infrared LED light: 5

IR Distance: 5 m

High resolution

Can be mounted on rear, front, or either side of vehicles
>>Company Overview
Sharpvision Co., Ltd is a high-tech enterprise engaged in researching, developing, manufacturing and marketing vehicle rear vision products and surveillance products. With cutting-edge technology and advanced manufacturing facilities, we have become one of the largest suppliers of rear vision products in the world!

>>The pursuit of quality
Sharpvision emphasizes the advanced enterprise management and regards quality as our lifeline. With thorough quality management system and advanced quality testing equipments, we can conduct various comprehensive performance testing to our products, such as "Low and High Temperature Test" "Vibration Test" "Salt Spray Test" "Swing Test" "Waterproof Test" and "Aging Test" etc^ And also we strictly follow the quality control process to grantee the products' stability.

Sharpvision has been certificated with the highest international level of quality management system in auto industry_ISO/TS16949: 2009, and also we are in strict accordance with the EU RoHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, EMARK etc. Besides, Sharpvision has also achieved a Utility Model Patent of "Intelligent Controlled Rear View Camera", and a Design Patent for another three cameras, which bring us a distinguished reputation in the filed of vehicle rear vision products.

>>Premium service
Premium service is the foundation to win trust from customers, so Sharpvision provides professional OEM and ODM services to meet various needs of customers. And also, with the belief of "Growing with customers" and "Customer oriented", we dedicate to manufacturing the best products and offering the most satisfying service, even exceeding the expectation of customers to realize mutual benefits.

>>Excellence and leading

In terms of cameras, Sharpvision is the first to launch cameras with super wide viewing angle and night vision. In recent years, we have independently developed a series of friendly-used cameras with attractive appearance, mini size, auto heater, auto shutter etc. These products ensure us a leading position in this industry and good reputation.

In terms of monitors, our products are equipped with multiple languages operation, multi-split screen, wide voltage input, automatic backlighting buttons and direct power supply to cameras. More importantly, all of the LCD monitors use digital panel. A variety of monitors have realized touch screen and touch button operation, which are favored by the vast numbers of customers.

Our products apply to various kinds of vehicle, such as trucks, buses, ambulances, garbage trucks, fire engines, agricultural vehicles, concrete mixer lorries, excavators, forklifts, road sweepers, cranes and etc. Relying on quality and outstanding styles, Sharpvision products are exported to many developed countries, such as United States, Britain, Germany, Japan and France. We have established long-term mutually beneficial partnership with many world famous enterprises.

>>Humanity Harmony
Sharpvision adheres to the belief of People-oriented, so we provide competitive salary and welfare, equal opportunities of development, harmonious and comfortable working environment. These give employees a sense of stability, satisfaction, achievement and belonging, which in turn lays a solid foundation for our long-run development.

Sharpvision will always stand ready to cooperate with you. Let's grow together!

Our Primary Competitive Advantages
1. Experienced R&D Department
2. Buyer`s Specifications Accepted
3. OEM Capability
4. Production Capability
5. Reliability
6. Large production line
