Product Specifications
| Prod Model: |
Wl-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wl-400 |
| Colour: |
Red |
| Battery Type: |
9.6V Ni-MH 3000mAh |
| Charge Time: |
1 Hour |
| Charger: |
110-240V 50/60Hz |
| Max. Number Of Tying Knots: |
(The Battery of Full Charge) 1200ties (One Ni-MH B |
| Tying Speed: |
0.8second/Knot |
| Wire Type: |
Galvanized Steel Wire |
| Wire Size: |
0.8mm Diameter |
| Gw Of Machine: |
2.1kg |
| Type: |
Construction Shovel |
Product Description

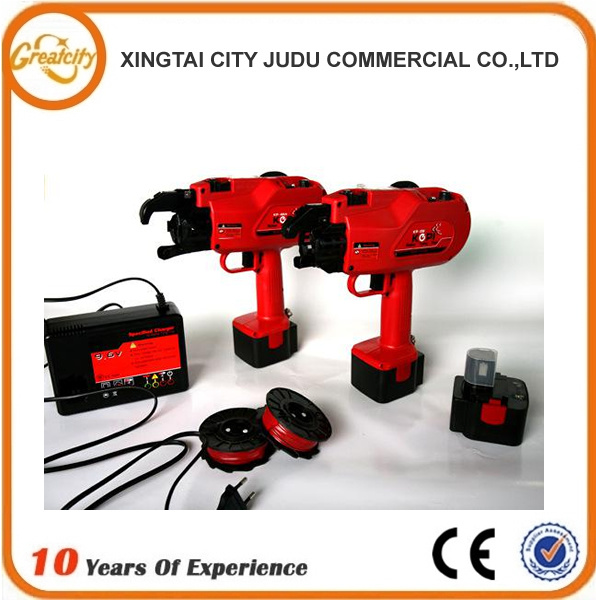

Rebar tier / automatic rebar tying machine / rebar tying tool
product description:
brief introduction of rebar tying machine:
automatic electric rebar tying machine is an intelligent handheld power tools, mainly used for strapping steel structure rapidly, it is high technology integrative product. The biggest feature of Automatic electric rebar strapping machine is fast and convenient. Its efficiency is 5-6 times of the efficiency of labor. It can save a lot of manpower, reducing the labor intensity greatly.our company's products have passed CE, ROHS, etc. Series authentication, and has six patents of utility model ,three patents of appearance design and two EU patent.
technical parameters of rebar tying machine:
model | WL-400 |
| Battery Type | 9.6V Ni-MH 3000mAh |
| Charge time | 1 hour |
| Charger | 110-240V 50/60Hz |
| Max. Number of Tying Knots: |
(the battery of full charge)
1200ties (one Ni-MH battery) |
Tying Speed | 0.8second/knot |
| Wire Type | galvanized steel wire |
| Wire Size | 0.8mm diameter |
| GW of Machine | 2.1kg |
| Packing Size | 408×162×418mm |
The features of rebar tying machine
1.Large range of strapping: strapping diameter as small as 8.0 MM Φ;Wide to Φ 68 mm, adapt to the occasion.
2. The binding strength: the silk is Φ 1.5 MM, to improve the tensile strength of the strapping nodes; the node tensile strength mainly depends on the thickness of tie wire.
3.Small silk consumption: this machine rastically saved consumption of strapping node silkbecause of "back" function , also reduces the cost, and the required wire length is 110 MM to 250 MM.
more pictuers of rebar tying machine:
packing and shipping of rebar tying machine:
packing :packed by export standard wooden case
shipping: by sea , by land ,or by air ,anyway is ok
delievery time:within 3 days
our service:
1. Help you choose the most suitable machine.
2. Making the machine according to your request.
3. Give you machine's details and video for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessories.
6. Free repair whole using life without extra charge.
