Product Specifications
| Prod Model: |
WJ-320S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Automatic Screen Printing Machine |
| Style: |
Screen-process Printing Press |
| Structure: |
Platen Press |
| Color & Page: |
Multi-Colour Printing Press |
Product Description

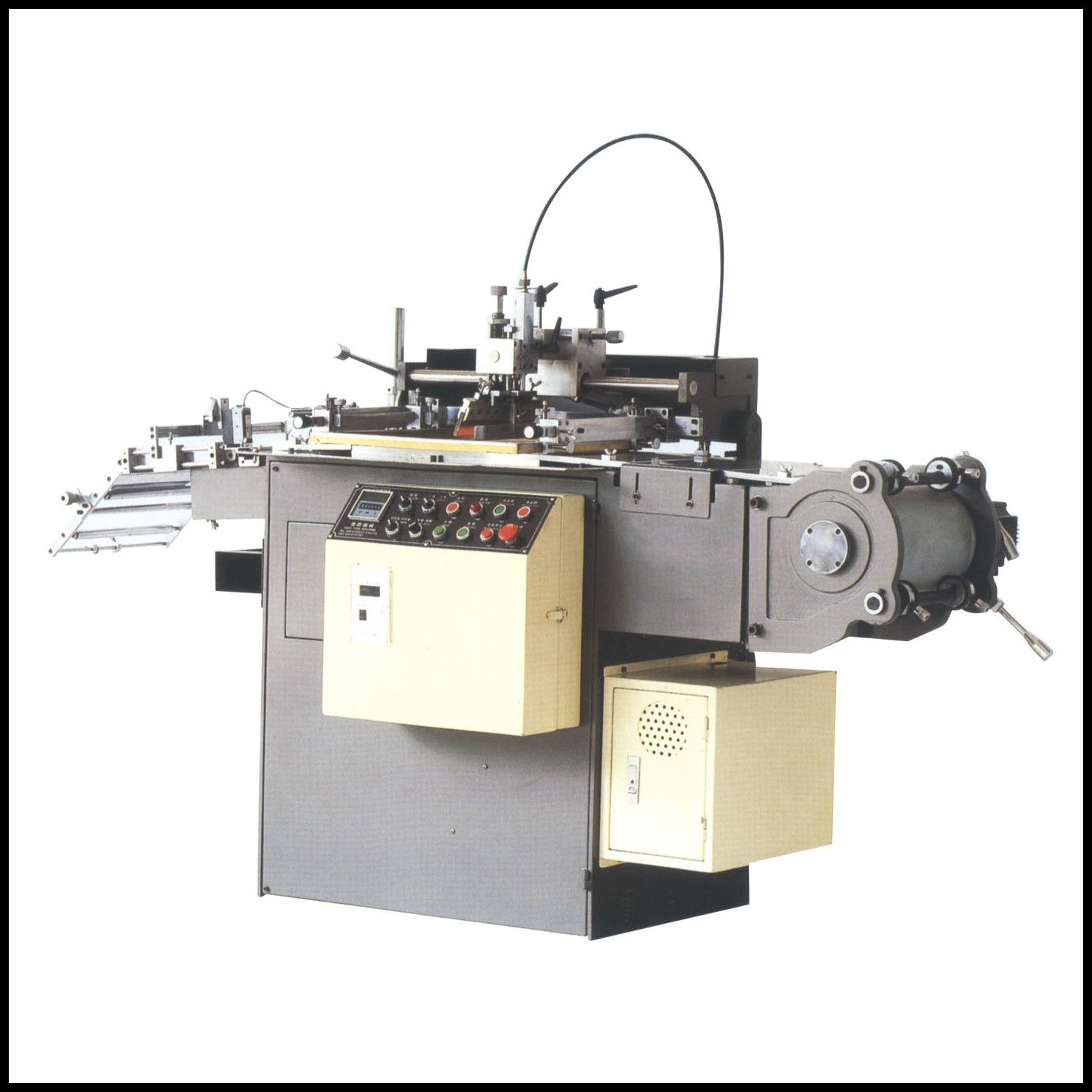

Reel Type Silk Screen Printing Machine (WJ-320)
| Model | WJ320S |
| Max. printing area | 300*300mm |
| Screen frame area | 450*450mm |
| Max. paper width | 32mm |
| Printing speed | 0-4200 times/hour |
| Power supply | 220/0.75 V/KW |
Product Description:
Controlling System: The main controlling system adopts imported electric elements which makes the towing of the paper precise. The machine is easy for operation and stable.
Screen Printing Device: The moving of the printing head adopts pneumatic device and the printing position is traced by photoelectric detectors-precise, stable and easy for adjustment.
The machine is suitable for PVC, PET, OPP and Polyester reel printing.
Reel Type Silk Screen Printing Machine (WJ-320)
Characteristics:
Full automatic muti-color printing sensor positioning, color registration repeatedly, computer controlled, simple in operation, accurate in coloring, so its able to improve the printing quality.
Flexible setup of printing speed, counting printing number, and automatic shutdown as per set number.
Standard functions: Automatic paper feeding, printing, CNC extensioin, drying and rewinding.
Basic configurations: Paper feeding machine, main machine, hot air drier machine, and a standard toolkit.
Optional configurations: UV drying system, paper slitting machine, and rewinder.
Application materials: Sticker paper, adhensive tapes, PVC, PET, ribbons, aluminum foils, soft circuit boards, mobile telephone keypad, and other packaging materials.
Web Widthmm320
Screen Frame. Mm450*450
Max. Printing Area. Mm300*300
PaperRange gsm80-300
Printing Speedtimes/min4200
Main Powerkw0.75
Ovenkw4.5
Printer Dimension(LXWXH)mm2600*950*1450
Printer Weightkg800
Oven Dimensionmm1750*600*1800
Oven Weightkg300
Voltage and Current Frequency 380 V -Three phase; 50 Hz
