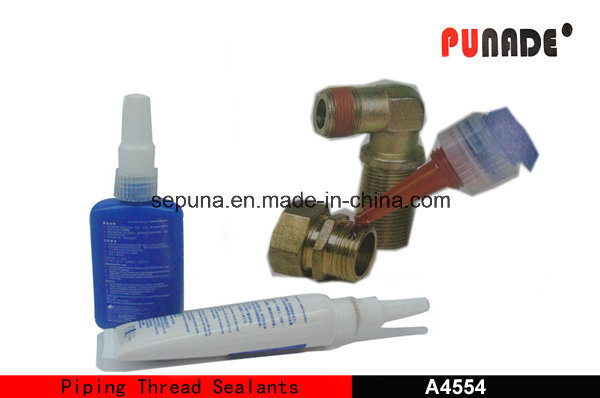

Refrigerant Pipeline Sealing Thread Sealant (SA4554)
SA4545 is one component low intensity anaerobic thread sealant, no mixing is needed. It is designed for locking and sealing of metal pipes and fitting. The product cures when confined in the absence of air between close fitting metal surfaces.
Features
1. One component, requires no mixing
2. Service to strong chemicals.
3. Anaerobic sealant, not used in pure oxygen and/or oxygen rich systems
Professions involved
1. Sealing of metal pipes up to M80(NPT)
2. Providing maximum solvent resistance on threaded fittings.
3. Sealing of pipe thread on refrigeration systems, plug and tubular radiator.
Operation
1. For better results, clean all surfaces(external and internal) with a cleaning solvent and allow to dry.
2. Apply a 360 bead of product to the leading threads of the male fitting, leaving the first thread free. Force the material into the threads to thoroughly fills the voids. For bigger threads and voids, adjust product amount accordingly and apply a 360 bead of product on the female threads also.
3. Properly tightened fitting will seal instantly to moderate pressures. For maximum pressure resistance and solvent resistance allow the product to cure a minimum of 24 hours.
4. Shake up after long-term deposit.
Package
50ml/250ml per bottle
Storage
1. Kept in cool and dry place(8-28º C), the shelf life is 24 months.
2. Not restricted. Looking out the leakage in the process of transportation.
3. Confirming the condition of the products that out of deadline before using.
Uncured
|
Testing Term |
Testing Standard |
Typical Value |
Range |
|
Appearance(uncured) |
|
Red Liquid |
|
|
Chemical Type |
|
Methacrylate Ester |
|
|
Viscosity(mPa.s) |
GB/T2794-1995
Brookfield RVF
3#rotor 20rpm |
2500 |
1500-3500 |
|
Density(g/cm 3 ) |
GB/T 13354-1992 |
1.05 |
1.00-1.10 |
|
Flash Point(ºC) |
SH/T0733-2004 |
|
>93 |
|
Maximum thread diameter |
|
M80 |
|
|
Fixed Time(min) |
|
20 |
10-30 |
Fully
Cured |
Fully cured at RTV(h) |
|
24 |
|
|
Maximum sealing pressure(MPa) |
|
71.0 |
|
|
Strength for remove |
|
Medium |
|
|
Sealing pressure of work time |
|
Medium |
|
|
Operation Temperature |
|
|
-50-150 |
Chemical/Solvent Resistance
Aged under conditions indicated and tested at 22ºC.
|
|
|
% of Initial Strength |
|
Environment |
ºC |
100 hr |
500 hr |
1000 hr |
|
Motor Oil |
125 |
100 |
100 |
100 |
|
Unleaded Gasoline |
22 |
100 |
100 |
95 |
|
Ethanol |
22 |
100 |
100 |
90 |
|
Acetone |
22 |
100 |
95 |
95 |
|
R134a |
22 |
100 |
95 |
95 |
|
R141b |
22 |
100 |
95 |
95 |
|
Water/Glycol |
87 |
100 |
100 |
100 |
