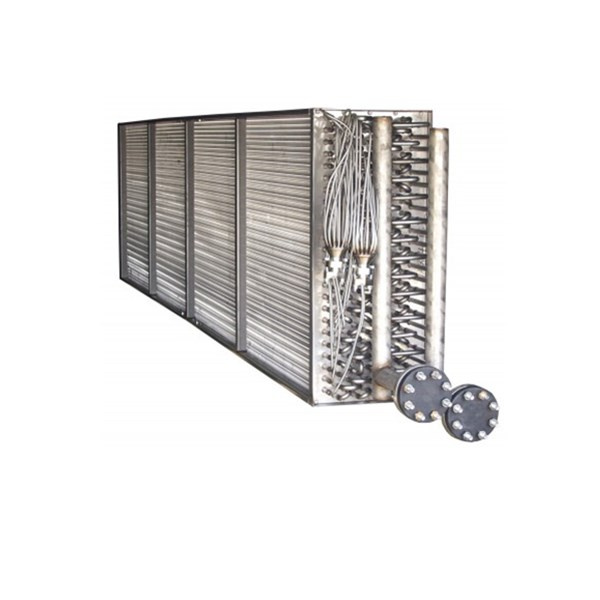

Refrigeration Ice Maker Air Cooled Evaporator (HR-EP-007)

Name: Refrigeration Ice Maker Air Cooled Evaporator (HR-EP-007)
Brand: china-manufacturer-directory.com
SKU: 719152765
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 50-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Ice maker air cooled evaporator
Used for ice maker
Copper tube dia. 7mm, 7.94mm, 9mm, 9.52mm
Smooth or inner grooved tube

Suitable for R134A, R22, R404A, R407C refrigerant and so on

1. Material: Copper, aluminum, galvanized plate

2. Aluminum foil: Hydrophilic or bare

3. Fin type: Louver or flat fin or corrugated fin.

4. Copper pipe: Diameter 7mm, 7.94mm, 9mm, 9.52mm, grooved or smooth tube

5. Side plate: Galvanized plate or aluminum plate

9. Pitch of holes and pitch of rows: 25*21.65MM and 12.7*19.05MM

10. Did gas examination under 3.0Mpa air pressure to ensure the tightness.

11. Widely used in refrigeration industry, cold room and other system.

12. We can supply products as per customized samples or drawing.

13. Producing procedure: Tube bending, punching fin, expanding, digressing, drying
Welding, leakage test, bending, inspection, packing

Note: For further information please contact us.

Item	Evaporator Type	Operation medium	Operation pressure (MPa)	Application
1	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Cold/hot water	≤1.6	Used for combined air handling unit, fan coil etc air conditioning devices
2	Φ18/Φ20 Steel pipe winding with steel sheet	Steam	≤0.2	Used for combined air handling unit, fan coil etc air conditioning devices
3	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Brine	≤1.6	Used for heat transfer in cold storage and all kinds of low temperature systems
4	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	Ethylene glycol	≤1.6	Used of energy recovery and low temperature system devices
5	Φ16 Copper tube with aluminium fin	Ice mud	≤1.6	Used for dry operation condition, fresh air dehumidification etc systems
6	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R22	≤1.9	Used for industry and commerce air conditioning system
7	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R407C	≤1.9	Used for industry and commerce air conditioning system
8	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R134a	≤3.1	Used for vehicle and vessel etc transportation devices

Prod Model:	HR-EP-007
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania
Tube Material:	Copper, Aluminium, Steel, Stainless Steel Be Viabl
Fin Material:	Copper, Aluminium, Steel, Stainless Steel Be Viabl
Design Serice:	Be Viable
Certification:	ISO9001
Fin Thickness:	0.105mm-0.4mm
Liquid Flow Rate:	2.5m/S
Tube Type:	Smooth Tube, Thread Tube
Maximum Working Pressure:	3.0MPa
Structure:	Fin Type Heat Exchanger
Tube Wall Thickness:	0.35mm
Principle:	Regenerative Heat Exchanger
Structure Material:	Metal Material
Application:	Cooler
Heat Transfer Surface:	Tubular Heat Exchanger

Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.

Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
