Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

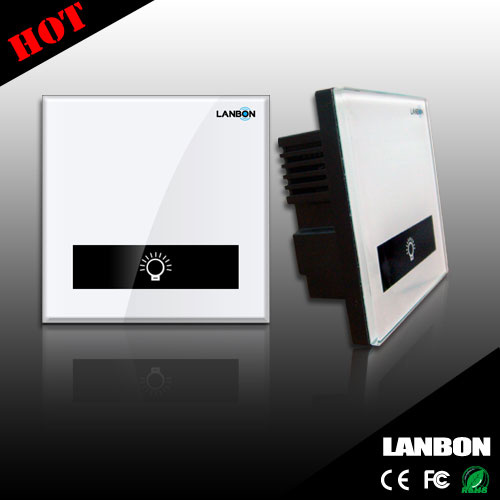

Switch
White ABS+ Deluxe Black Plexiglas Panel
Touch screen
Different patterns and color are available
Available for electronic product and control by remote/wire/wireless way (off/on light)
Functions:
1. Touch screen: Scene switch, each control switch, the remote controller adopts the touch- sensitive screen to be operated, insulation materials, and high-performance guarantee.
2. State display: The LED lamp will display all the light and the use of electrical state.
3. No Touch Point: Will not cause touch spark, increase the use of safety.
4. Component Material: Posts copper materials, import environmental protection components.
5. Power-off protection: When power failure, it will automatically turn off the light.
6. Lower power: The standby power consumption is less than 80 micro AMP, energy-saving lamps do not flash.
7. Lock function: Lock switch, this room is no longer controlled by the other, don't disturb your work, and rest.
8. Control signal: Between the switch and switch, the switch and remote control all use the wireless two-way communication.
9. System: With a several mutual control switch, remote control composed wireless local area network. All switches, remote control can be carry on communication and interaction. The switch can control the switch, and the switch state can be fed back to the remote control.
10. Remote Distance: 80 meters distance can be seen.
11. Wireless Frequency: 433MHz/315MHz, civil standard frequency. Do not harmful to the human.
12. Function scalable: Install the smart gateway, can be achieved computer, network, mobile phone control.
|
Specification |
Two-gang switch |
Standby Consumption |
0.016W |
|
Material |
Plexiglas panel |
Rated Voltage |
AC 100-250V 50/60Hz |
|
Rated Current |
Each 5A |
Receiving Frequency |
315MHz/433MHZ etc. |
|
Standby Current |
< 60uA |
Load types |
incandescent, lamps, etc. |
|
Size |
|
Receiving Sensitivity |
-95db |
|
Temperature |
-40° C~+70° C |
Rated Load |
Resistive: 600W, Sensibility: 200W |
|
Living-Life |
100, 000 times |
Over-Current Protection |
3A Protective Tube |
