Product Specifications
Product Description
Apply to all kinds of vehicle winch, marine winch, industrial winch, it is Stable performance, strong anti-jamming.

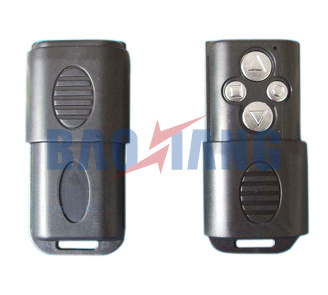

Transmitter
Electrical Parameter:
1. Operation Voltage: DC12V 23A
2. Operation Current: ≤ 8mA
3. Operation Frequency: 315MHz/433.92MHz
4. Modulation Mode: ASK, FM
5. Transmit Distance: >100m
6. Coding Type: Fixed Code/Memory Code
7. Transmitting Power: ≤ 10mW
8. Operation Temperature: -30-+80
9. Defence Grade: IP44
Receiver
Electrical Parameter:
1. Operation Voltage: DC12V, DC24V, DC36V, DC48V
2. Receiver Sensitivity: -108~-116dBmSuperhet, Super-regeneration
3. Output Power: 120W-720W 10A-45A Relays provide to choose
4. Control Ways: One
5. Demodulation Mode: Fixed Code, MCU
6. Receiver Frequency: 315MHz/433.92MHz/868MHz
7. Operation Temperature: -30-+80
8. Dimension: 70*42*22MM
Application:
Apply to all kinds of vehicle winch, marine winch, industrial winch, it is Stable performance, strong anti-jamming and good work in different envirenment.
