Product Specifications
Prod Model: |
DDS450J |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Anti Fire Bakelite Remote for Electric Meter |
Current: |
10/60A |
Voltage: |
240V |
Frequency: |
50/60Hz |
Export Country: |
All Country Remote for Electric Meter |
Remote For Electric Meter Function: |
Measure Consumption Power |
Remote For Electric Meter Brand: |
Electric Meter Parts Client Design |
Handle Sample Time: |
5 Days |
IEC Standard: |
IEC62053-21 |
Color: |
Client Design |
Type: |
Energy Meter |
Display: |
Indicator |
Electric Equipment: |
Single-phase |
Theory: |
Static Meter |
Installation: |
Direct Connected |
Usage: |
Reactive Energy Meter |
Measured Signal: |
Pulse Peak |
Power Meter Connection: |
Terminal |
Product Description

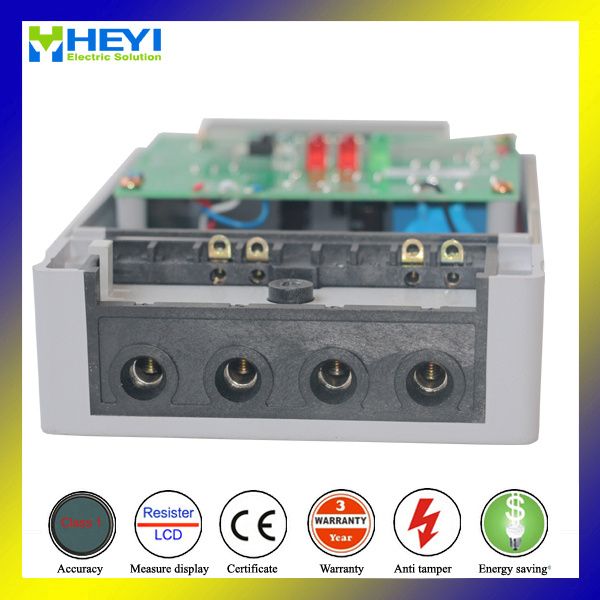

remote for electric meter single phase solar energy lcd display
10/40A 230V 50HZ
Transparent polycarbonate cover ,anti fire plastic case
Short transparent terminal cover with plastic meter seal
pcb with power transformer
current transformer for signal sampling
remote for electric meter single phase solar energy lcd display specification
Meter type | remote for electric meter single phase solar energy lcd display |
Approval | IEC62053-21 (indoor meter) |
Measuring scope | Active energy |
Class Index | Class 1 and Class0.5 |
Register/LCD display | drum-register with 5+1 digit (10Wh)/LCD 7 No. |
Network | 1 phase 2 wire |
Reference voltage/frequency | 110-120V or 220-240V 50-60Hz |
Operating voltage range | -20% to +15% |
Energy meter Power consumption | 0.2VA 20A 0.8W 8VA max. 230V |
Basic current | 10(A), 15(A), 20(A) |
Maximum current | 40(A), 60(A), 100(A) |
Starting current | 0.4% lb for Class 1 (EN61036: 1996) |
Meter constant | 800 imp / kWh,1600rev/kwh |
Indicators | Forward energy indicated by red LED (unmodulated at 8kHz) Reverse energy indicated by green LED |
Limit temperature range of operation | -20°C to +55°C |
Limit transportation range for storage and transport | -25°C to +70°C (storage and transport of the meter should only be at the extremes of this temperature range for a max. period of 6 hours) |
Degree of protection (BS EN60529) | IP51 |
Terminal material,and screw | Brass/stainess |
Wiring capacities | Main cables must be a minimum of 25mm2 and up to a maximum of 35mm2 (copper) |
Material | Meter case, base and terminal cover - recyclable Polycarbonate, plastic, bakilite |
Terminal cover seal | Plastic meter seal with bar code |
remote for electric meter single phase solar energy lcd display advantage
1.20 years global leading profession manufacture of energy meter
2.class 0.5~ class 1.0 high accuracy measure electrical ,low power loss
3.Test data: each meter will match relative test data
4.Fast delivery : you will get the order when you need it
5.wave welding PCB with auto machine
6.OEM is warmly welcome
7.3 line assemble line ,10 pcs auto test bench for control accuracy ,10pc aging test which confirm the register working well
8.Convenient : 45 minutes to wenzhou airport
remote for electric meter single phase solar energy lcd display function
1. High measure user consumption power
2.low power loss
3.uni direction register ,for anti tamper
4.no load ,the meter will caculate power
remote for electric meter single phase solar energy lcd display Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
remote for electric meter single phase solar energy lcd display Packing information
1. Inside foam package ,outside strong paper package
2. 20pcs/per CTN
3. G/N.W: 20/19kg
4. We can packing as your required,good looking design
Why choose remote for electric meter single phase solar energy lcd display
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
