Remote Type Variable Area Liquid Flow Meter for Water
| Price: |
US $ 200-2000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Tosilon Remote type Variable Area Liquid Flow Meter for Water (Ex Approved)Design and Manufacturing according to ATEX, RoHS StandardIntroduction TFLC is specialized in Pipe flow measurement of Liquid, Gas and Steam. According to the pushing force of the media, the float inside TFLC will move a distance which is in proportion to the pushing force. The Magnetic Drive System of TFLC will calculate the flow value. The flow value can be directly shown on the Dial Indicator of the enclosure, or can be processed by the TFLC PCB and output current signal. In addition, TFLC is available for setting lower and upper flow-rate alarm.Features- Well Stamping Molded and Polished, meet sanitary standard
- Intrinsic Safety + Explosive Proof, 4-20mA (2-wire) / HART
- Alarming Switch is optional
- Lithium Battery is optional
General Technical Data (For details, please contact Tosilon)Media Available
Liquid, Gas, Steam
Measuring Range (media in standard condition)
Water: 20 0C (10-300000) L/h
Air: 0.1013MPa, 20 0C (0.7-3000) m3/h
Class of Accuracy
1.0 F.S, 1.5 F.S, 2.0 F.S, 2.5 F.S
Intrinsic Safety Parameter

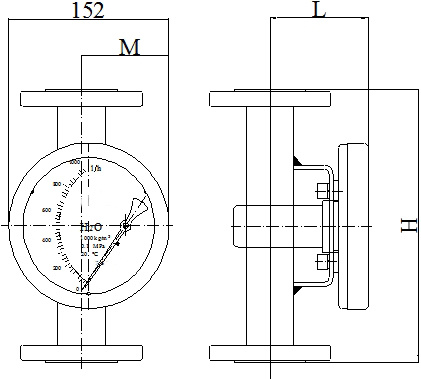

Ui=28V Ii=93mA Pi= 0.65W Ci≤ 5nF Li =0mHOutline Structure
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Model | Measuring Tube | Flange | Float |
FLC/PI, FLC/UP
FLC/HI, FLC/BO
FLC56/SO | 304/304SS, 304L/304LSS
316/316SS, 316L/316LSS
317/317SS, 317L/317LSS | 304/304SS, 304L/304LSS
316/316SS, 316L/316LSS
317/317SS, 317L/317LSS | 304/304SS, 304L/304LSS
316/316SS, 316L/316LSS
317/317SS, 317L/317LSS, Al, Ti |
| FLC65/SP | 1Cr18Ni9Ti, (PTFE-Lining) | 1Cr18Ni9Ti | PTFE, Hastelloy-B1, B2, C4, Ti |
| FLC65/PV | PV | PV | PV |
| FLC65/PP | PP | PP | PP |
| FLC65/Ni | Hastelloy-B1, B2, C276, N6, N10 | Hastelloy-B1, B2, C4, N6 | Hastelloy-B1, B2, C4, Ti, N6 |
| FLC65/Ti | Ti | Ti | Ti, Hastelloy-B1, B2, C4 |
| FLC65/Zr | Zr | Zr | Zr |
| FLC65/Cu |
|
| Cu |
| FLC65/AI |
|
| AI |
| Prod Model: |
TFLC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Media Available: |
Liquid, Steam |
| Measuring Range: |
(10-300000) L/H, as Required |
| Nominal Pressure: |
Dn15~Dn50 Standard: 1.6mpa~4.0mpa, as Required |
| Process Connection: |
Flange, Standard: DIN2501, ANSI, JIS, as Required |
| Electrical Connection: |
1/2 NPT, 3/4 NPT, 1/2g, 3/4G, M20X1.5, as Required |
| Inlet Pipe Diameter: |
Above 5D |
| Outlet Pipe Diameter: |
Above 250mm |
| Enclosure Protection Grade: |
IP67 |
| Accuracy: |
?à0.6-1% |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
DN10-50 |
| Sensor: |
Tube/Flange |
| Type: |
Variable Area Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
