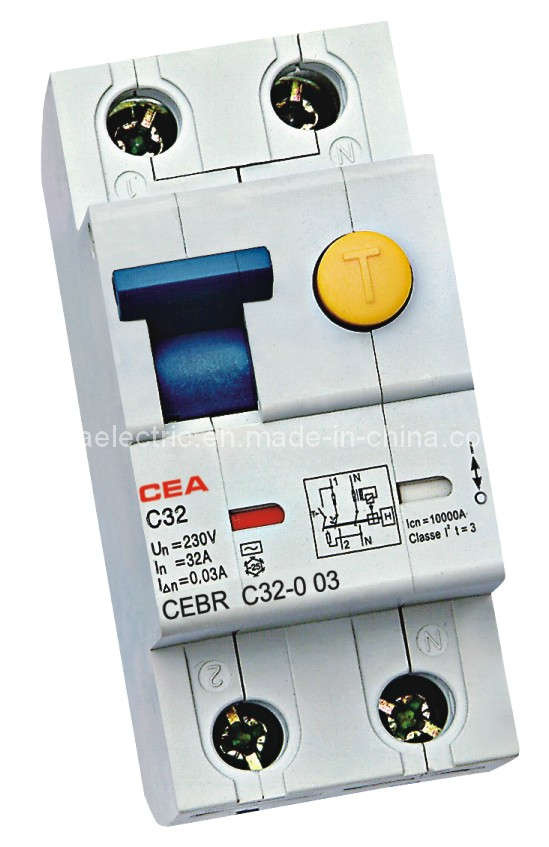

CEBR Earth Leakage Circuit Breaker
Main features:
Combined electronic type RCD/MCD device
High breaking capacity: 10KA
Line voltage-independent tripping
Compatible with standard busbar
Twin-purpose terminal(lift/open-mouthed)above and below
Switch position indicator red-green
Switching toggle(MCB component)in colour designationg the rated current
Busbar positioning optionally above or below
Comprehensive range of accessories suitable for subsequent installation
Electrical technical data:
| Standards | IEC / EN 61009 |
| Tripping time | Instantaneous |
| Type G 10 ms delay |
| Rated voltage | 230V 50Hz |
| Operational voltage range | 196-253V |
| Rated tripping current | 30, 100, 300mA |
| Rated non-tripping current | 0.5In |
| Sensitivity | Type A and type AC |
| Selectivity class | 3 |
| Rated breaking capacity | 10kA |
| Rated current | 6-40A |
| Characteristic | B, C |
| Maximum back-up fuse(short circuit) | 100Agl(> 10kA) |
| Endurance | electrical life | > 4000 operating cycles |
| mechnical life | > 20000 operating cycles |
![]()
![]()
![]()
![]()
Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.
The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
