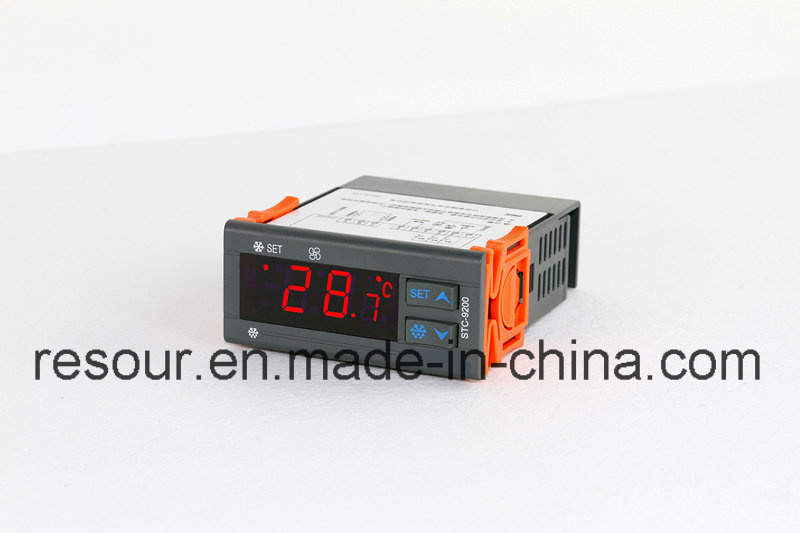

Resour Digital Temperature Controller for Refrigeration.

Specifications

1. More model in different function can be chose
2. Easy operation
3. Reliable performance


Feature:

·Temperature Measurement and Display of Controlled Subject.
Resolution ratio is 0.1ºC;

·Set-up of minimum of temperature & temperature differenceand open & close control of refrigeration compressor;

·Set-up of freezing time and defrosting time and automatic controlling of defrosting;

·Set-up of termination temperature of defrost and protection of defrost over temperature;

·Real-time display of freezing temperature, defrost temperature, freezing time and defrost time.
·Forced defrost and stop of forced defrost by hand;

·Protection for three minutes to delay when compressor stops.

·Trouble Display of Temperature Sensor.


Technical parameter

·Temperature Measurement Range,-50-+50ºC;

·Temperature Setting range,  Min Temperature,-50-+50,Temperature Difference,1-19ºC (Min temperature plus temperature difference should be less than 50ºC);"·Freezing Time,0-99 hour; Defrosting Time, 0-99min;

Defrosting Final Temperature, 0-50ºC;"

·Temperature Measurement Accuracy, Display Resolution 0.1ºC;

·Relay Contact point Capacity,250V AC,6A(Resistive);

·Working Power Supply, 220V/ 50Hz, power consumption less than 3W;

·Instrument panel Size,96mmx54mm(heightxwidth);
·Hole Size,92.5mmx50.5mm.
