Product Specifications
| Prod Model: |
Raspberry Pi |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong China (Mainland) |
| Brand Name: |
Shanhai |
| Module Number: |
Raspberry Pi |
| Supply Voltage: |
1.5V-6V |
| Dissipation Power: |
1W-6W |
| Operating Temperature: |
-40c ~ 125c |
| Category: |
Module |
| Lead Free Status: |
Lead Free / RoHS |
| Condition: |
Brand New with Original Manufacturer |
| Packaging: |
Reel Tray Tube |
Product Description

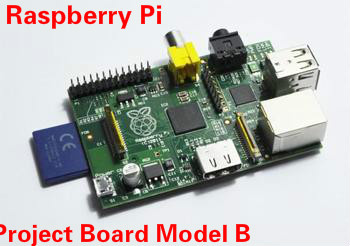

Rev 2.0 512 ARM Raspberry Pi Project Board Model B
Product Description:
The Raspberry Pi is a single-board computer developed in the UK by the Raspberry Pi Foundation. The Raspberry Pi is a credit-card sized computer that plugs into your TV and a keyboard. It's a capable little PC which can be used for many of the things that your desktop PC does, like spreadsheets, word-processing and games. It also plays high-definition video
The design is based around a Broadcom BCM2835 SoC, which includes an ARM1176JZF-S 700 MHz processor, VideoCore IV GPU, and 256 Megabytes of RAM. The design does not include a built-in hard disk or solid-state drive, instead relying on an SD card for booting and long-term storage. This board is intended to run Linux kernel based operating systems.
The Raspberry Pi use Linux-kernel based operating systems. Debian GNU/Linux, Iceweasel, Calligra Suite and Python are planned to be bundled with the Raspberry Pi. The Raspberry Pi does not come with a real-time clock, so an OS must use a network time server, or ask the user for time information at boot time to get access to time and date info for file time and date stamping. However a real time clock (such as the DS1307) with battery backup can be easily added via the I2C interface.
Data Reference:
|
SoC Broadcom BCM2835 (CPU, GPU, DSP, and SDRAM) |
|
CPU |
700 MHz ARM1176JZF-S core (ARM11 family) |
|
GPU |
Broadcom VideoCore IV, OpenGL ES 2.0, 1080p30 h.264/MPEG-4 AVC high-profile decoder |
|
Memory (SDRAM) |
512 Megabytes (MiB) |
|
Video outputs |
Composite RCA, HDMI |
|
Audio outputs |
3.5 mm jack, HDMI |
|
Onboard storage |
SD, MMC, SDIO card slot |
