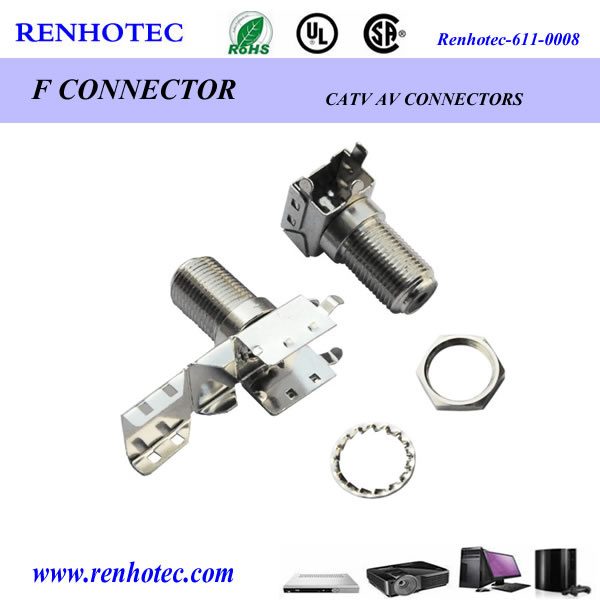

90 Degree F Type Female Connector Right Angle
F-Type connector series is a high performance, cost competitive threaded connector series. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.
| Major Technical Characteristics |
| Temperature Range | -40 to +60 dregree |
| Vibration | 100m/S2 (10 to 500 Hz), 10G |
| Impendance | 75ohm |
| Frenquency Range | DC-1GHZ |
| Working Voltage | 170V r.m.s at sea level |
| Workstandinging Voltage | 500V r.m.s at sea level |
| Center Contact Resistance | ≤10Mohm |
| Outer Contact Resistance | ≤5Mohm |
| Insulation Resistance | ≥1000Mohm |
| Center conductor Retention Force | ≤0.2N |
| Insertion Loss | ≤0.20dB/3GHz |
| Voltagge Standing Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass............Nickel |
| Insulator | POM..............White |
| Contact Pin | Brass............Nickel |
| Suitable cables |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
Renhotec offers many types of F type connectors. PCB mount F female connector/ F type male cable connector/Flange chassis mount F type connectors/ Straight right angle F type connector/ Crimp solder compression type F connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
