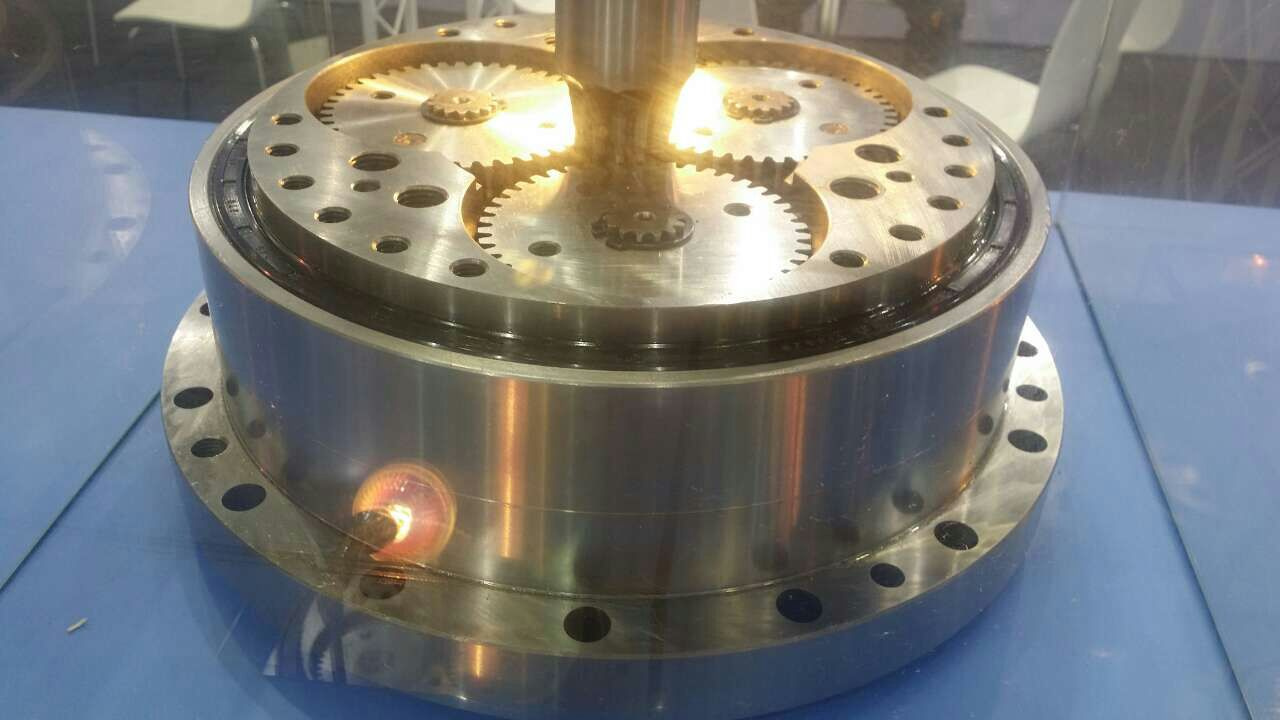

Robotic RV Reduction Gear
| Price: |
US $ 500-2000/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Product Specifications
| Prod Model: |
RV-50C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
High Precision |
| RV Series: |
C Series |
| Ratio: |
37.28 |
| Backlash: |
1-3 Arc -Min |
| Efficiency At Transmission: |
80-90% |
| Lifetime: |
5000 Hours Under Rated Power |
| Mounting Position: |
Horizontal Mounted,Vertical Mounted |
| Manufacturing Method: |
Cut Gear |
| Toothed Portion Shape: |
Curved Gear |
| Type: |
Circular Gear |
Product Description
| Robot RV Reducer Specifications for JHRV-C Series,JHRV-E Series |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JHRV-C Series | Output speed (r/min) | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | Bending torque rigidity representation value | permissible Bending torque | The maximum permissible torque momently | permissible highest output speed | Start, stop permissible torque | The maximum permissible torque momently | idling | Spring constant representation value | inertia bending Torque(I=GD2/4)Reducer monomer | inertia bending Torque(I=GD2/4)Center of standard gear | Weight Reducer monomer |
| Model |
| Speed ratio of a discrete reduction gear (R1) | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity |
| Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm/arc.min.(kgf-m/arc.min) | Nm (kgf-m) | Nm (kgf-m) | r/min | Nm (kgf-m) | Nm (kgf-m) | MAX arc.min | Nm/arc.min.(kgf-m/arc.min) | kg- | kg- | Kgs |
| JHRV-10C |
| 28.5 | 136 (13.9) | 0.09 | 111 (11.3) | 0.16 | 98 (10) | 0.21 | 90 (9.17) | 0.25 | 84 (8.58) | 0.29 | 80 (8.12) | 0.34 | 73 (7.45) | 0.41 | 68 (6.97) | 0.47 | 65 (6.6) | 0.54 | 421 (43) | 686 (70) | 1372 (140) | 80 | 245 (25) | 490 (50) | 1 | 47 (4.8) | 1.34 x 10-5 | 0.678 x 10-3 | 4.6 |
| JHRV-27C |
| 35.38 | 368 (37.5) | 0.26 | 299 (30.5) | 0.42 | 265 (27) | 0.55 | 243 (24.8) | 0.68 | 227 (23.2) | 0.79 | 215 (21.9) | 0.90 | 197 (20.1) | 1.10 | 184 (18.8) | 1.29 | 174 (17.8) | 1.46 | 1068 (109) | 980 (100) | 1960 (200) | 60 | 662 (67.5) | 1323 (135) | 1 | 147 (15) | 0.628 x 10-4 | 0.563 x 10-3 | 8.5 |
| JHRV-50C |
| 33.46 | 681 (69.5) | 0.48 | 554 (56.5) | 0.77 | 490 (50) | 1.03 | 450 (45.9) | 1.26 | 420 (42.9) | 1.47 | 398 (40.6) | 1.67 | 366 (37.3) | 2.04 | 341 (34.8) | 2.38 |
|
| 1960 (200) | 1764 (180) | 3528 (360) | 50 | 1225 (125) | Bolt Fastening 2450(250) Hole bolt Fastening 1960(200) | 1 | 255 (26) | 1.82 x 10-4 | 0.363 x 10-2 | 14.6 |
| JHRV-100C |
| 36 | 1661 (169) | 1.16 | 1353 (138) | 1.89 | 1198 (120) | 2.51 | 1078 (110) | 3.01 | 968 (100) | 3.38 | 930 (95) | 3.90 | 877 (90) | 4.90 |
|
|
|
| 4219 (430) | 3675 (370) | 7350 (750) | 35 | 2940 (300) | Bolt Fastening 7350(730) Hole bolt Fastening 5650(560) | 1 | 760 (76) | 0.57x 10-3 | 1.19x 10-2 | 23.5 |
| JHRV-200C |
| 37.28 | 2724 (278) | 1.9 | 2215 (226) | 3.09 | 1961 (200) | 4.11 | 1803 (184) | 5.04 | 1686 (172) | 5.88 | 1597 (163) | 6.69 |
|
|
|
|
|
| 9800 (1000) | 8820 (900) | 17640 (1800) | 30 | 4900 (500) | Bolt Fastening 2450(250) Hole bolt Fastening 1960(200) | 1 | 980 (100) | 0.995x 10-3 | 1.94x 10-2 | 55.6 |
| JHRV-320C |
| 35.61 | 4361 (445) | 3.04 | 3538 (361) | 4.94 | 3136 (320) | 6.57 | 2881 (294) | 8.05 | 2690 (275) | 9.41 |
|
|
|
|
|
|
|
| 12740 (1300) | 20580 (2100) | 39200 (4000) | 25 | 7840 (800) | 15680 (1600) | 1 | 1960 (200) | 0.68 x 10-2 | 0.405x 10-1 | 79.5 |
| JHRV-500C |
| 38.59 | 6811 (695) | 4.75 | 5537 (56.5) | 7.73 | 4900 (500) | 10.26 | 4498 (459) | 1256 |
|
|
|
|
|
|
|
|
|
| 24500 (2500) | 34300 (3500) | 78400 (8000) | 20 | 12250 (1250) | 24500 (2500) | 1 | 3430 (350) | 0.98x 10-2 |
| 154 |
|
|
|
| JHRV-E Series | Output speed (r/min) | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | Bending torque rigidity representation value | permissible Bending torque | The maximum permissible torque momently | permissible highest output speed | Start, stop permissible torque | The maximum permissible torque momently | idling | Spring constant representation value | Tooth Width | inertia bending Torque(I=GD2/4)Reducer monomer | Weight Reducer monomer |
| Model | Speed Ratio | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity |
| Shaft Rotation(R) | Shell Rotation | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm (kgf-m) | kW | Nm/arc.min.(kgf-m/arc.min) | Nm (kgf-m) | Nm (kgf-m) | r/min | Nm (kgf-m) | Nm (kgf-m) | MAX arc.min | Nm/arc.min.(kgf-m/arc.min) | Mm | kg- | Kgs |
| JHRV-6E | 49 | 48 | 101 (10.3) | 0.07 | 81 (8.34) | 0.11 | 72 (7.39) | 0.15 | 66 (6.78) | 0.19 | 62 (6.34) | 0.22 | 58 (6.00) | 0.25 | 54 (5.50) | 0.3 | 50(5.15) | 0.35 | 47 (4.87) | 0.4 | 117 (12) | 196 (20) | 392 (40) | 100 | 117 (12) | 294 (30) | 1.5 | 20 (2) | 6 | 3.75x10-6 | 2.5 |
| 58.78 | 57.78 | 2.60x10-6 |
| 71 | 70 | 1.84x10-6 |
| 86.71 | 85.71 | 1.63x10-6 |
| 107.69 | 106.69 | 1.09x10-6 |
|
| 0.79x10-6 |
| JHRV-20E | 69 | 68 | 231 (23.6) | 0.16 | 188 (19.2) | 0.26 | 167 (17) | 0.35 | 15.3 (15.6) | 0.43 | 143 (14.6) | 0.5 | 135 (13.6) | 0.57 | 124 (12.7) | 0.7 | 115(11.8) | 0.81 | 110(11.2) | 0.92 | 372 (38) | 882 (90) | 1764 (180) | 75 | 412 (42) | 833 (85) | 1 | 49 (5) | 8 | 1.08x10-5 | 4.7 |
| 81 | 80 | 0.65x10-5 |
| 96 | 95 | 0.45x10-5 |
| 115.78 | 114.78 | 0.37x10-5 |
| 141 | 140 | 0.29x10-5 |
| 177 | 176 | 0.24x10-5 |
| JHRV-40E | 69 | 68 | 572 (58.4) | 0.4 | 165 (47.4) | 0.65 | 412 (42.0) | 0.86 | 377 (38.5) | 1.05 | 353 (36.0) | 1.23 | 334 (34.1) | 1.4 | 307 (31.3) | 1.71 | 287(29.3) | 2 | 271(27.7) | 2.27 | 931 (95) | 1666 (170) | 3332 (340) | 70 | 1029 (105) | 2058 (210) | 1 | 108 (11) | 10 | 3.75x10-5 | 9.3 |
| 80.2 | 79.2 | 2.40x10-5 |
| 93.89 | 92.89 | 1.72x10-5 |
| 111 | 110 | 1.43x10-5 |
| 133 | 132 | 1.03x10-5 |
| 163 | 162 |
|
| JHRV-80E | 59.67 | 58.67 | 1088 (111) | 0.07 | 885 (90.3) | 1.24 | 784 (80.0) | 1.64 | 719 (73.4) | 2.01 | 672 (68.6) | 2.35 | 637 (65.0) | 2.67 | 584(59.6) | 3.26 | 546(55.7) | 3.81 | 517(52.8) | 4.33 | 1176 (120) | Bolt Fastening 2156(220) Pin gear 1735(177) | Bolt Fastening 4312(440) Pin gear 2156(220) | 70 | 1950 (200) | Bolt Fastening 3920(400) Pin gear 3185(325) | 1 | 196 (20) | 10 | 8.28x10-5 | Bolt Fastening 13.1 Pin gear 12.7 |
| 80.2 | 79.2 | 6.65x10-5 |
| 111 | 110 | 4.40x10-5 |
| 133 | 132 | 3.53x10-5 |
| 162.33 | 161.33 | 2.63x10-5 |
|
|
|
| JHRV-110E | 75.8 | 74.8 | 1499 (153) | 1.05 | 1215 (124) | 1.7 | 1078(110) | 2.26 | 990(101) | 2.76 | 925 (94.4) | 3.23 | 875 (89.3) | 0.07 | 804(82.0) | 4.49 |
|
|
|
| 1470 (150) | 2940 (300) | 5800 (600) | 50 | 2695 (275) | 5390 (550) | 1 | 294 (30) | 13 | 1.08x10-4 | 17.4 |
| 89 | 88 | 0.73x10-4 |
| 105.5 | 104.5 | 0.45x10-4 |
| 126.71 | 125.71 | 0.40x10-4 |
| 155 | 154 |
|
| 195 | 194 |
|
| JHRV-160E | 76.5 | 75.5 | 2176 (222) | 1.52 | 1774 (181) | 2.48 | 1568(160) | 3.28 | 1441(147) | 4.02 | 1343 (137) | 4.69 | 1274 (130) | 5.34 |
|
|
|
|
|
| 2940 (300) | 3920 (400) | Bolt Fastening 7840(800) Pin gear 6762(690) | 45 | 3920(400) | Bolt Fastening 7840(800) Pin gear 6615(675) | 1 | 392 (40) | 15 | 1.96x10-4 | 26.4 |
| 91 | 90 | 1.51x10-4 |
| 109.57 | 108.57 | 1.11x10-4 |
| 134.33 | 133.33 | 0.90x10-4 |
| 169 | 168 | 0.76x10-4 |
| 187 | 186 |
|
| JHRV-320E | *2(85.44) | *2(84.44) | 4361 (445) | 3.04 | 3538 (361) | 4.94 | 3136(320) | 6.57 | 2881(294) | 8.05 | 2695(275) | 9.41 | 2548 (260) | 10.7 |
|
|
|
|
|
| 4900 (500) | Bolt Fastening 7056(720) Pin gear 6174(630) | Bolt Fastening 14112(1440) Pin gear 10976(1120) | 35 | 7840(800) | Bolt Fastening 15680(1600) Pin gear 12250(1250) | 1 | 980 (100) | 16 | 5.23x10-4 | 26.4 |
| 101 | 100 | 4.00x10-4 |
| 121 | 120 | 3.28x10-4 |
| 126.67 | 125.67 | 2.95x10-4 |
| 2(147.67) | 2(146.67) | 2.63x10-4 |
| 185 | 184 | 2.01x10-4 |
| 194.33 | 193.33 | 1.79x10-4 |
| JHRV-450E | *2(89.89) | *2(88.89) | 6135 (626) | 4.28 | 4978 (508) | 6.95 | 4410(450) | 9.24 | 4047(413) | 11.3 | 3783(386) | 13.2 |
|
|
|
|
|
|
|
| 7448(760) | 8820(900) | Bolt Fastening 17640(1800) Pin gear 13524(1380) | 25 | 11025(1125) | Bolt Fastening 22050(2250) Pin gear 18620(1900) | 1 | 1176(120) | 18 | 8.93x10-4 | 66.4 |
| 106 | 105 | 6.95x10-4 |
| 126.71 | 125.71 | 5.75x10-4 |
| 154.33 | 153.33 | 5.18x10-4 |
| 193 | 192 | 4.08x10-4 |
| 201 | 200 | 3.58x10-4 |
|
| 3.03x10-4 |
