Product Specifications
| Prod Model: |
HR-150DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Rockwell Hardness Tester with Motor Control Loadin |
| Total Test Force: |
588n(60kgf),980n(100kgf),1470n(150kgf) |
| Total Test Force Dwell Time: |
2-60s |
| Preliminary Test Force: |
98n (10kgf) |
| Hardness Indication: |
Dial |
| Type: |
Rockwell Hardness Tester |
| Application: |
Metal |
| Standard: |
ASTM |
| Measuring Range: |
Hra,Hrb,HRC. |
Product Description

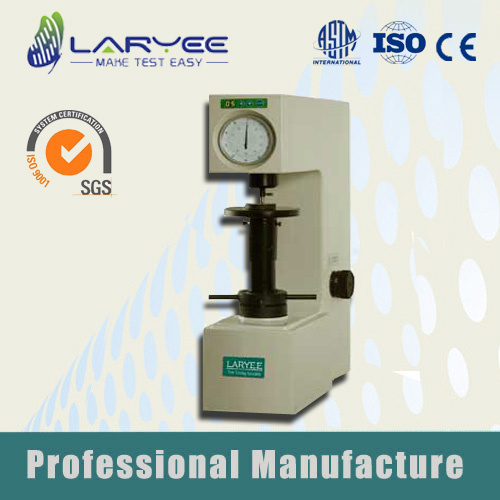

Model HR-150DT is Rockwell test with scales A-B-C (60/100/150kgf ) with dial indicator and motor control loading.
Rockwell hardness test is a simple instrument to test the hardness value of hard metals, carburized steels, quenched steels, hard cast irons, mild steels, Al-alloys, Cu-alloys and malleable irons according to Rockwell Principle according to ISO 6508 and ASTM E18. It measure the depth difference between the primary and testing load and convert the depth difference to the hardness value. These machines can be operated semi-automatically. They are essential testing instruments for quality testing section, university and college, research institution and industrial laboratory.
Specification
Preliminary test force: 98N (10Kgf)
Total test force: 588N(60Kgf), 980N(100Kgf), 1470N(150Kgf)
Total test force dwell time: 1-30S
Hardness indication: Dial
Max height of specimens: 170 mm
Max width of specimens: 160mm
Dimension (DXWXH): 500mm*150mm*750mm
Net Weight: 85Kg
Power Supply: AC 220V 50/60Hz
