Product Specifications
| Prod Model: |
HQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Country Of Origin: |
China |
| Power: |
According to Requirement |
| Type: |
Pass Through Type Shot Blasting Machine |
| Application: |
Rust Cleaning Machine |
Product Description

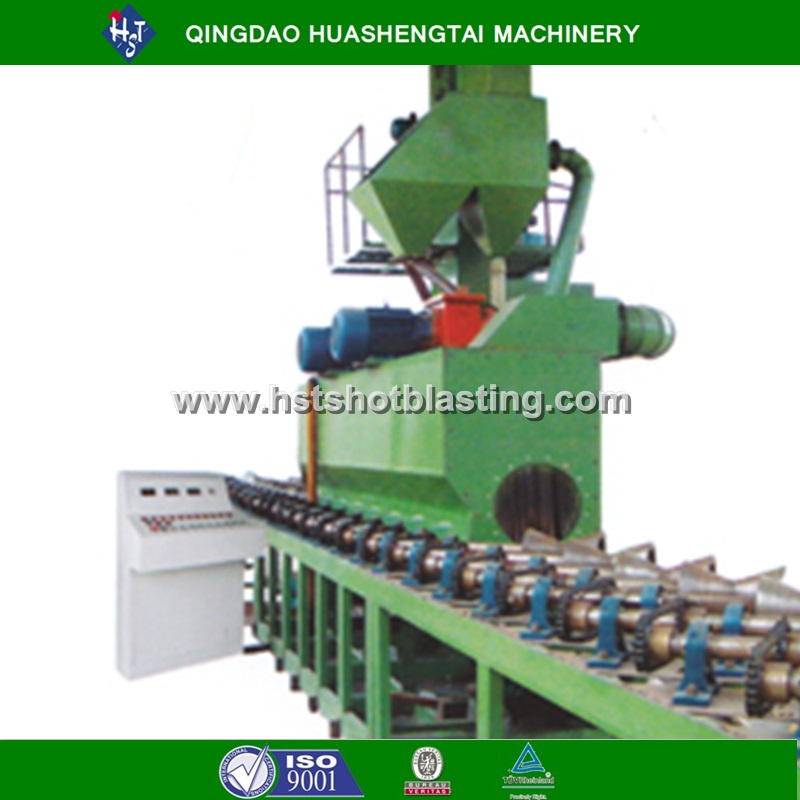

Basic DescriptionRoll pass through type shot blasting machine
This kind of shot blasting machine is suitable for processing large H-beam, Steel structure, etc. to eliminate internal stress, rust and burnish surface of work pieces.
1. Using Japan centrifugal blast wheel technology with a large volume, high velocity projectile significantly improves the cleaning efficiency, can get a satisfactory cleaning quality.
2. Using computer-aided design (CAD) drawing, selection and arrangement of blasters is more reasonable. Improve the projectile utilization and labor productivity,
ensure the cleaning effect, reduce the attrition for the chamber body guards.

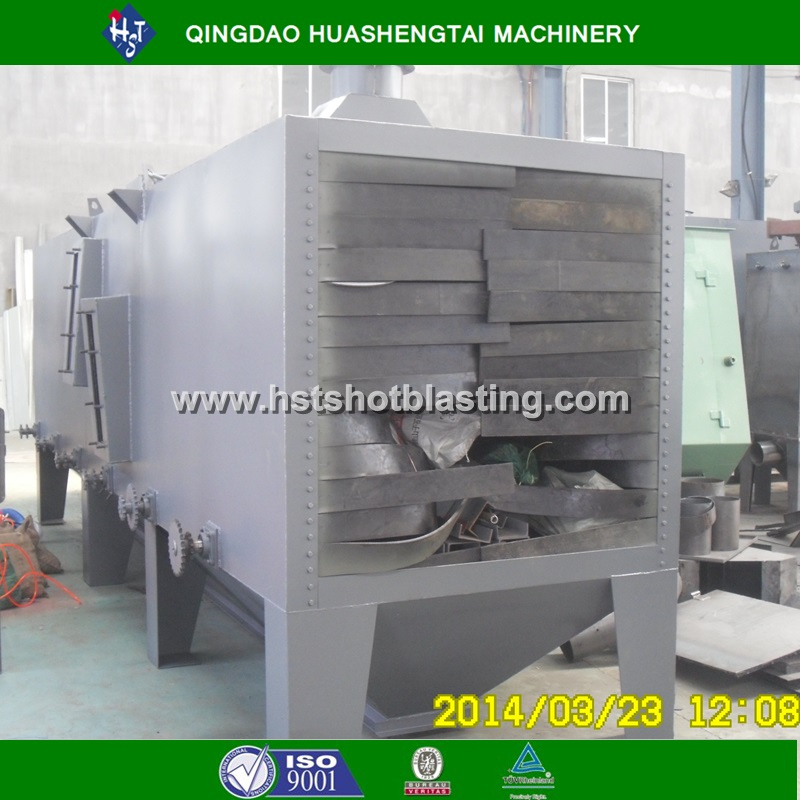

3. Using rolled steel plate Mn13 in chamber body, easy replacement and long lifespan.
4. Splitter used by BE full curtain separator technology of the U.S. Panbang En company, have good separation.
5. Projectile control system using our homemade gas control valve control, simple and reliable.

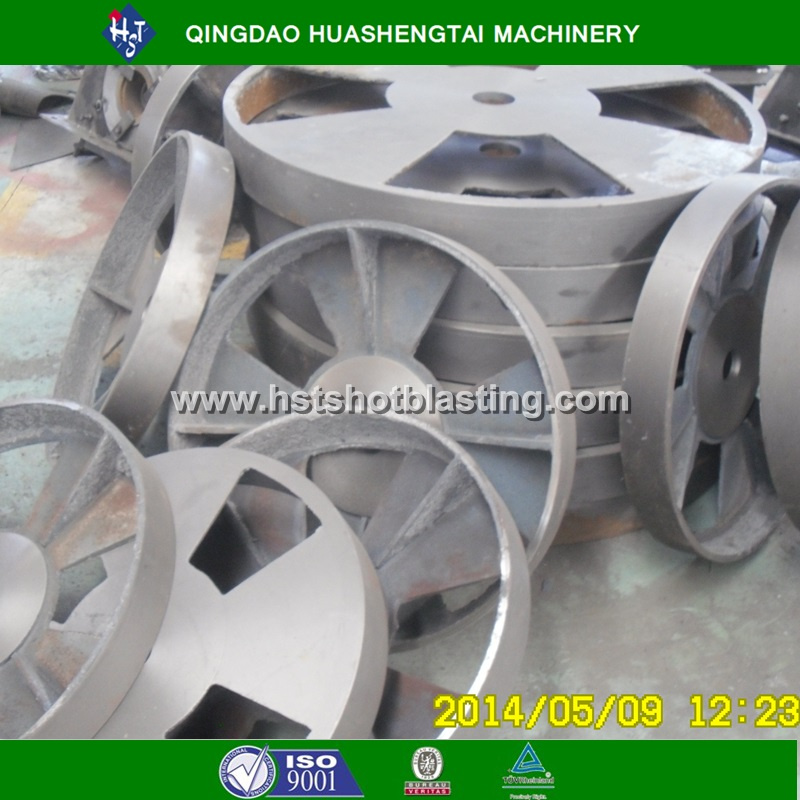

Our shot blasting spare parts are high quality.Blaster can reach uttermost long-life , environmental protection, high efficiency in service. The material, durability:
name |
Material |
Life |
blades |
High chromium Precision casting |
≥800h |
control cage,distributor |
High chromium Precision casting |
≥1000h |
protection plate |
High chromium |
≥1500h |
side plate |
High chromium |
≥2500h |
impeller |
40Crquenching |
≥2500h |
Parameters
Model |
HQ698 |
HQ6910 |
HQ6912 |
HQ6915 |
HQ6920 |
HQ6925 |
HQ6930 |
HQ6940 |
The effective cleaning width(mm) |
800 |
1000 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
The room feed-in size(mm) |
800*1600 |
1000*1600 |
1200*400 |
1500*400 |
2000*400 |
2500*600 |
3000*600 |
4000*400 |
The length of cleaning workpiece(mm) |
1200-12000 |
1200-12000 |
1200-6000 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
4500-18000 |
The speed of wheel conveyor(m/min) |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
The thickness of cleaning steel sheet (mm) |
3-60 |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-110 |
Steel specification (mm) |
700*1500 |
900*1500 |
1200*300 |
1500*300 |
2000*300 |
2500*500 |
3000*500 |
4000*300 |
The quantity of shot blasting (kg/min) |
8*180 |
8*200 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
The first enclosed quantity (kg) |
4000 |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
Roll brush adjusting height (mm) |
200 |
200 |
200 |
350 |
450 |
600 |
850 |
900 |
Air capacity(m3/h) |
22000 |
20000 |
17560 |
19000 |
19550 |
27758 |
28050 |
38000 |
Overall dimension |
|
|
|
|
|
|
|
|
Total power(kw) |
100 |
138 |
78.3 |
113.5 |
156.6 |
204.8 |
224.55 |
293.6 |
Weight(kg) |
|
|
|
|
|
|
|
|
Our Competence
l Technical team support to provide suitable proposal according to customer's requirement;
l Skilled workers and advanced production equipments to ensure high quality products;
l Training programs for operating and maintenance;
l Installation and commissioning of new machine;
l Timely problem solving support with direct line by 24/7;
l Spare parts supply with lowest price for all of supplies equipment.
Contact method
If you want to customize shot blasting machine,could you tell me the answers as follow?
1) What kind of workpiece will you clean?
2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?
4) How many tons will you clean for each month or each day?
5) Do you have any special request for electrical components brand?
After get confirmation from you, our engineer will make the detailed technical parameters for your reference.
Our products are excellent in quality and reasonal in price,so if you are interested in our products,please contact us without any hesitation. I will give you the most competitive price.

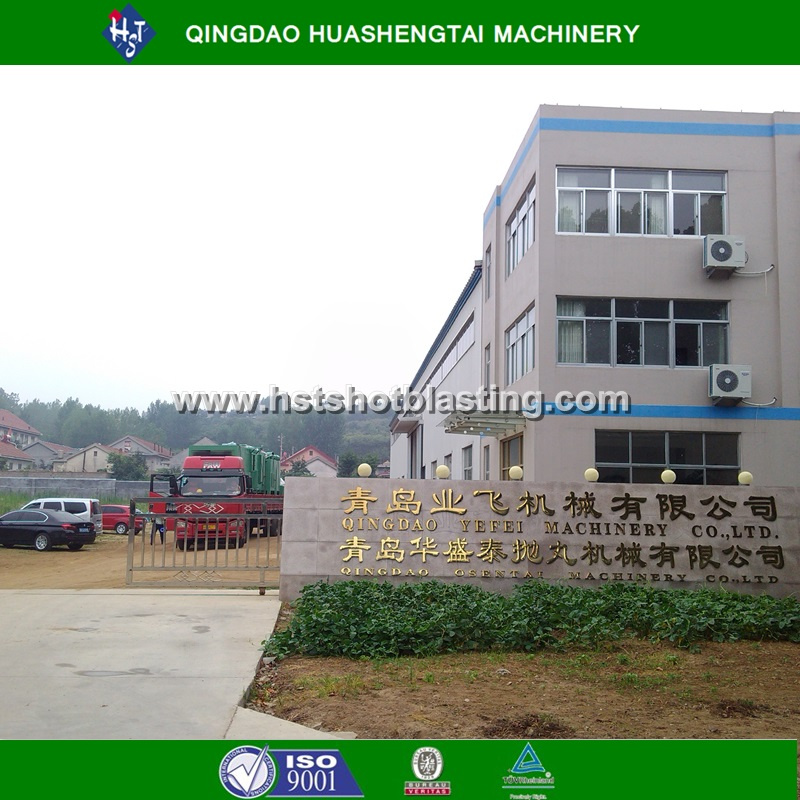

Qingdao Huashenghai Shot Blast Machinery Co., Ltd, locating in the west coast of the beautiful coastal city Qingdao, is an industrialization entity with scientific research, development, production and operating integration. We have engaged in casting machinery for more than 20 years, thereby gain profound cultural background and the technical essence, great research and development ability, advanced production technology, perfect detection means, scientific management system. As the professional manufacturer of casting machinery industry, our technology, quality and automation level is ranking in the advanced level in the same domestic industry.
