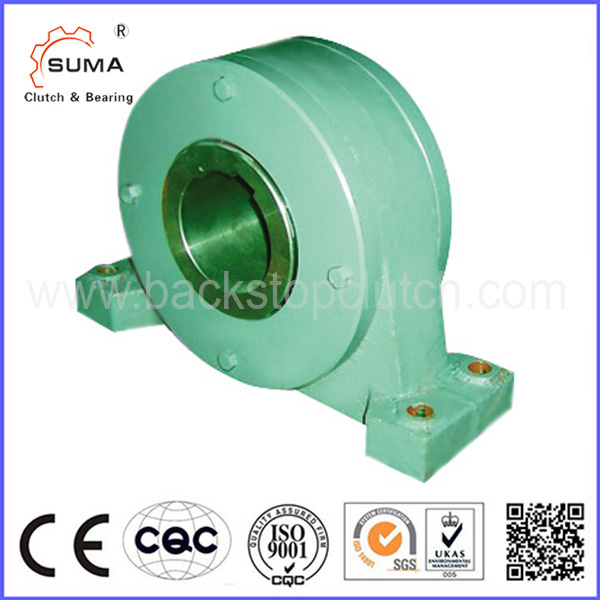

Roller Type Backstop for Reducer and Belt Convey (DTIIN1-9)

Name: Roller Type Backstop for Reducer and Belt Convey (DTIIN1-9)
Brand: china-manufacturer-directory.com
SKU: 755570645
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Product Description
GN series backstop clutch is a kind of low speed of roller type plugging device,often with reducer ,
used in belt conveyor,hoist,electric drum, and other need a non-return device.
Non-return quickly ,small reverse distance,long life ,can withstand the torque.

Type	Torque	Bore Dia. Max.	Size									Weight	Recommended Suitable Reducer
	TKN	ødH7	bxt	C	L	B	C1	B1	H	H1	D1	kg
	N.m	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg
GN110	6770	110	32X6.7	400	450	140	90	140	160	310	ø21	89.4	ZQ650 ZQ750
GN130	13700	130	36X7.4	430	480	170	120	180	175	340		120	ZQ850
GN140	13700	140	36X7.4	430	480	170	120	190	175	340		105	ZQ85
GN150	22800	150	40X8.7	510	580	190	170	230	215	420	ø26	186	ZQ1000
GN170	22800	170	40X8.7	510	580	190	170	250	215	420	ø26	182	ZL100
GN200	47600	200	45X9.9	590	660	220	210	290	275	540	ø32	352	ZL115
GN220	47600	220	50X11.2	590	660	220	210	290	275	540	ø32	339	ZL130

Prod Model:	(DTIIN1-9 )
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Dtiin1-9
Type:	Roller
Torque:	6.77kn.M
Bore Dia. Max.:	90mm
Weight:	92.8kg
Recommended Suitable Reducer:	Dcy200
Delivery:	10-15days
OEM:	Accept
Precision:	P0
Port:	Shanghai;Ningbo

Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.

The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.

We welcome you to visit our website, and do not hesitate to contact us.
