Product Specifications
| Prod Model: |
RM1610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001, ISO14001, Ts16949 |
| Resistance: |
Variable Resistor |
| Type: |
Rotary Potentiometer |
| Installation: |
DIP Resistor |
| Function For Resistance: |
Load Resistor |
| Material: |
Carbon Film Resistor |
| Package Type: |
Throught Hole |
Product Description

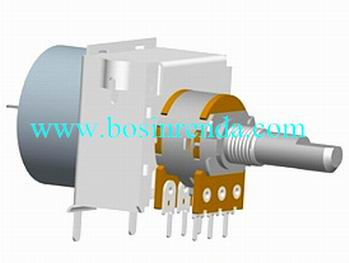

Potentiometer, rotary potentiometers, motorized potentiometers
Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.
Please check below specification.
|
|
1.Mechanical characteristics for motorized potentiometers |
|
|
1.1 Total Rotational Angle: |
300°±10° |
|
|
1.2 Rotational Torque: |
30~350 gf.cm |
|
|
1.3 Stopper Strength: |
6.0Kgf.cm Max |
|
|
1.4 Push-Pull Strength: |
Pull: 8Kgf Max; Push: 8Kgf Max |
|
|
1.5 Switch Torque: |
4kgf.cm Min. |
|
|
1.6 Rotational speed: |
11±3 sec./300°(4.5V DC MOTOR) |
|
|
2.Electrical characteristics |
|
|
2.1 Total Resistance: |
2KΩ~470KΩ |
|
|
2.2 Resistance Tolerance: |
±20% |
|
|
2.3 Resistance Taper: |
A,B |
|
|
2.4 Max. operating Voltage: |
B Taper 200V, other taper 150V |
|
|
2.5 Rated Power: |
0.2W /0.1W |
|
|
2.6 Rotational Noise: |
47 MV Max |
|
|
2.7 Insulation Resistance: |
More Than 100MΩ at DC 250V |
|
|
2.8 Withstand Voltage: |
1 minute at AC 250V/DC 100V |
|
|
2.9 Residual Resistance: |
20Ω Max |
|
|
3.0 Gang error: |
40db~0db±3db |
|
|
3.Durability |
|
|
3.1 Rotational Life: |
10,000 Cycles Min. |
|
|
3.2 Working Temperature: |
-10°C~70°C |
|
|
3.3 Storage Temperature: |
-30°C~70°C |
After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.
The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
