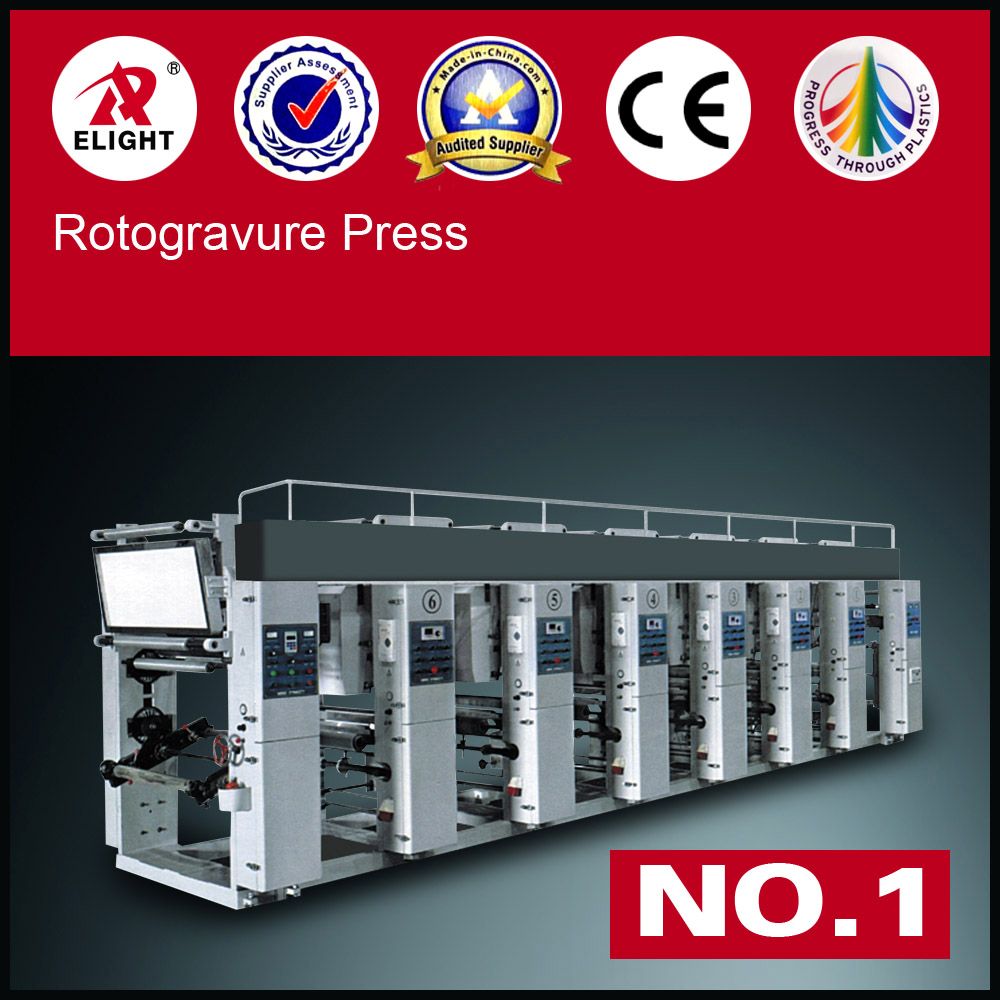

Rotogravure Printing Machine
| Price: |
US $ 3000-4000/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
XYAY-6600/D6800/D61000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Screw |
| Lubrication Style: |
Lubricated |
Product Description
Characteristics:

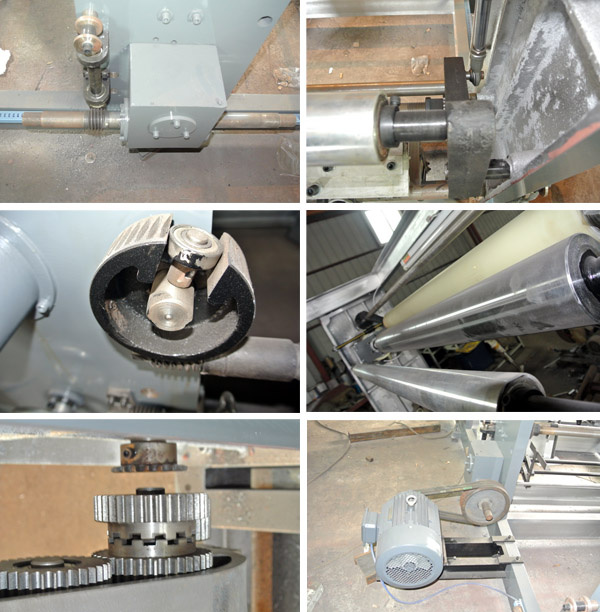

This latest improved gear box, 360non-stopping registration device; Pneumatic doctor blade, transverse reciprocating motion; Closed type oven, automatic constant temperature system; Side and up double drying oven system; Unwinding and in feeding equipped with auto tension controller and magnetic powder brack; Rewinding and out feeding adopt magnetic powder clutch to control the tension; Turret type unwinding and rewinding machanism, receiving and erplacing material without stopping the machine; Inflatable air shaft for unwinding/rewinding material loading; Printing linear speed and meter indication; Pneumatic printing impress roller and traction impress roller; Pneumatic nip roller for in feeding and out feeding; Main motor: Electromagnetic speed regulation motor.
Installation Service:
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After Sales Service:
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
|
Model |
XYAY-D6600 |
XYAY-D6800 |
XYAY-D61000 |
|
Effective Printing Width |
600mm |
800mm |
1000mm |
|
Max.width of web |
620mm |
820mm |
1020mm |
|
Max.printing speed |
80m/min |
80m/min |
80m/min |
|
Max.machanical speed |
100m/min
|
100m/min
|
100m/min
|
|
Max.Diameter of Unwind/rewind |
600mm |
600mm |
600mm |
|
Inside Diameter of roiicore |
76mm |
76mm |
76mm |
|
Diameter of printing cylinder |
120-320mm |
120-320mm |
120-320mm |
|
Accuracy of registration |
±0.2mm |
±0.2mm |
±0.2mm |
|
Tension Control Range |
3-25kg/Full Width |
3-25kg/Full Width |
3-25kg/Full Width |
|
Heating Power of Oven |
28.8KW |
36kw |
43.2kw |
|
Total Power |
38.6KW |
47.5kw |
56.6kw |
|
Weight Of Machine |
8500kg |
9500kg |
10500kg |
|
Overall Dimension |
9300x2300x2300mm |
9300x2500x2300mm |
9300x2700x2300mm |
XINYE, as it may be, A Level Industry & Trading Co., Ltd has a senior team, consisting of professionals engaged in this line for 20 years, and striving to offer the exceptional service to our clients who are located in 5 continents, more than 60 countries. Our products have gained ISO9000, CE certificates.
Major products:
1) bag making machine which can produce as following:
Soft loop handle bags, carry bags, patch bags, string-draw bags, envelope bags, pillow bags, PVC shrinkable bags, arc-shaped bags, flat bags, vest bags( t-shirt bags), bubble bags, rolling vest &flat bags, garbage bags, disposable glove.
2)Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine, High Speed Film Blowing Machine Unit; 2 and 3 layer co-extrusion film blowing machines
4) Others: Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine., Grinder.
We are willing sincerely to execute extensive technical exchange and cooperation with users both at domestic and overseas, as well as supply the best productions and services to them.
