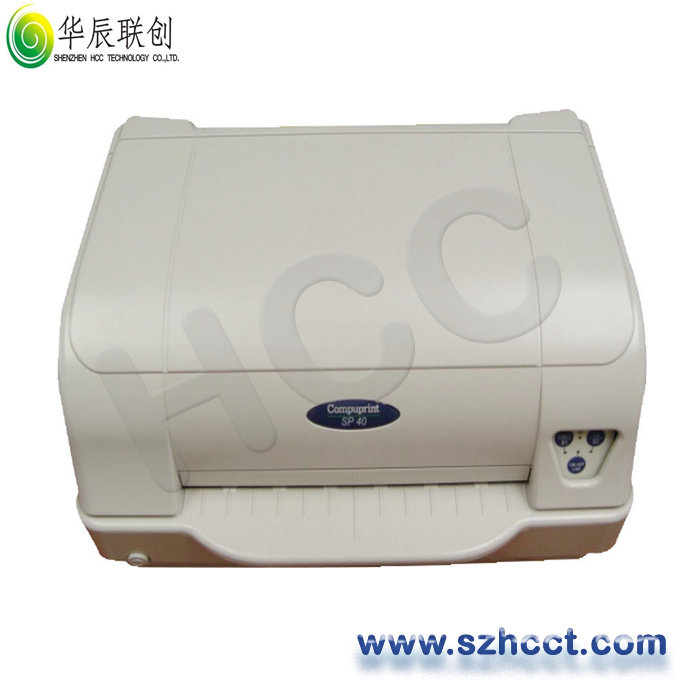

RS-232 DOT matrix bank passbook printer--SP-40/S10/S12
Product features:
Printing technology: Serial DOT matrix impact printer, bi-directional logical seeking.
Print head: 24-pin.
Paper handling: Automatic Gap Adjustment (AGA), Auto Alignment, Auto Border Recognition, Horizontal and Vertical Passbook Handling.
Interface: Parallel IEEE 1284 bidirectional, Serial RS-232 C, USB Plug&Play (Windows environments).
Automatic set-up (automatic recognition of marked values).
Ribbon life: Around 6 million characters.
Maximum printing thickness: 2.2 mm.
Printing speed: Draft: 213 Chinese CPS, letter: 97 Chinese CPS; ASCII draft: 400 CPS, letter: 133 CPS
Paper feeding speed: 12 IPS.
Line feeding time: 65ms (5 IPS 6 LPI).
Firmware upgrading: Download through parallel port.
Options: Magnetic Stripe Reader / Writer, MICR reader.
Printing technology | Serial dot matrix impact printer, bi-directional logical seeking |
Print head | 24-pin |
Paper handling | Automatic Gap Adjustment (AGA), Auto Alignment, Auto Border Recognition Horizontal and Vertical Passbook Handling. |
Interface | Parallel IEEE 1284 bidirectional, Serial RS-232 C, USB Plug&Play (Windows environments) |
Ribbon life | Around 6 million characters |
Maximum printing thickness | 2.2 mm. |
Copies | Original + 5 copies |
Printing speed | Draft: 213 Chinese CPS, letter: 97 Chinese CPS; ASCII draft: 400 CPS, letter: 133 CPS |
Paper feeding speed | 12 IPS |
Line feeding time | 65 ms (5 IPS @ 6 LPI) |
Firmware upgrading | Download through parallel port |
Options | Magnetic Stripe Reader / Writer, MICR reader |
Automatic set-up (automatic recognition of marked values) |
