RS Series Line Striping Two Component Road Marking Machine
| Price: |
US $ 3000-20000Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ROADSKY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
RS12/13/14/15 |
| Marking Width: |
50-500 Mm |
| Working Pressure: |
10~15 MPa |
| Max Flow Rate: |
7 L/Min |
| Marking Type: |
Spraying/ Screeding |
| Spray Gun: |
Single/Double |
| Engine: |
5.5HP/13HP Honda Engine |
| Speed Of Spraying: |
1-2 Km/H |
| Operation: |
Easy Operation |
| Advantage: |
Factory Direct Sale |
| Type: |
Marking Vehicle |
| Certification: |
CE |
| Condition: |
New |
| Marking Vehicle Type: |
Cold Airless |
| Moving Type: |
Hand Push/Self Propelled |
Product Description

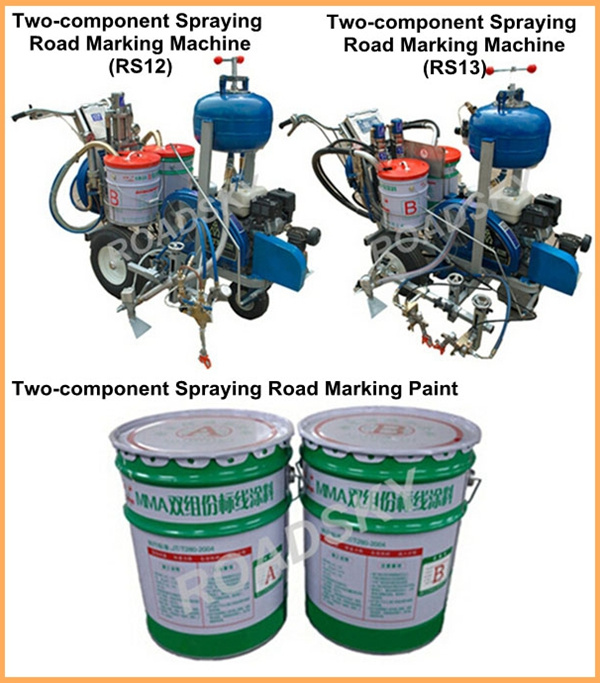

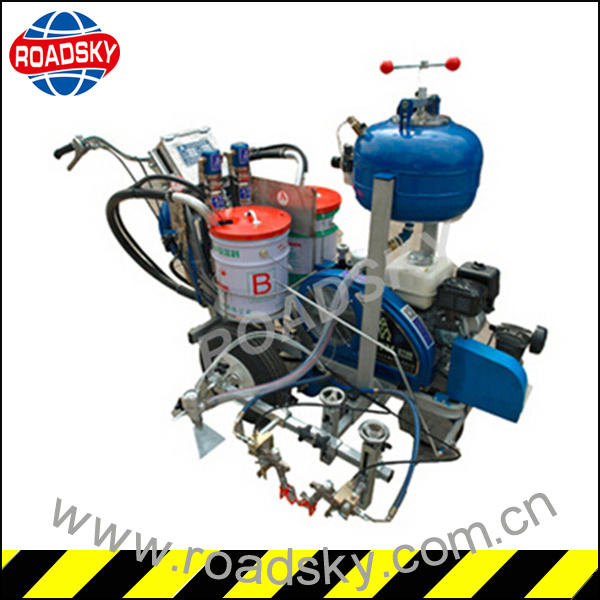

RS Series Line Striping Two Component Road Marking Machine1.Two-component Spraying Road Marking Machine a.RS12/13Two-component Spraying Road Marking Machine (Internal/ External Mixing)RS12 is equipped with high pressure diaphragm pump as its spray pump. The air pump and two high pressure diaphragm pumps are driven by gasoline engine through belt driving.RS13 can fully meet the normal road marking demand, as well as two-component marking and dual color line marking. It adopts the principle of double pump internal mixing, which has the reasonable structure and simple operation.Technical Specifications| Model | RS12 (internal mixing) | RS13 (external mixing) |
| Size | 1800×900×1300 mm | 1900×1000×1400 mm |
| Weight | 170 kg | 190 kg |
| Marking Width | 50-500 mm |
| Working Pressure | 10~15 Mpa |
| Max. Flow Rate | 7 L/Min |
b.Two-component Spraying Road Marking PaintIts presence has solved the problems that the cold lines are weak in wear resistance, the thermoplastic lines are easy to be stained and of poor reflective effect.

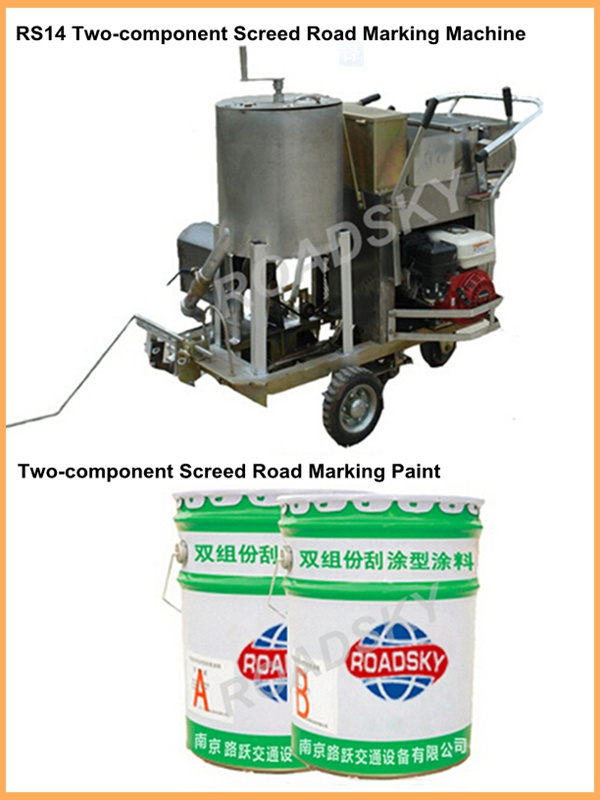

2.Two-component Screed Road Marking Machinea.RS14 Two-component Screed Road Marking MachineTwo-component Screed Road Marking Machine is a new road marking machine with good performance and long service life, equipped with two-component paint.Technical Specifications| Engine | 5.5 HP Honda Engine |
| Paint Tank Capacity | 100 kg |
| Solidifying Agent Tank Capacity | 15 kg |
| Marking Device | Manual Screed Dies |
| Standard Dies | 150/200 mm |
| Optional Dies | 300/400/450 mm |
| L*W*H | 1300*900*1200 mm |
| Weight | 158 kg |
b.Two-component Screed Road Marking PaintTwo-component Screed Road Marking Paint is a large molecular polymer of network structure, formed by low molecular acrylic polymer and evocating agent. The coating is full, hard, with good stain resistance, wear resistance and good reflective effect etc.

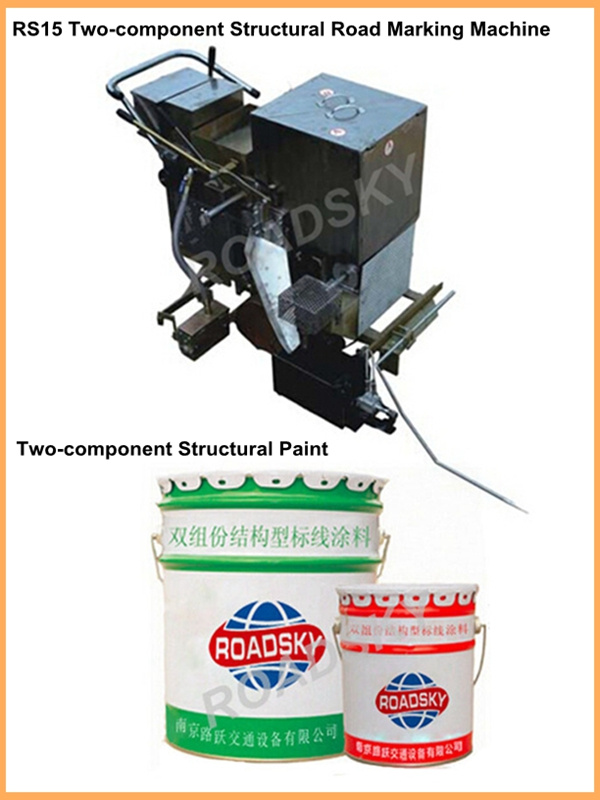

3.Two-component Structural Road Marking Machinea.RS15 Two-component Structural Road Marking MachineIt is equipped with A and B paint tanks. A and B paints flow into the dies with mixing device synchronously by setting the proportion. It adopts centrifugal roller spraying principle, through high-speed rotation of mace and forms the centrifugal force, which will spray the mixed paint onto the road surface, then form the irregular granular and neat edge functional road lines. Technical Specifications| Engine | Honda 13 HP Engine |
| Speed of Spraying | 1-2 km/h |
| Width of Road Lines | 150,200,300 mm |
| Glass Beads Spraying | Air Spraying |
| Total Weight | 350 kg |
| L*W*H | 1600*900*1300 mm |
b.Two-component Structural Road Marking PaintTwo-component Structural Road Marking Paint has the characteristics of low molecular quantity, good adhesion, high solid content, solvent free, it is environment-friendly product.
